SC-4A Checking Brake Switch Sense

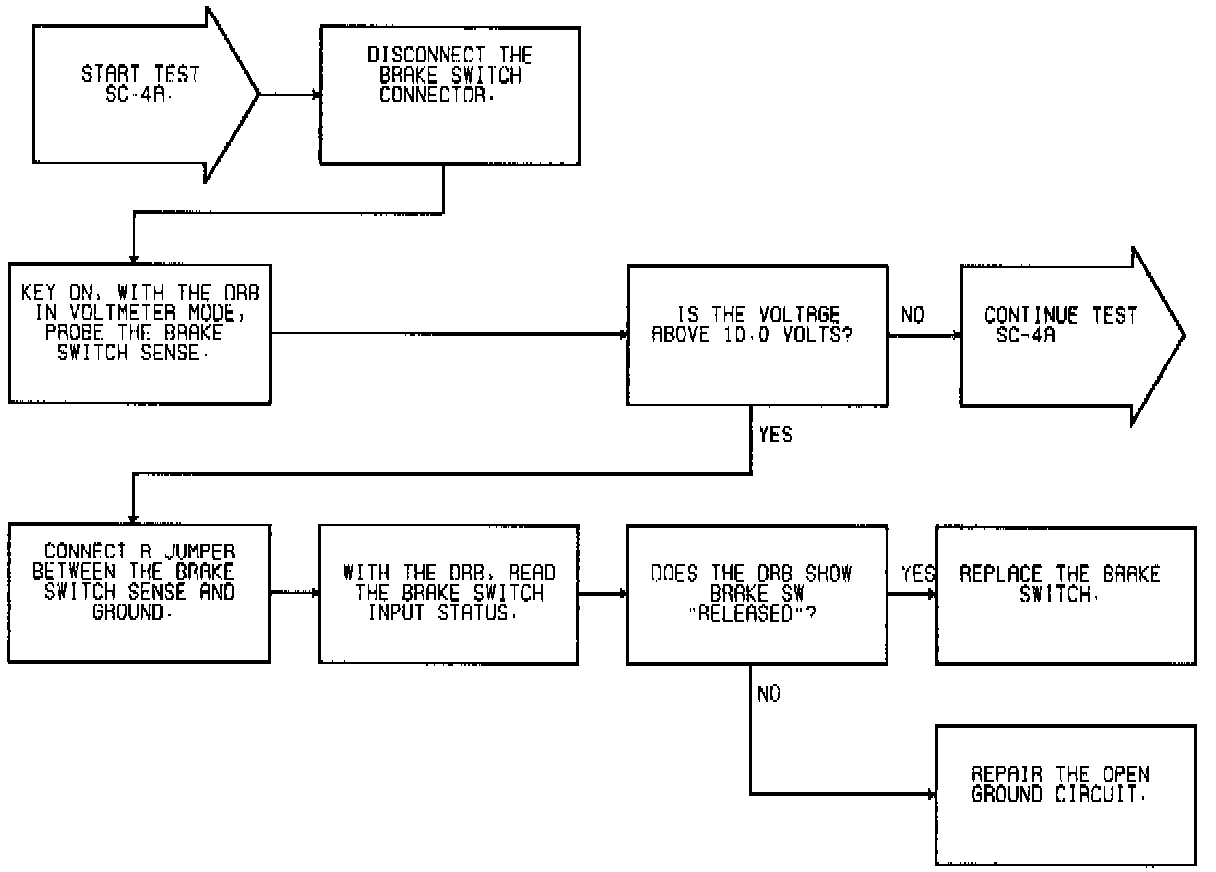

Fig. 19 Test SC-4A: Brake Switch Sense Inspection (Part 1 Of 2):

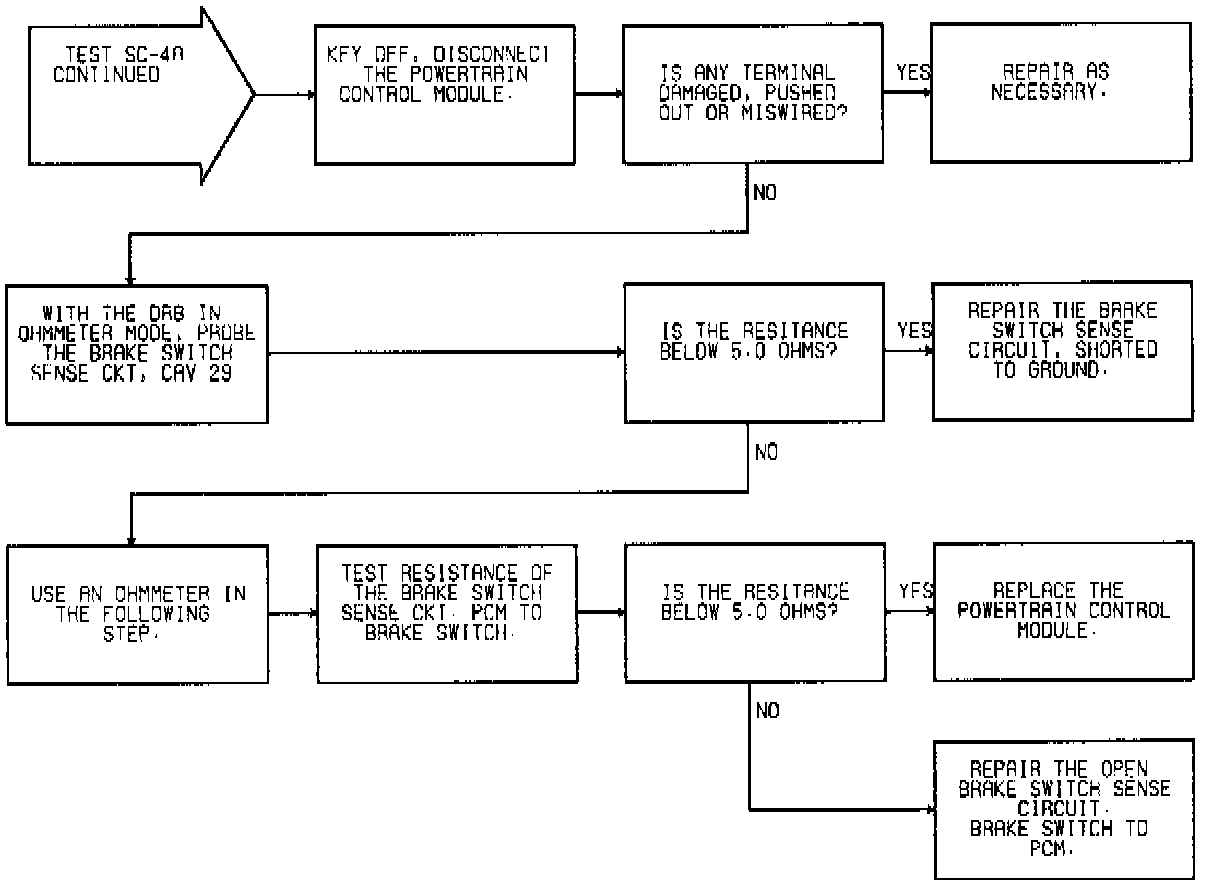

Fig. 19 Test SC-4A: Brake Switch Sense Inspection (Part 2 Of 2):
