Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-3A Checking Speed Control Set/Resume Switch

SC-3A Checking Speed Control Set/Resume Switch

Related Images:



Flow Chart:

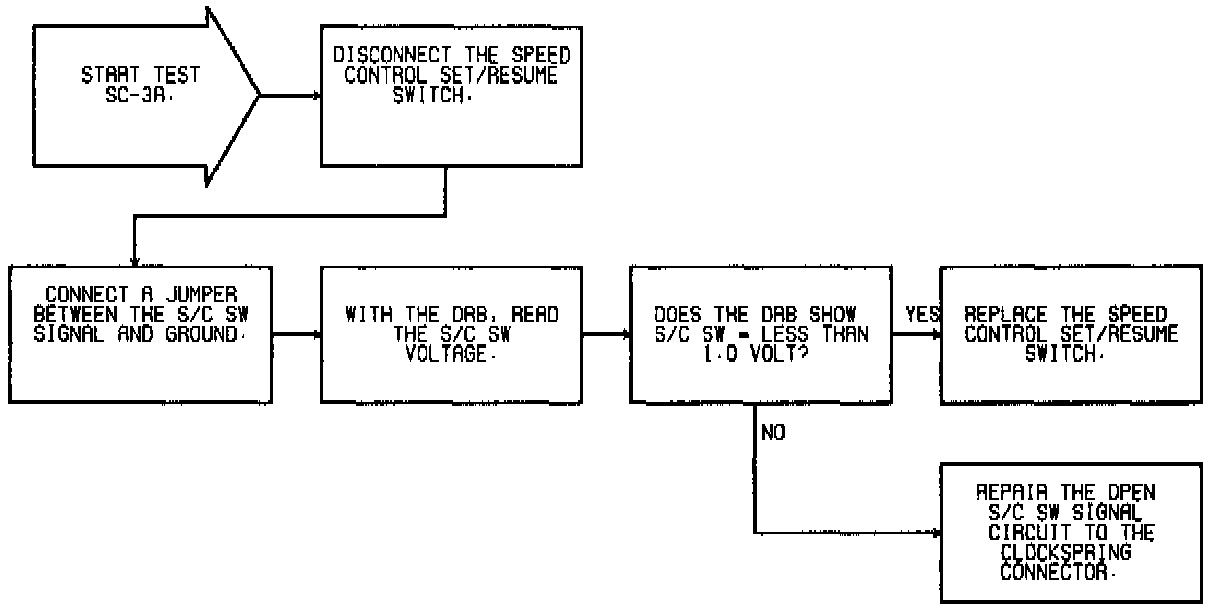

Fig. 18 Test SC-3A: Speed Control Set/Resume Switch Inspection:
