A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-2A Checking Speed Control On/Off Switch
SC-2A Checking Speed Control On/Off Switch

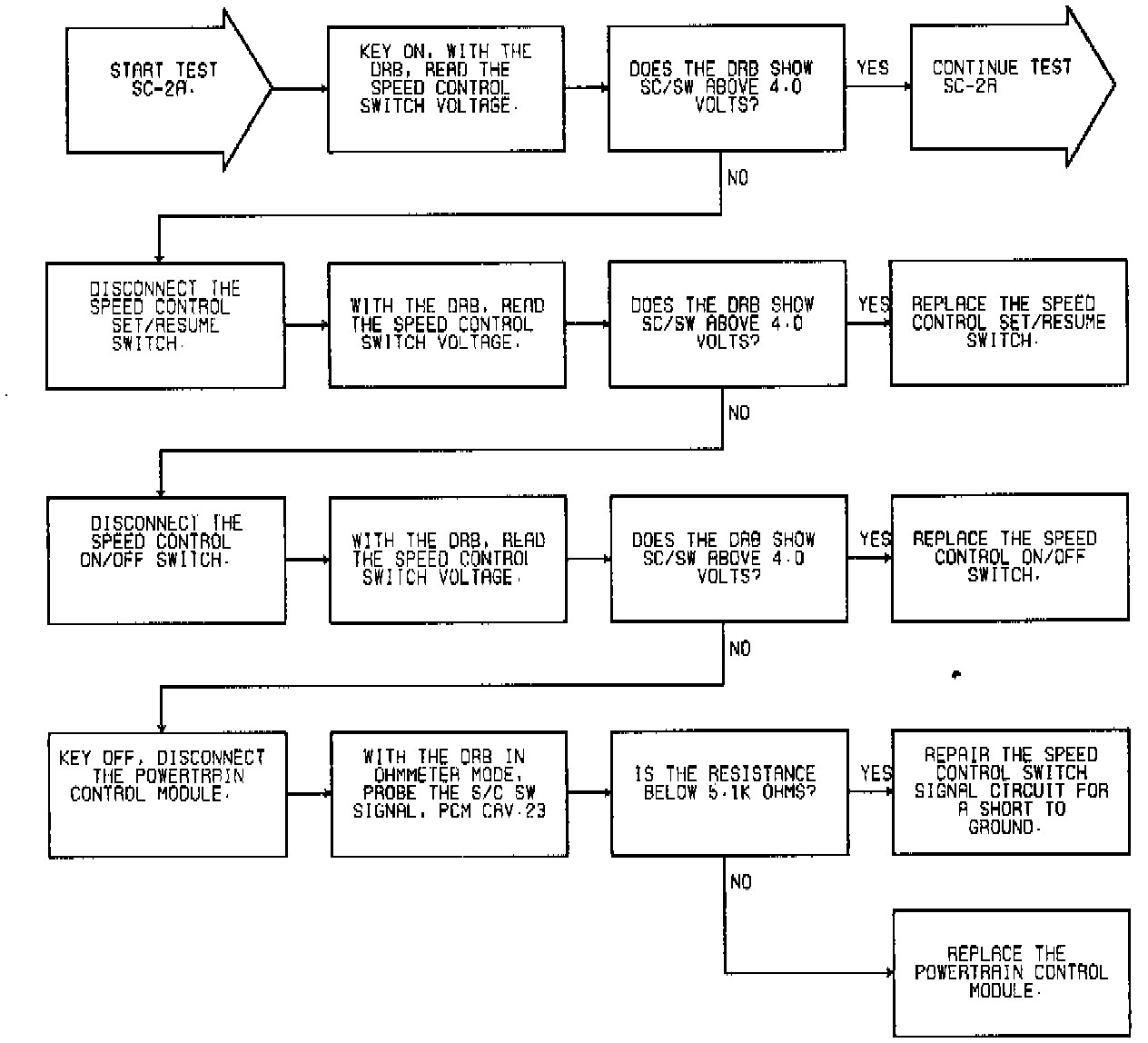

Fig. 17 Test SC-2A: Speed Control On/Off Switch Inspection (Part 1 Of 2):

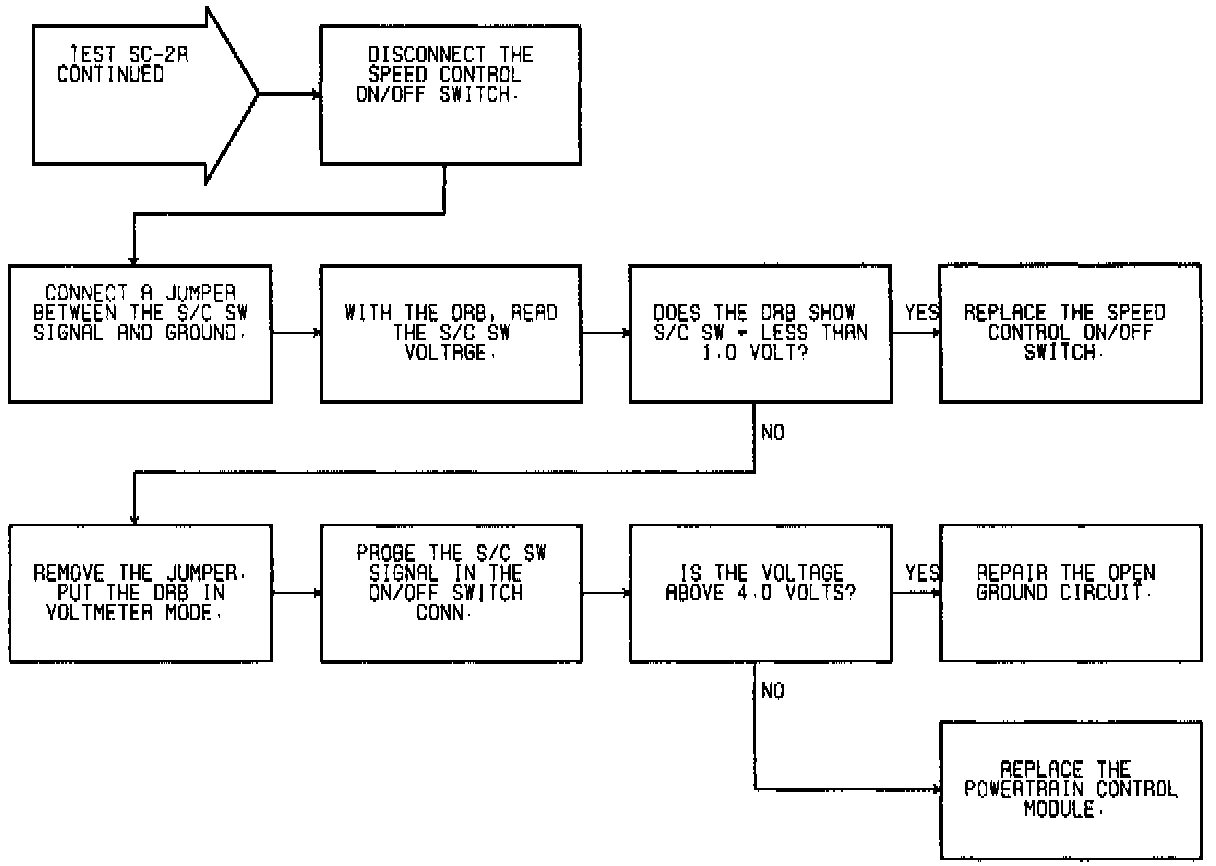

Fig. 17 Test SC-2A: Speed Control On/Off Switch Inspection (Part 2 Of 2):
