SC-1B Speed Control Relay Output Inspection
SC-1B Speed Control Relay Output Inspection

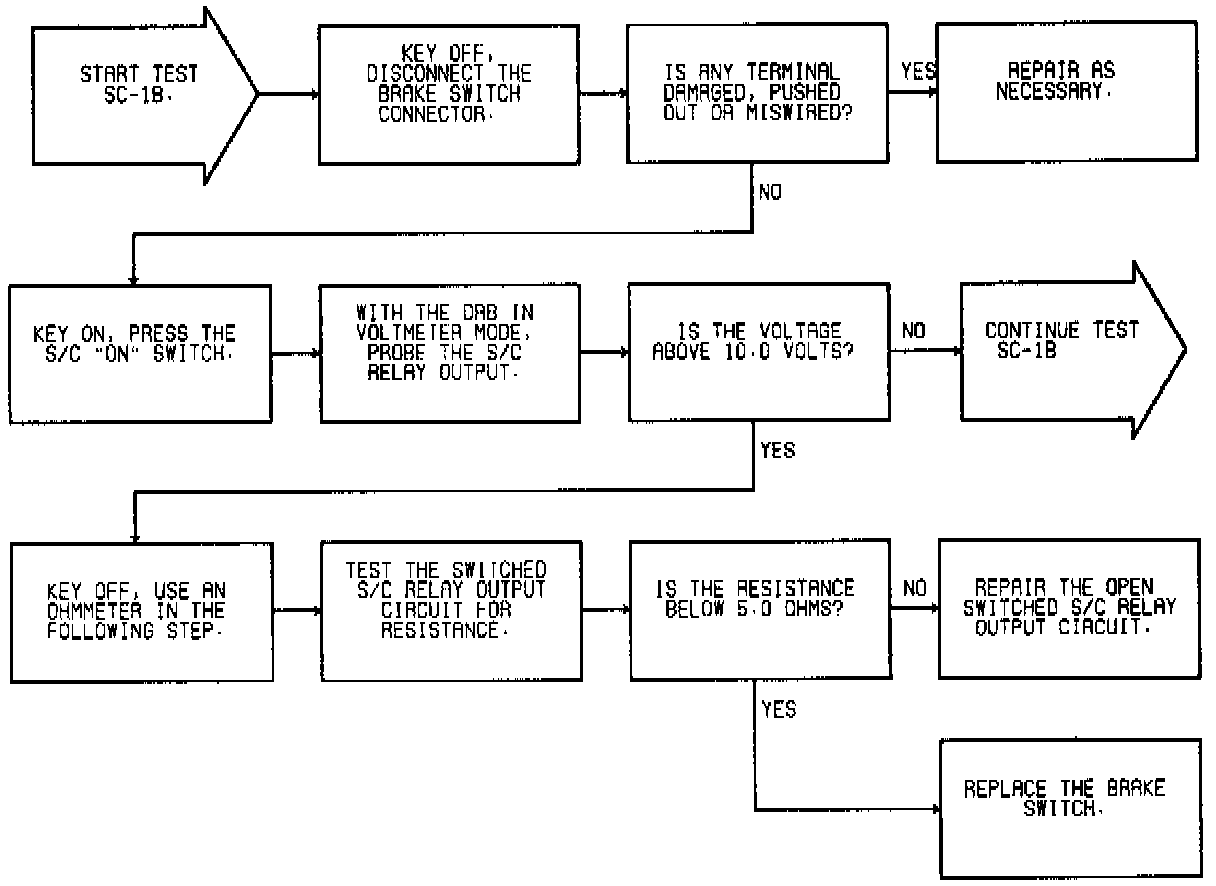

Fig. 16 Test SC-1B: Speed Control Relay Output Inspection (Part 1 Of 2):

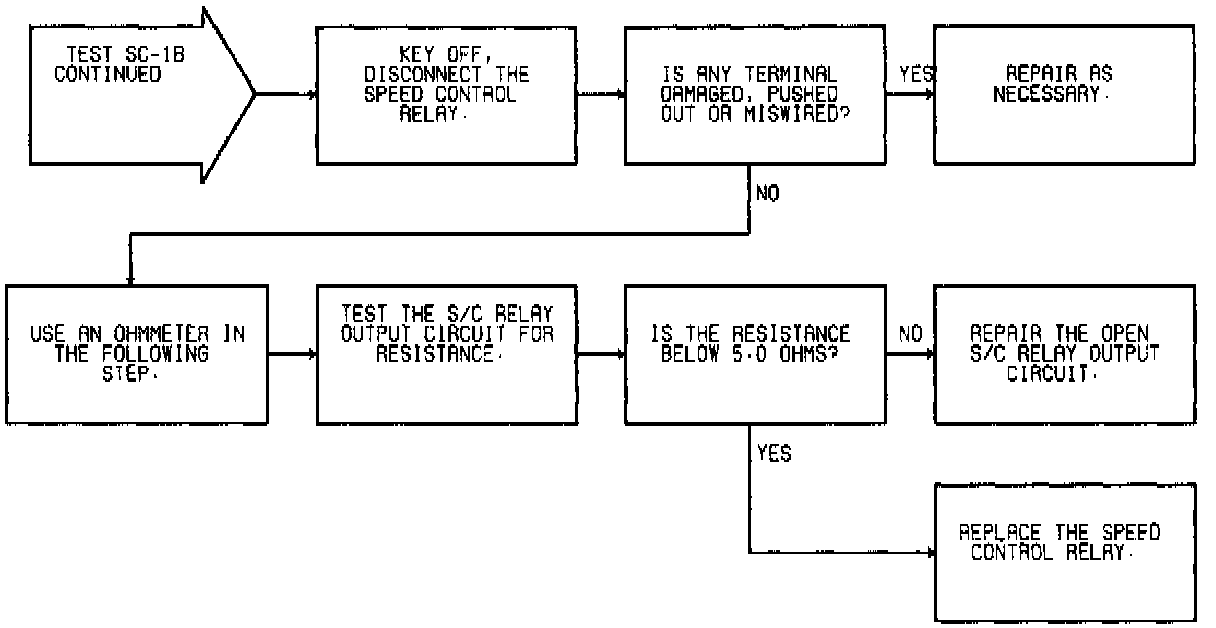

Fig. 16 Test SC-1B: Speed Control Relay Output Inspection (Part 2 Of 2):
