SC-1A Speed Control Relay Output Inspection

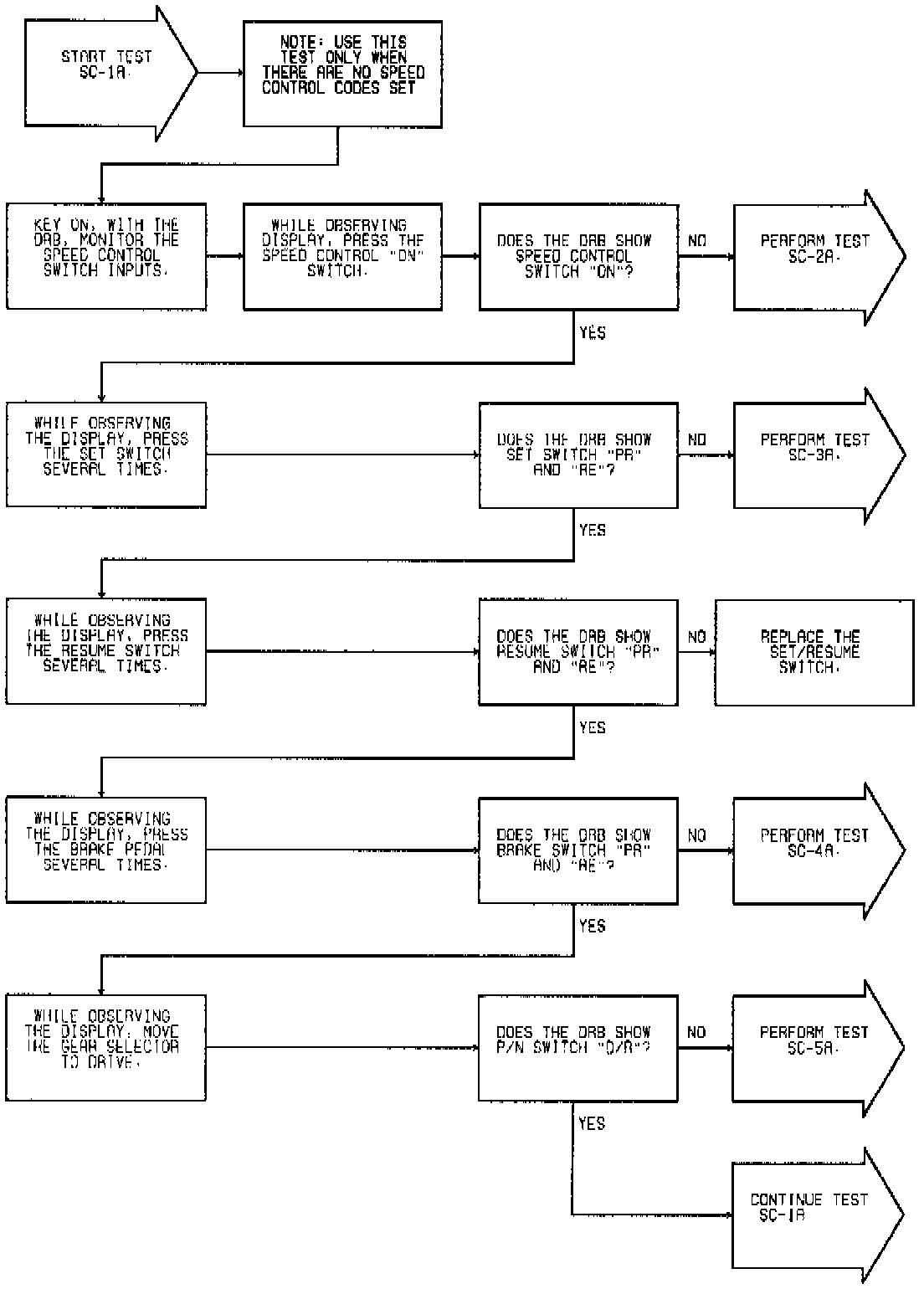

Fig. 15 (Test SC-1A): Speed Control Relay Output Inspection (Part 1 Of 3):

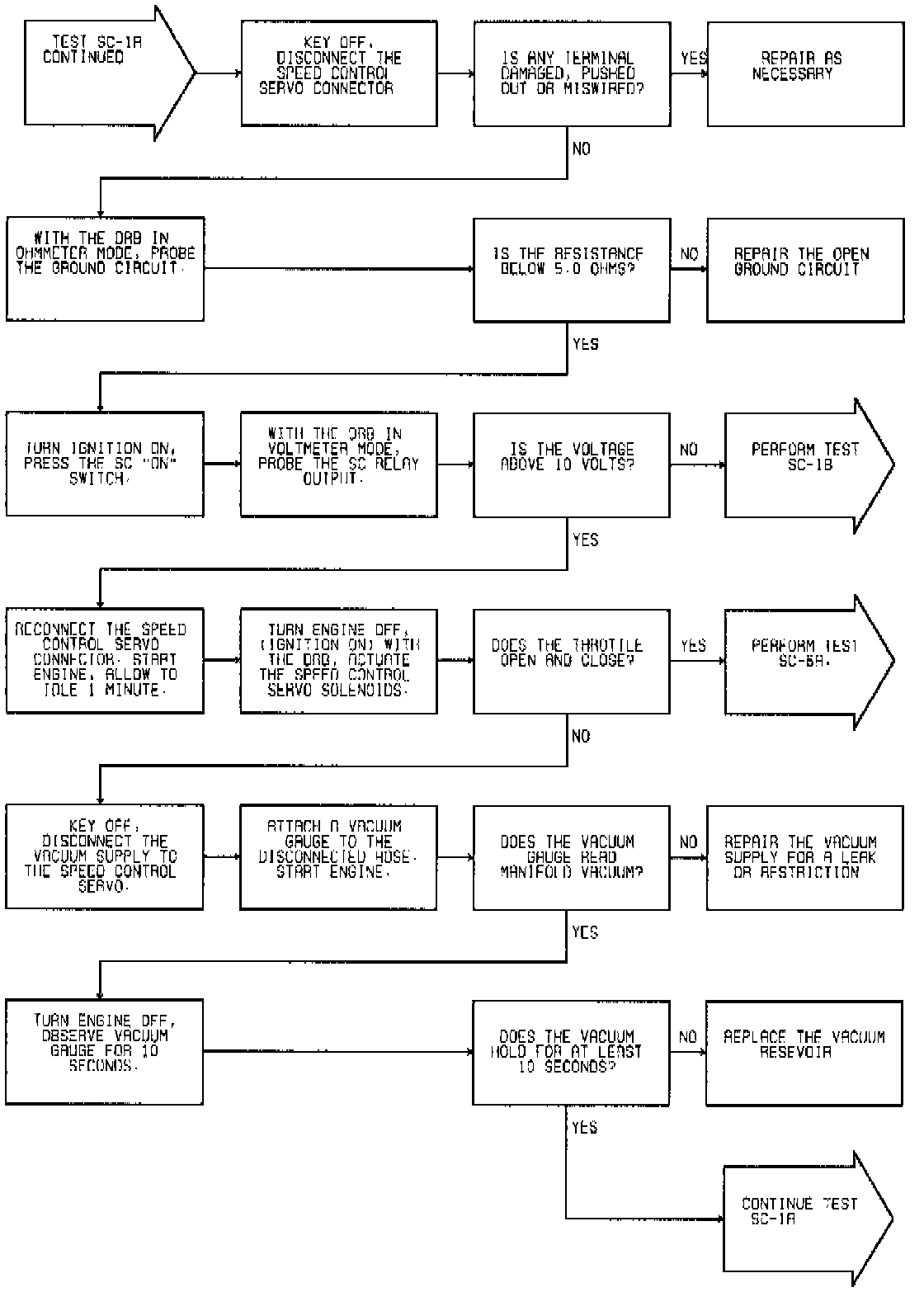

Fig. 15 Test SC-1A: Speed Control Relay Output Inspection (Part 2 Of 3):

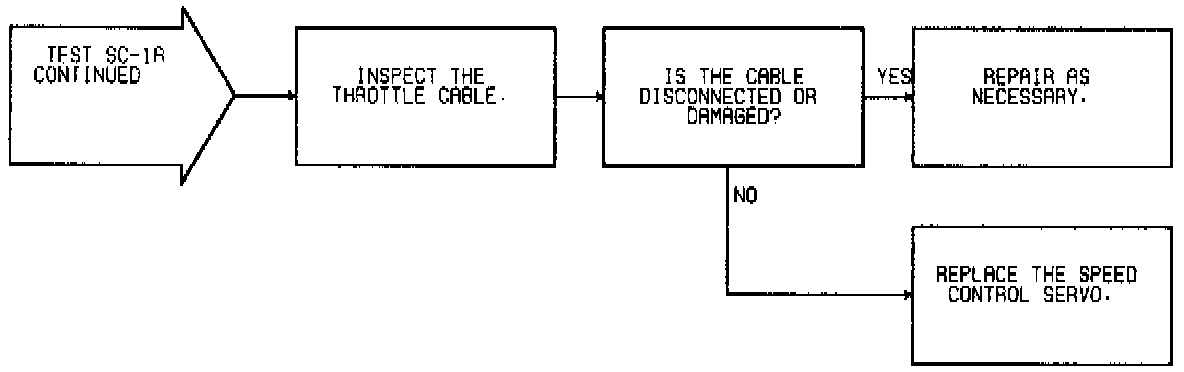

Fig. 15 Test SC-1A: Speed Control Relay Output Inspection (Part 3 Of 3):
