Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 7A - Left Front Outlet Valve Fault

Test 7A - Left Front Outlet Valve Fault

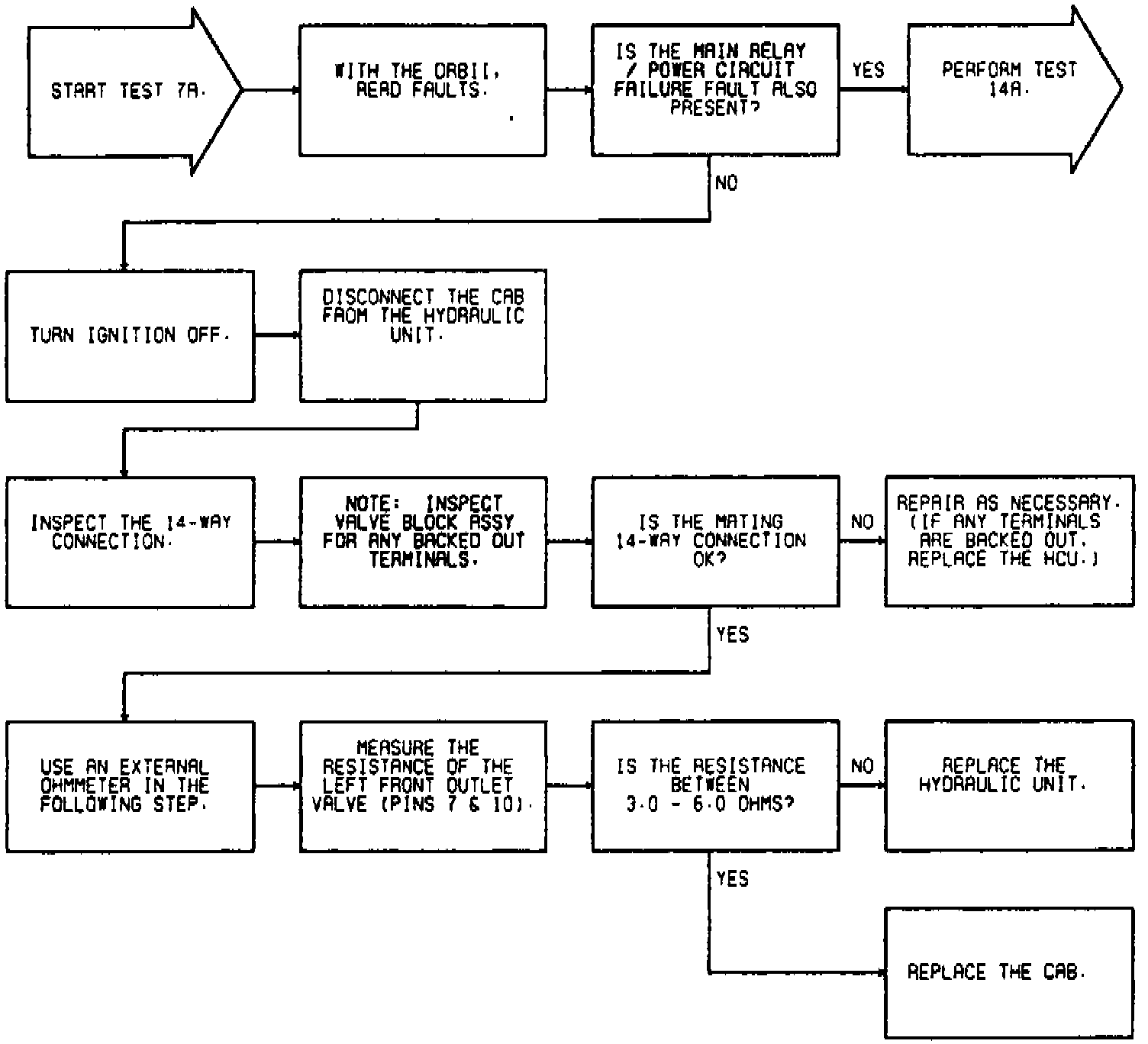

Fig 18 Test 7A: Left Front Outlet Valve Fault:
