Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 6A - Left Front Inlet Valve

Test 6A - Left Front Inlet Valve

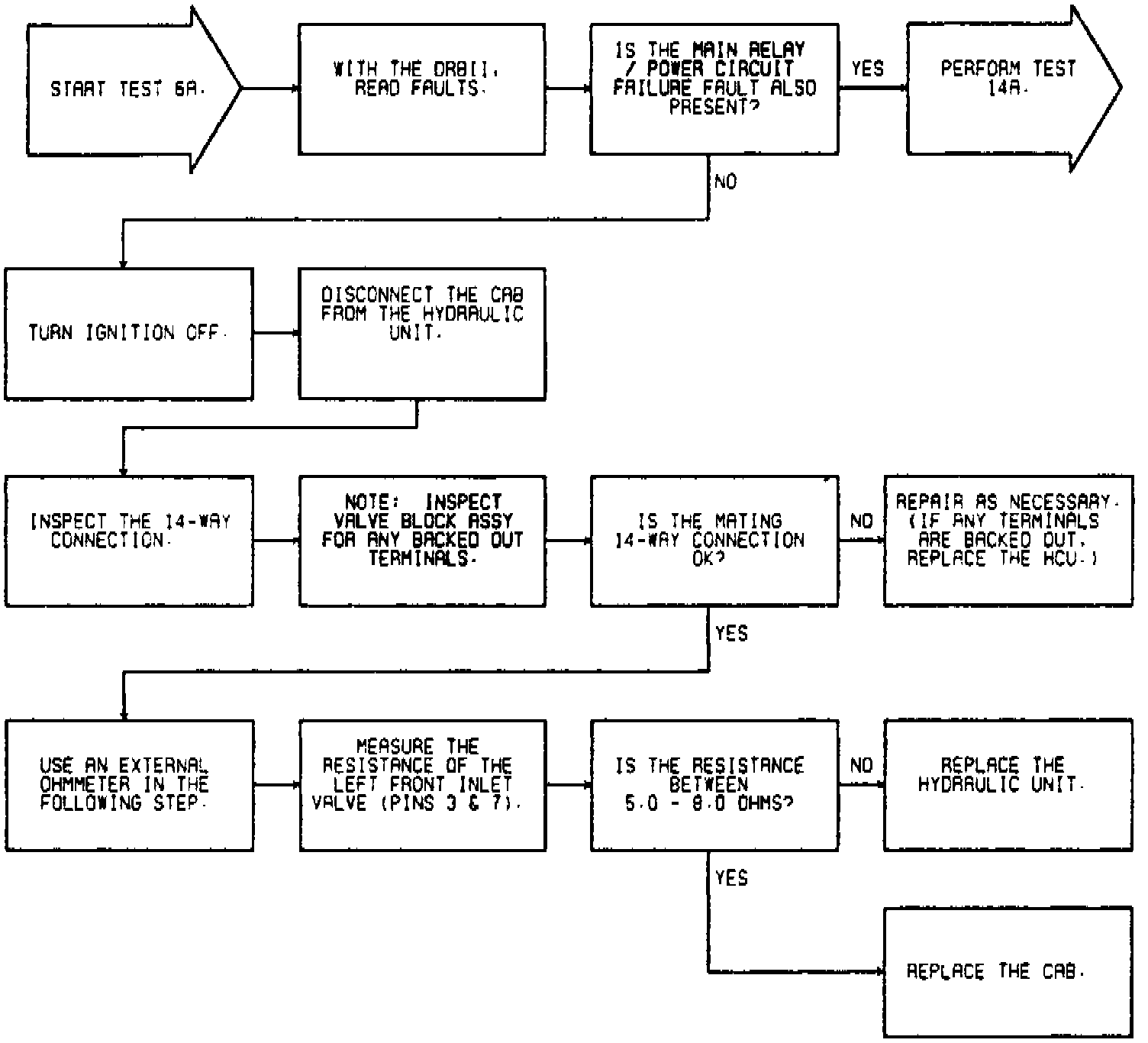

Fig 17 Test 6A: Left Front Inlet Valve Fault:
