Test 5A

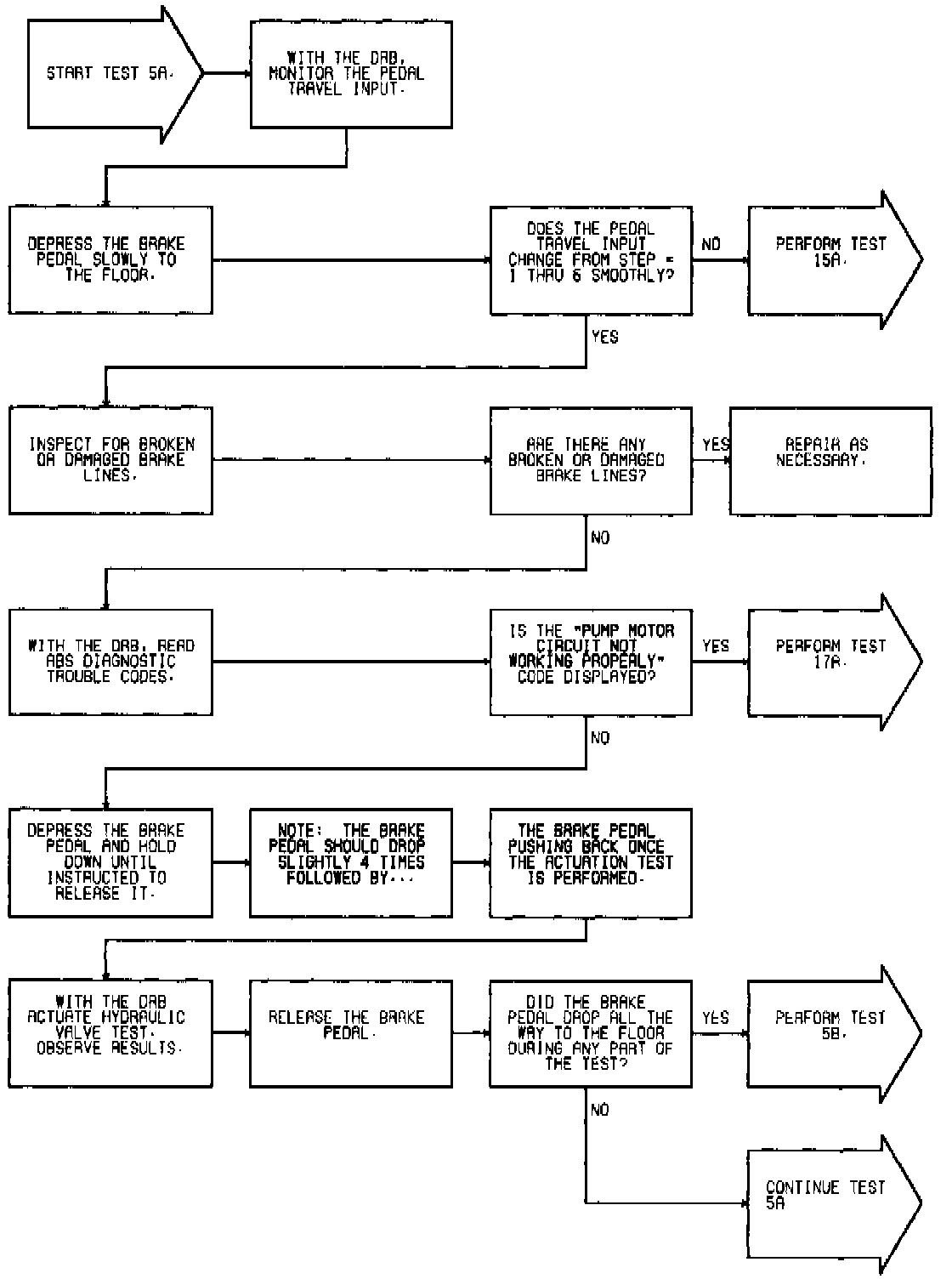

Fig 15 Test 5A: Hydraulic Failure (Part 1 Of 2):

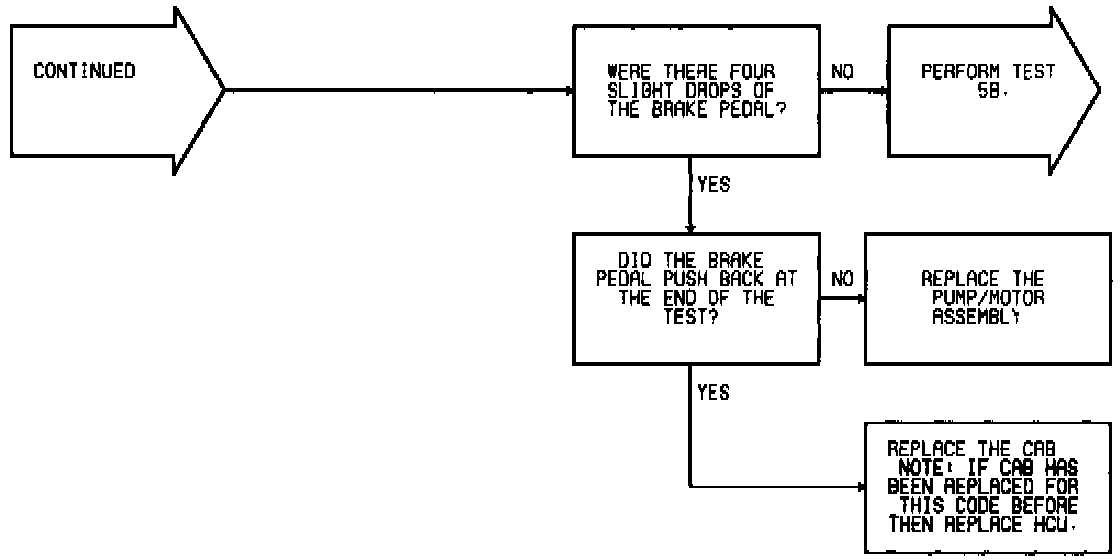

Fig 15 Test 5A: Hydraulic Failure (Part 2 Of 2):
