Test 4A - Fluid Level Switch Not Processable
Test 4A - Fluid Level Switch Not Processable
Fig 13 Test 4A: Fluid Level Switch Not Processable (Part 1 Of 2):

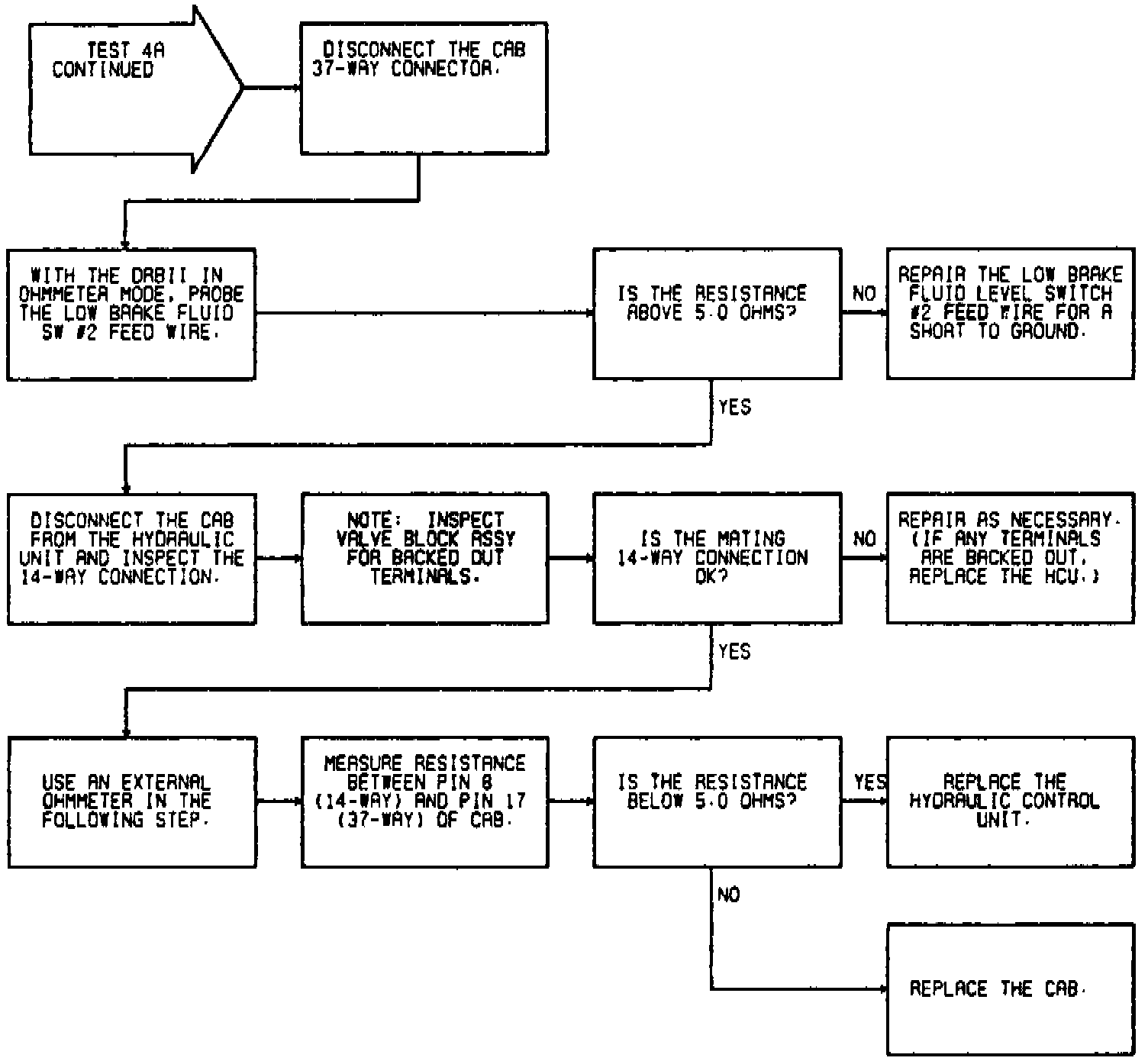

Fig 13 Test 4A: Fluid Level Switch Not Processable (Part 2 Of 2):
