Antilock Brakes / Traction Control Systems
>>
Test 3A - Fluid Level Switch Open
Test 3A - Fluid Level Switch Open

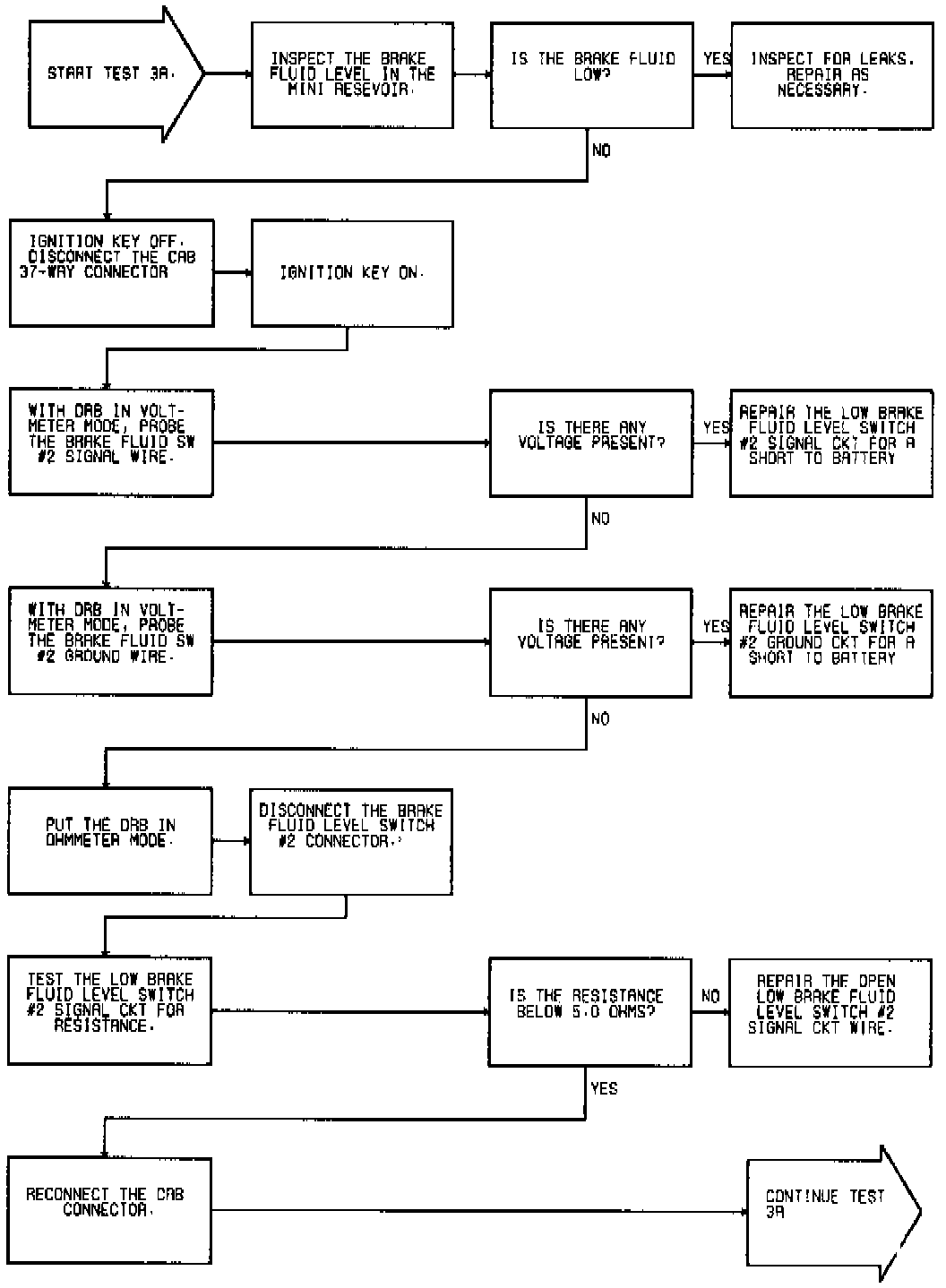

Fig 12 Test 3A: Fluid Level Switch Open (part 1 Of 2 ):

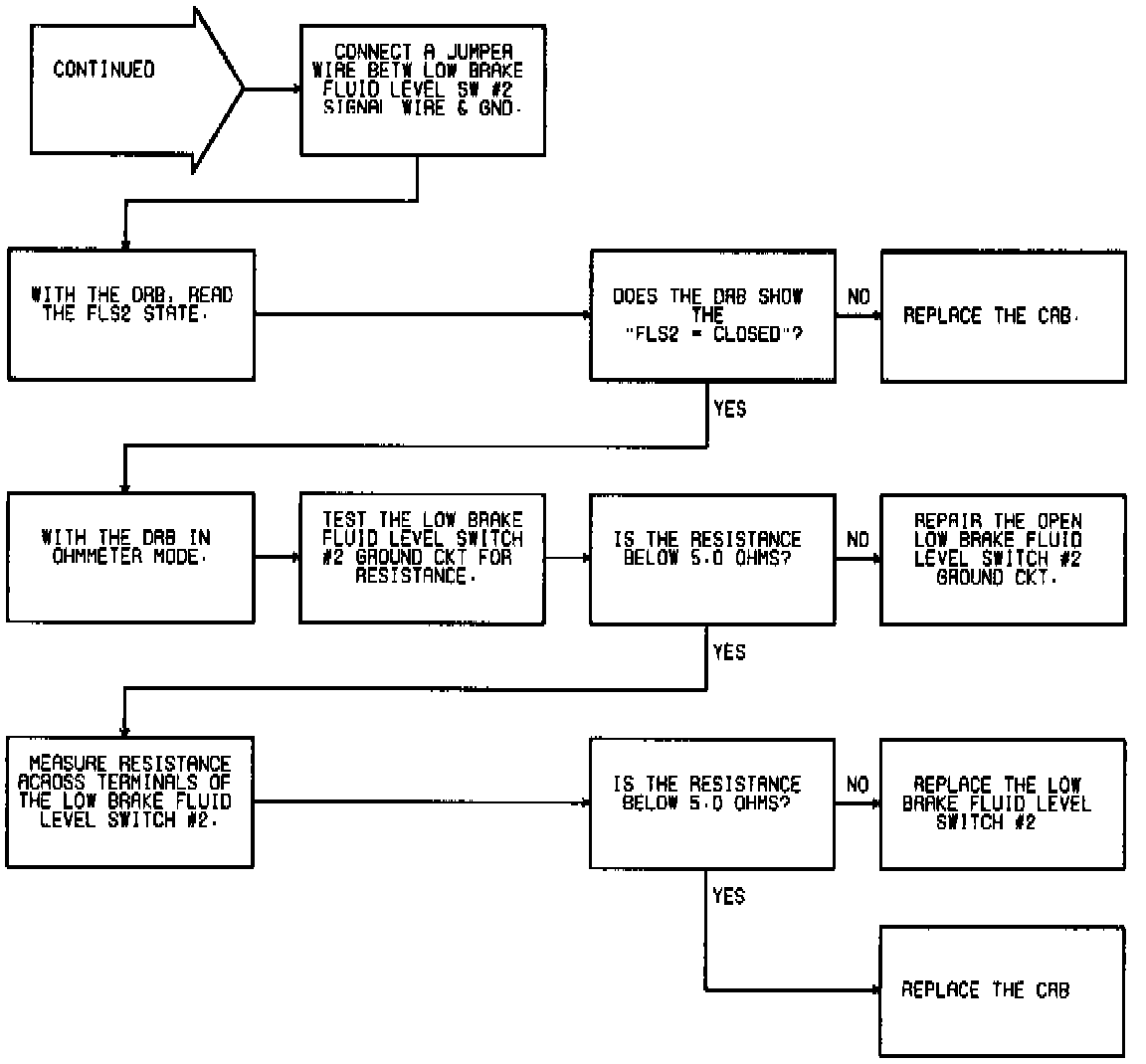

Fig 12 Test 3A: Fluid Level Switch Open (Part 2 Of 2):
