Test 30A

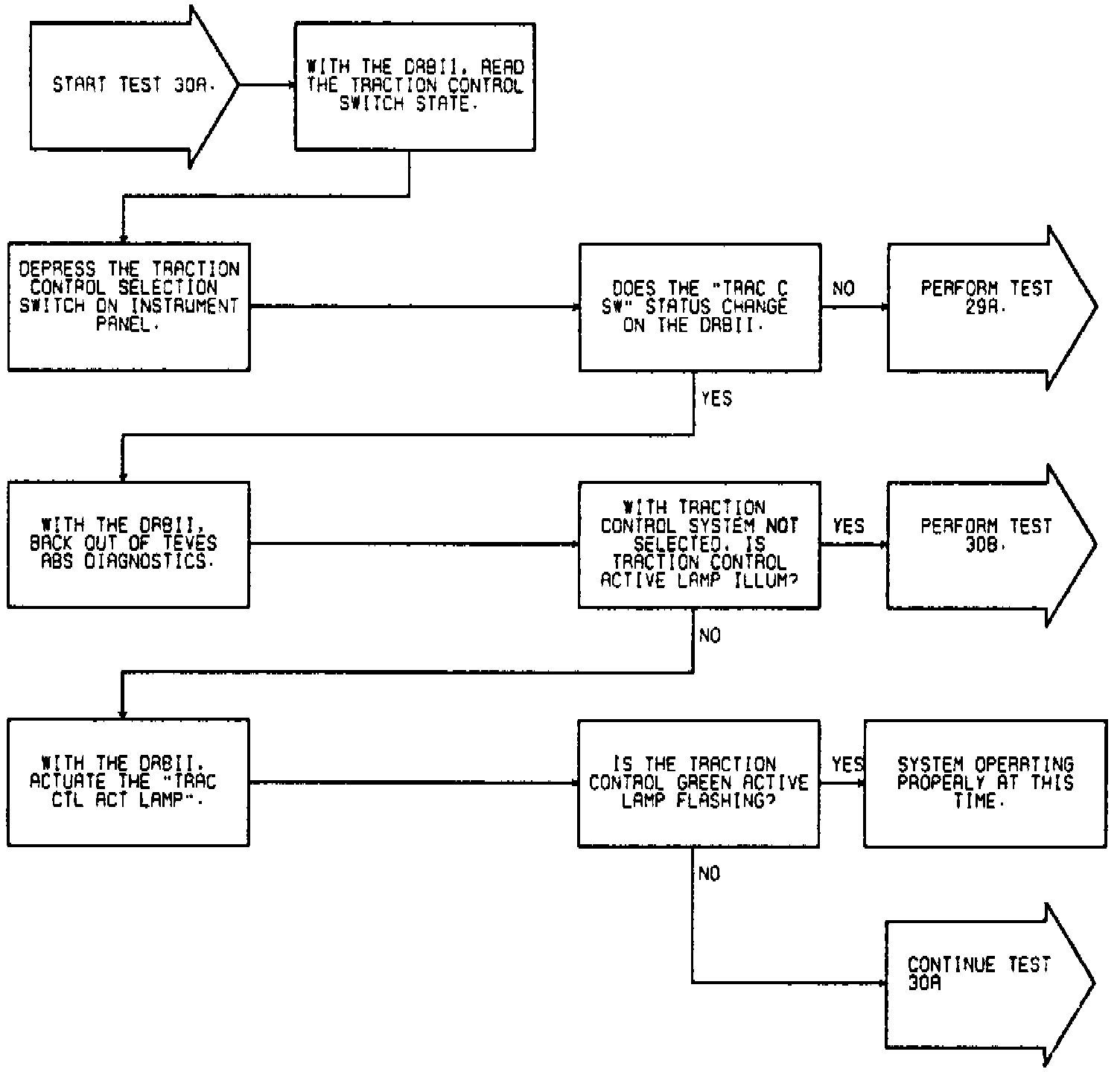

Fig 57 Test 30A: Correcting Inoperative Low-Speed Traction Control System, Green Active Lamp (Part 1 Of 2):

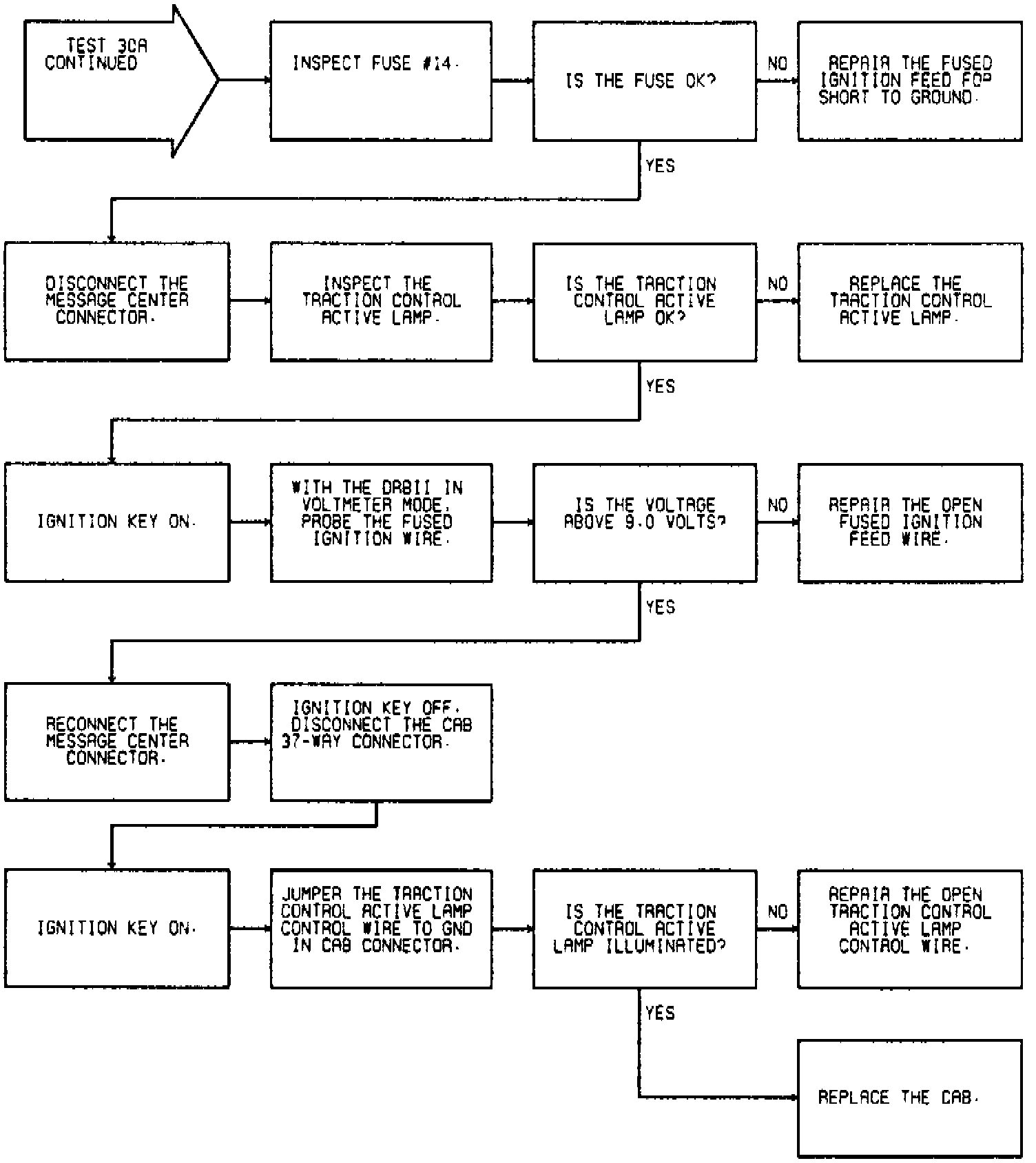

Fig 57 Test 30A: Correcting Inoperative Low-Speed Traction Control System, Green Active Lamp (Part 2 Of 2):
