A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 26A - Right Rear Wheel Speed Sensor
Test 26A - Right Rear Wheel Speed Sensor

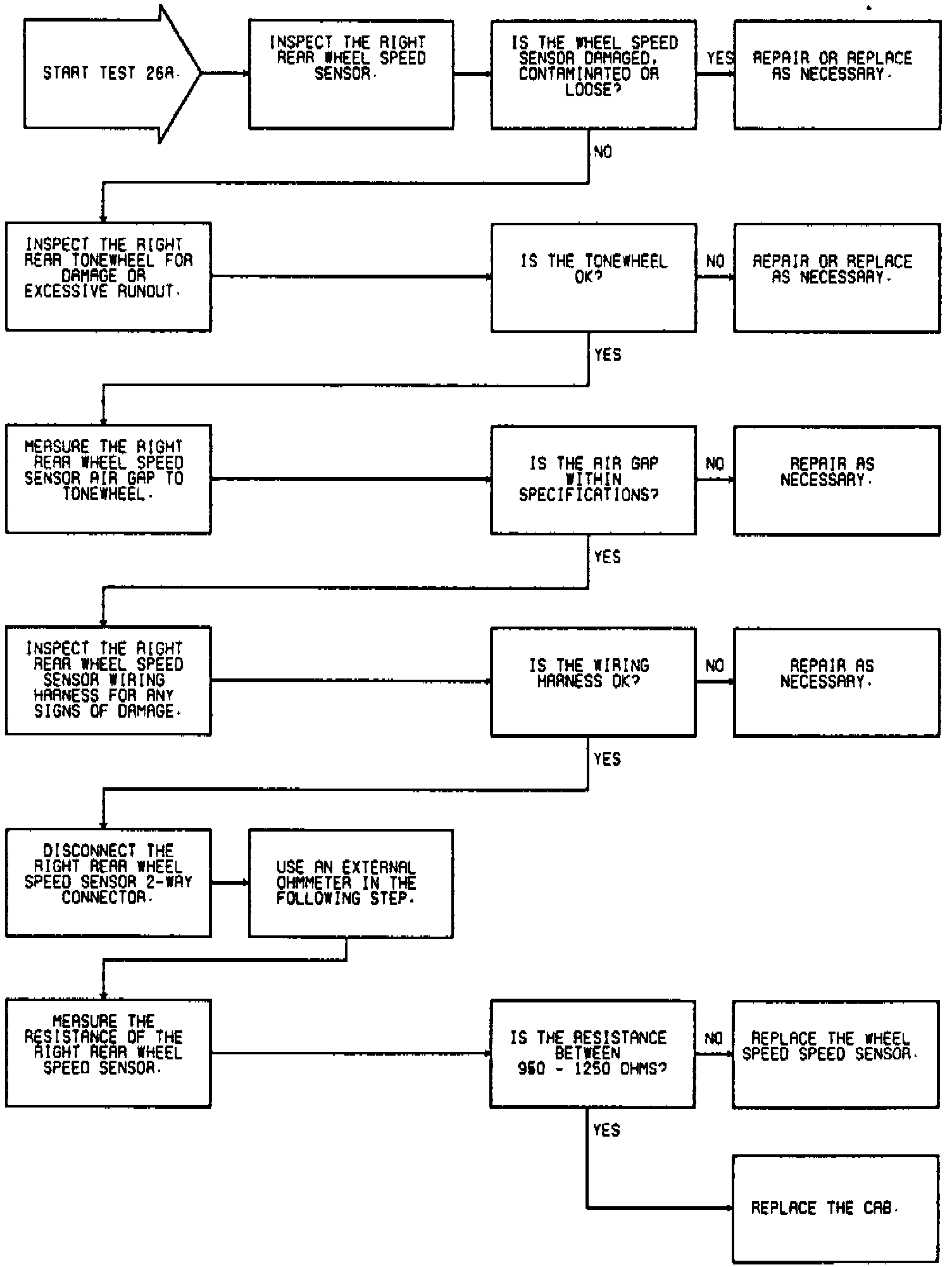

Fig 52 Test 26A: Correcting Right Rear Sensor Faults:
