Test 21A - Right Front Sensor Circuit Failure
Test 21A - Right Front Sensor Circuit Failure

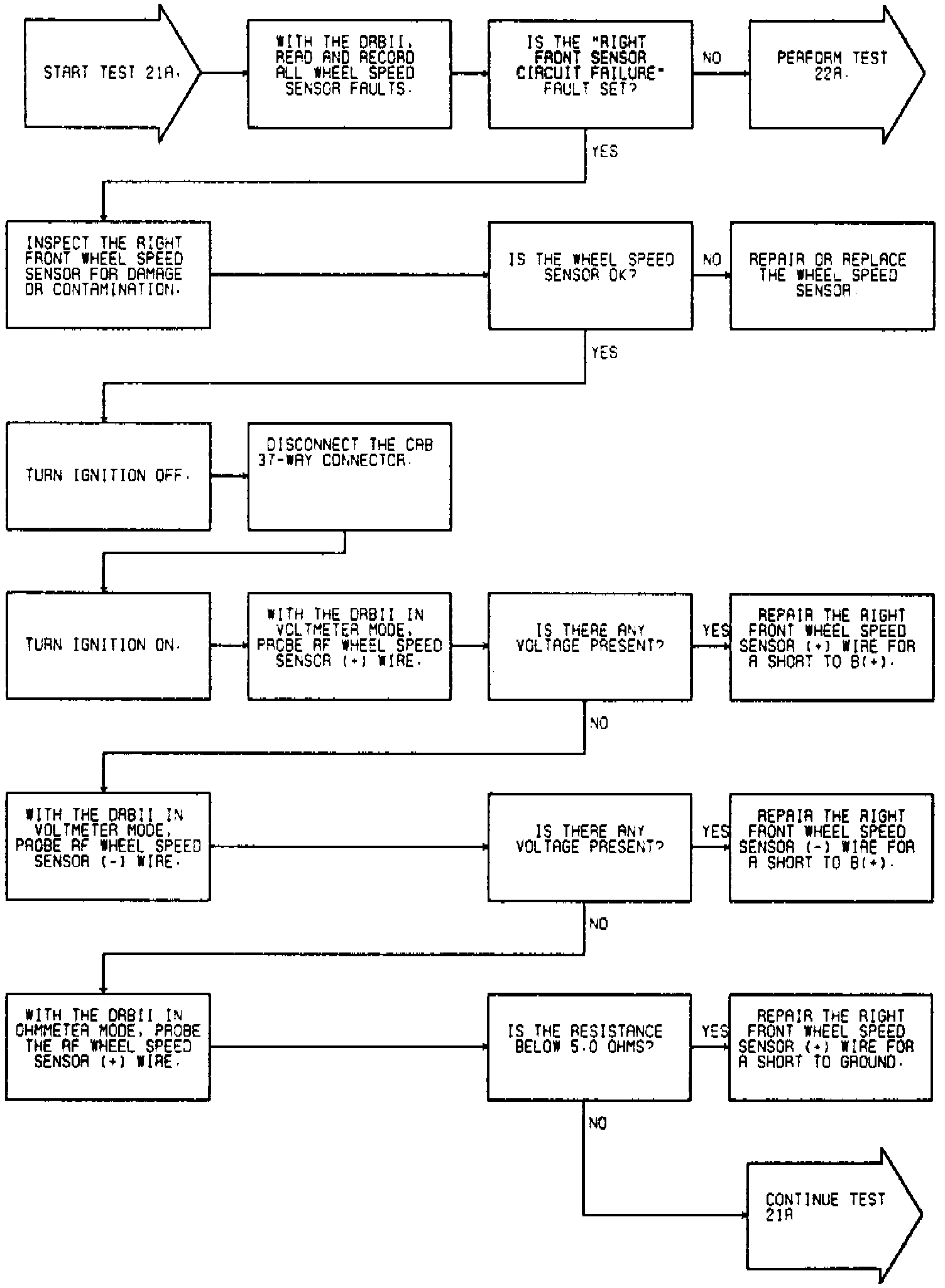

Fig 47 Test 21A: Right Front Sensor Circuit Failure (Part 1 Of 2):

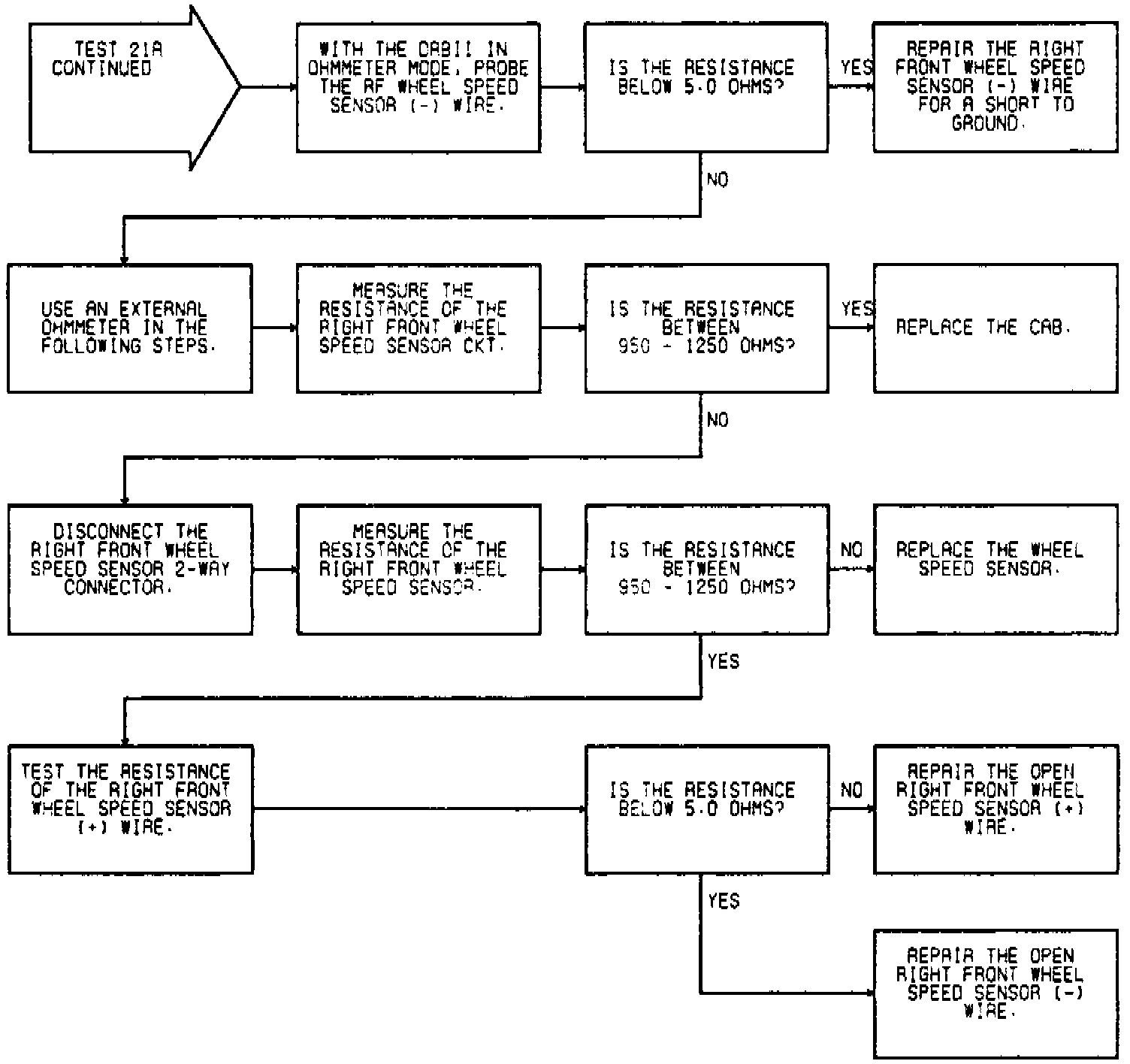

Fig 47 Test 21A: Right Front Sensor Circuit Failures (Part 2 Of 2):
