Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 19A - Right Front Inlet Valve

Test 19A - Right Front Inlet Valve

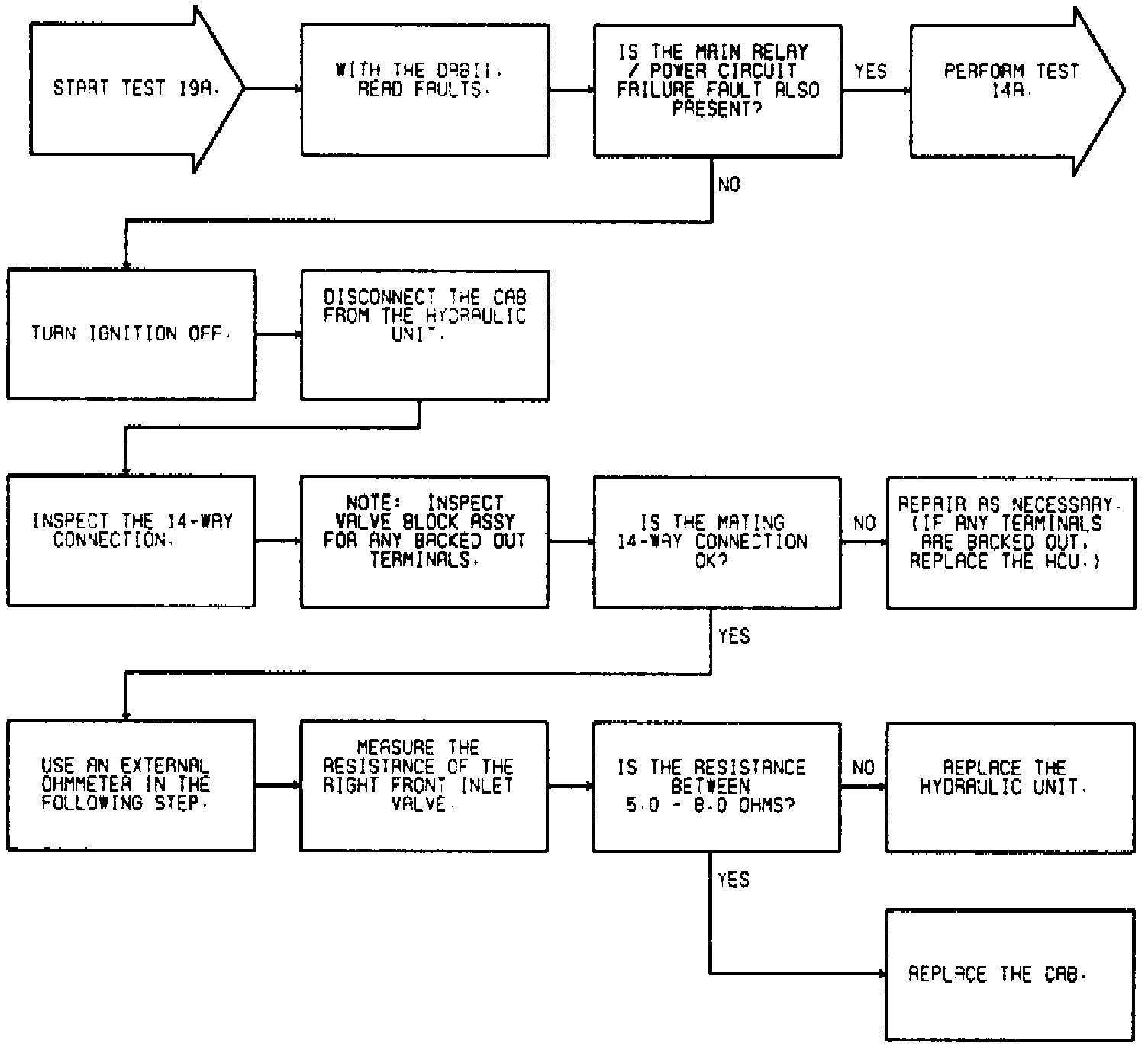

Fig 45 Test 19A: Right Front Inlet Valve Fault:
