Test 17E

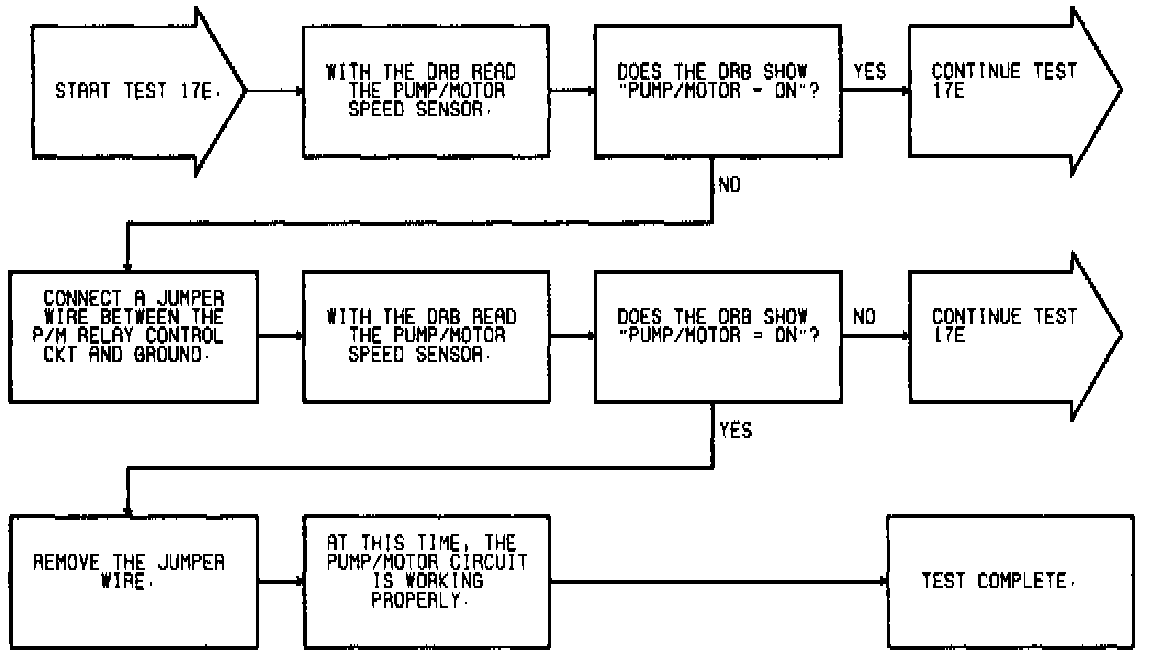

Fig 42 Test 17E: Pump Motor Circuit Not Working Properly (Part 1 Of 3):



Fig 42 Test 17E: Pump Motor Circuit Not Working Properly (Part 2 Of 3):



Fig 42 Test 17E: Pump Motor Circuit Not Working Properly (Part 3 Of 3):
