Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 17 - Pump Motor Circuit Not Working Properly >> Test 17C

Test 17C

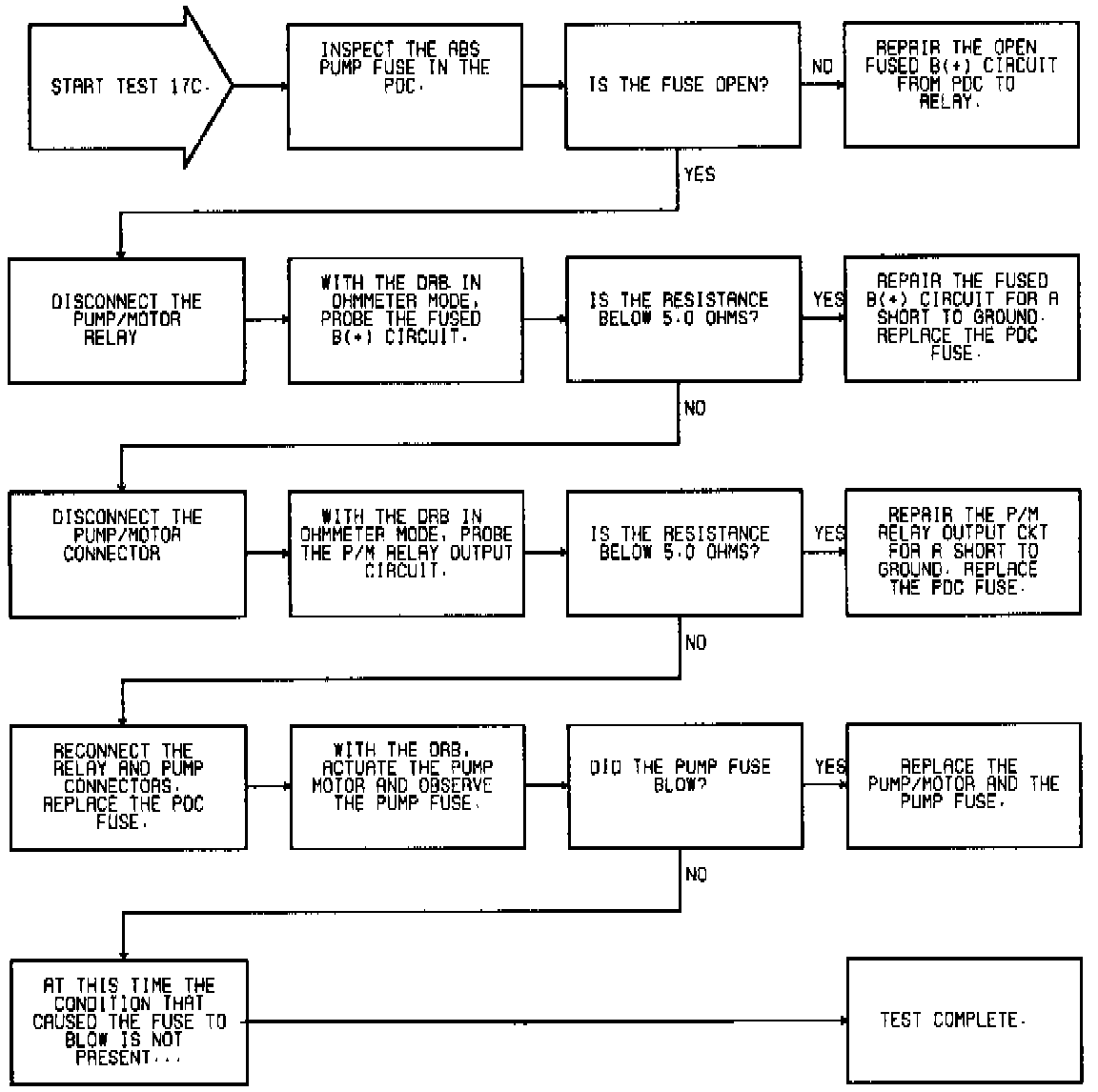

Fig 39 Test 17C: Pump Motor Circuit Not Working Properly:
