Test 17B

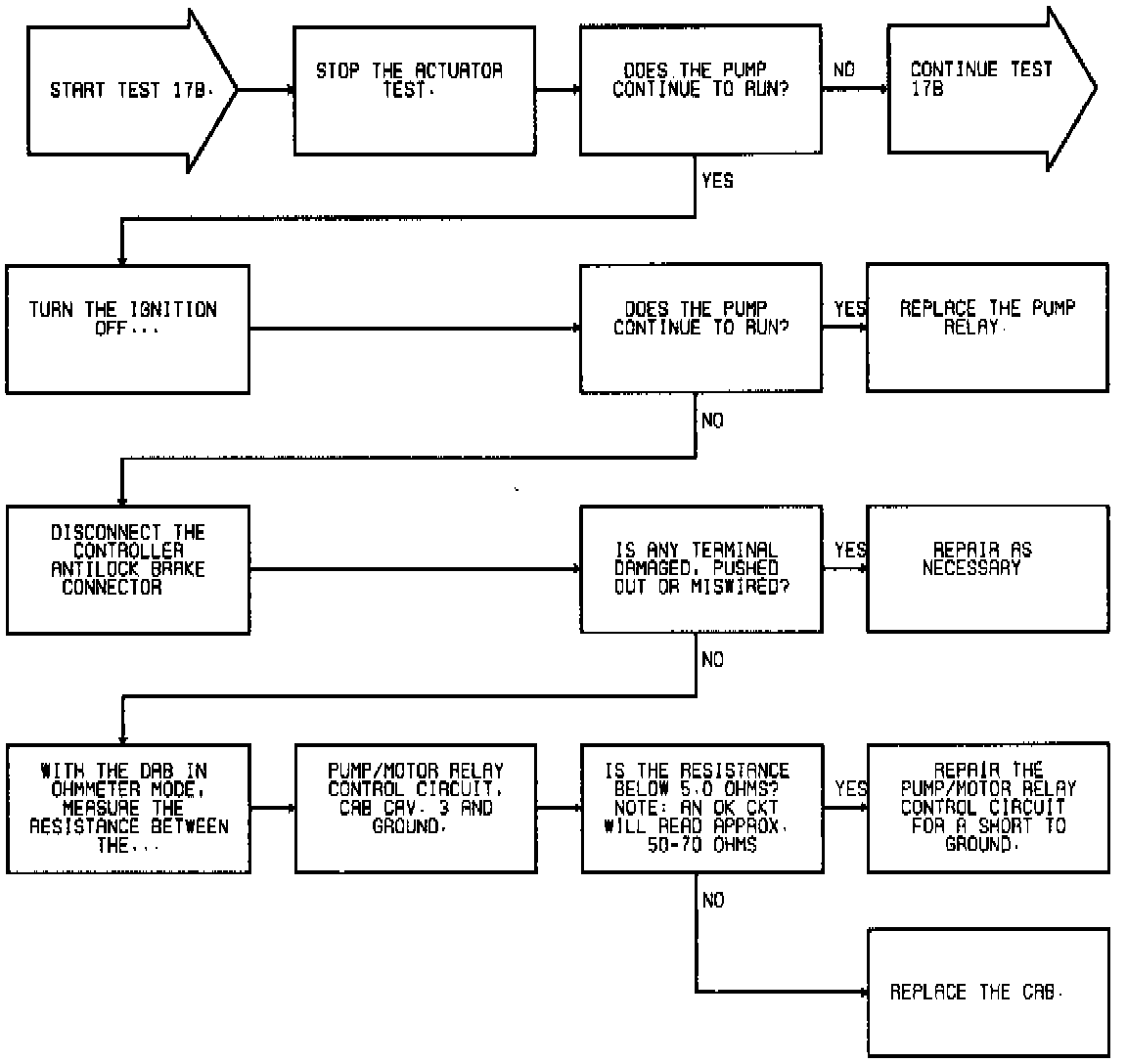

Fig 37 Test 17B: Pump Motor Circuit Not Working Properly (Part 1 Of 2):



Fig 37 Test 17B: Pump Motor Circuit Not Working Properly (Part 2 Of 2):
