Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 17 - Pump Motor Circuit Not Working Properly >> Test 17A

Test 17A

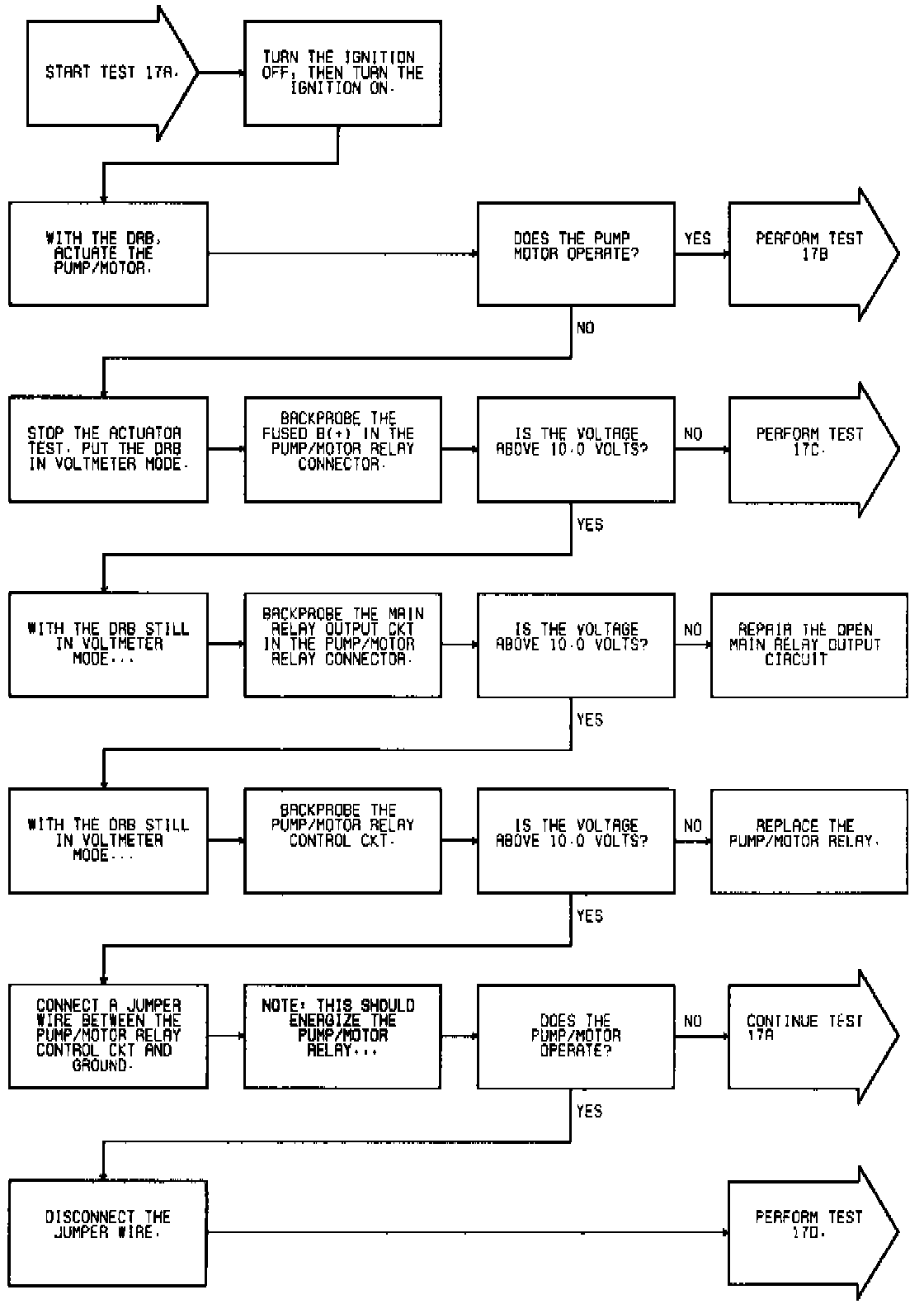

Fig 35 Test 17A: Pump Motor Circuit Not Working Properly (Part 1 Of 2):

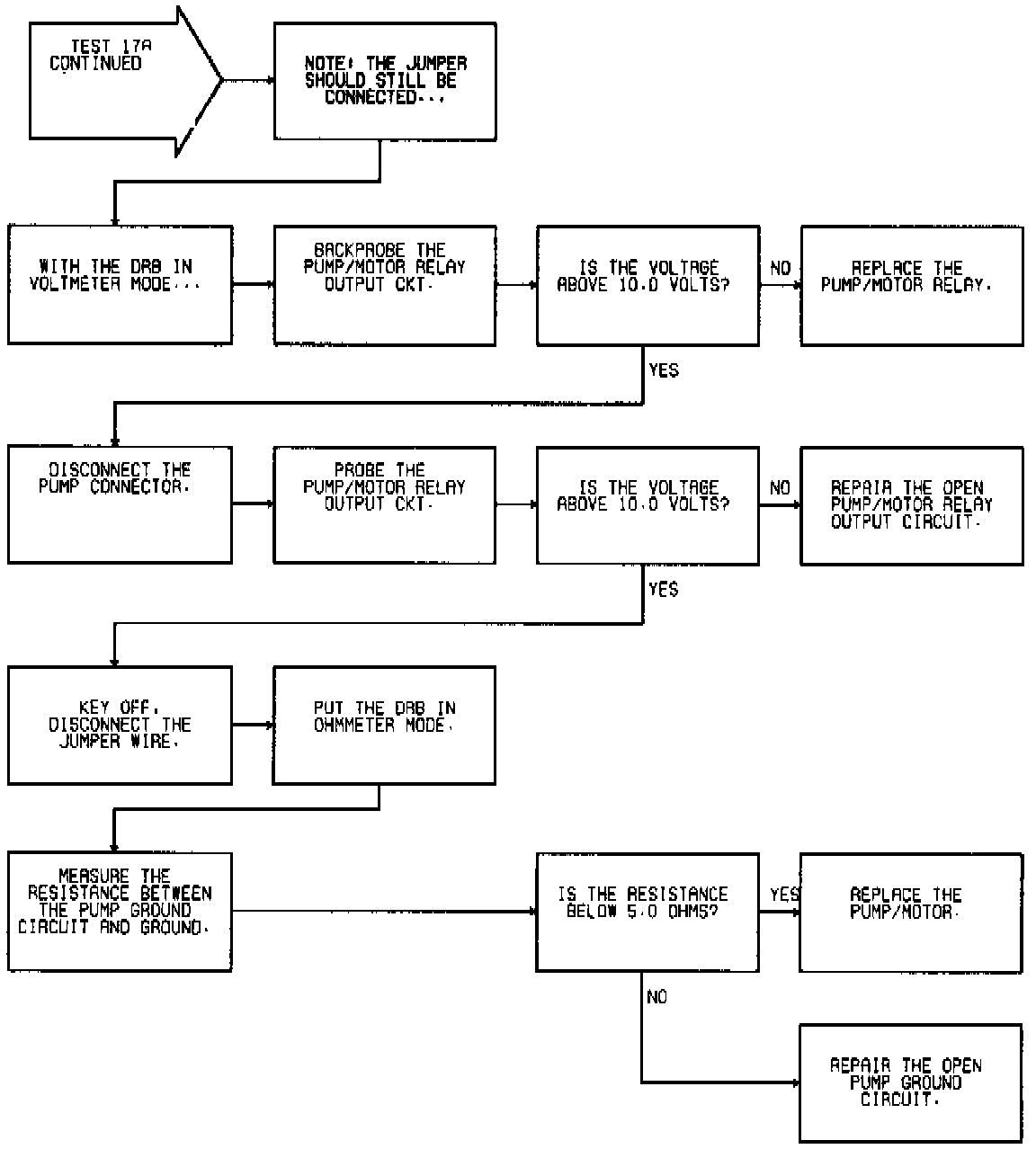

Fig 35 Test 17A: Pump Motor Circuit Not Working Properly (Part 2 Of 2):
