Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 16 - Pressure Switch/Brake Switch Circuit >> Test 16B

Test 16B

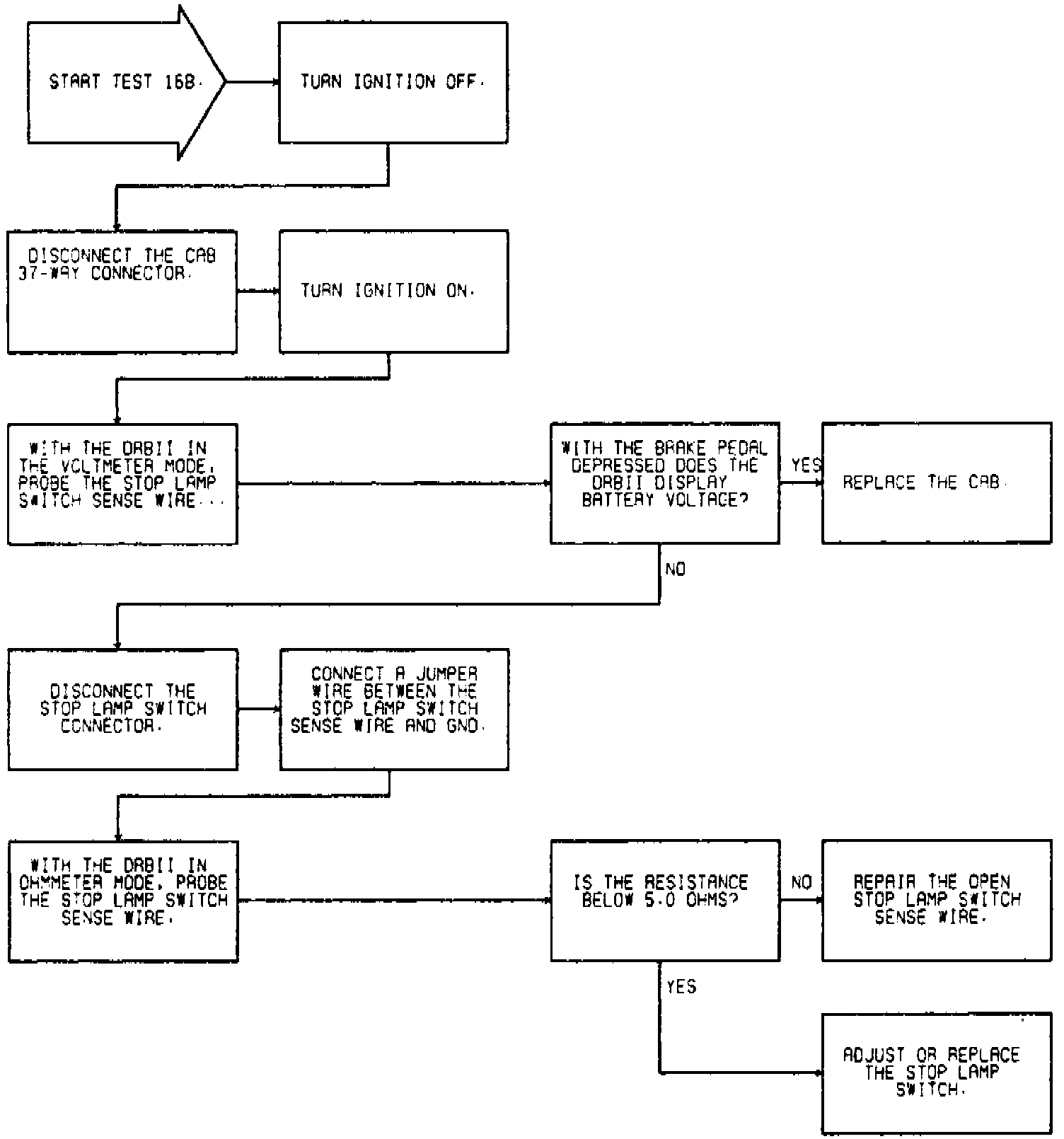

Fig 33 Test 16B: Pressure Switch/Brake SW Circuit Fault:
