Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 14 - Main Relay/Power Circuit Failure >> Test 14C

Test 14C

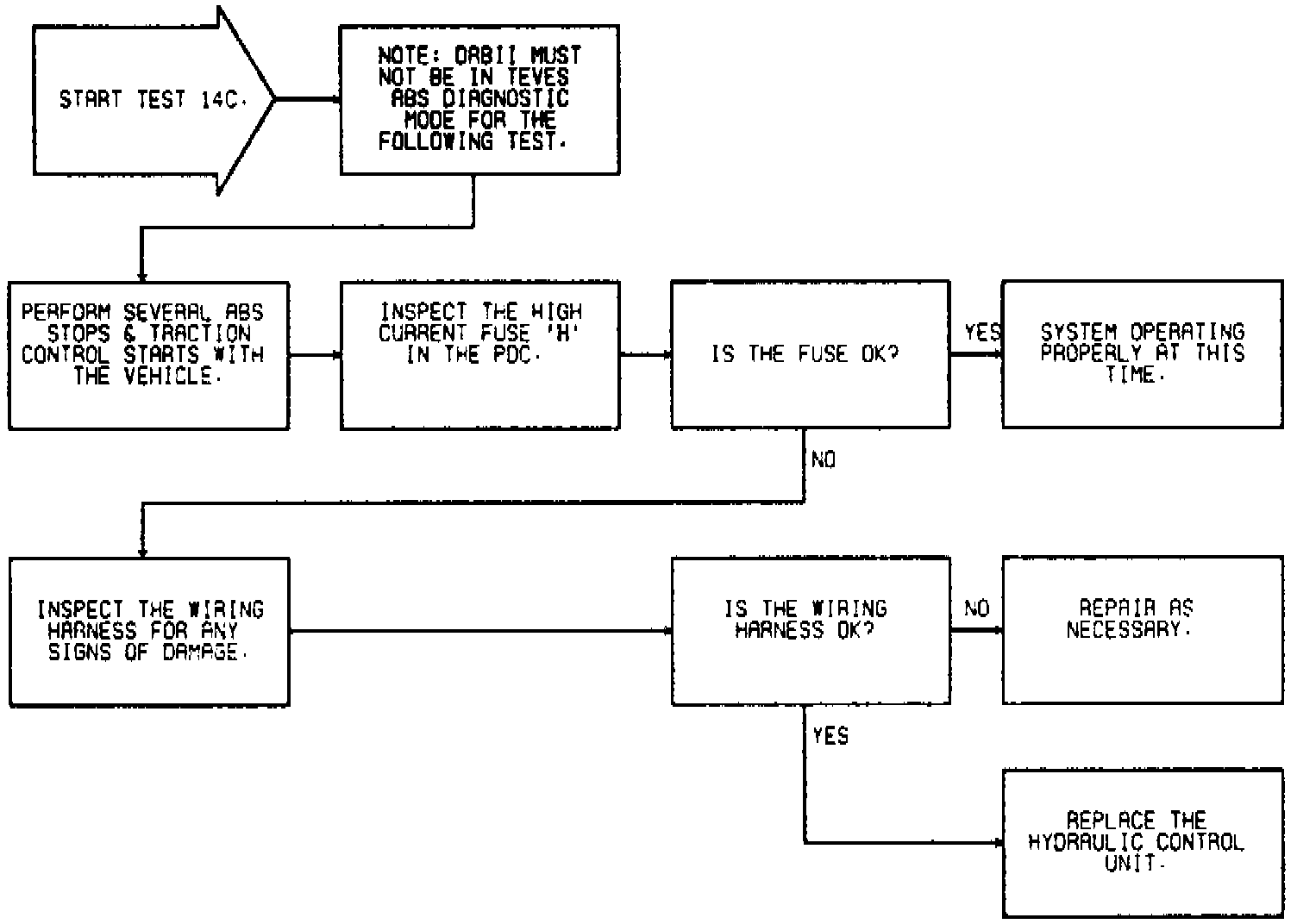

Fig 29 Test 14C: Main Relay/Power Circuit Failure:
