Test 14A

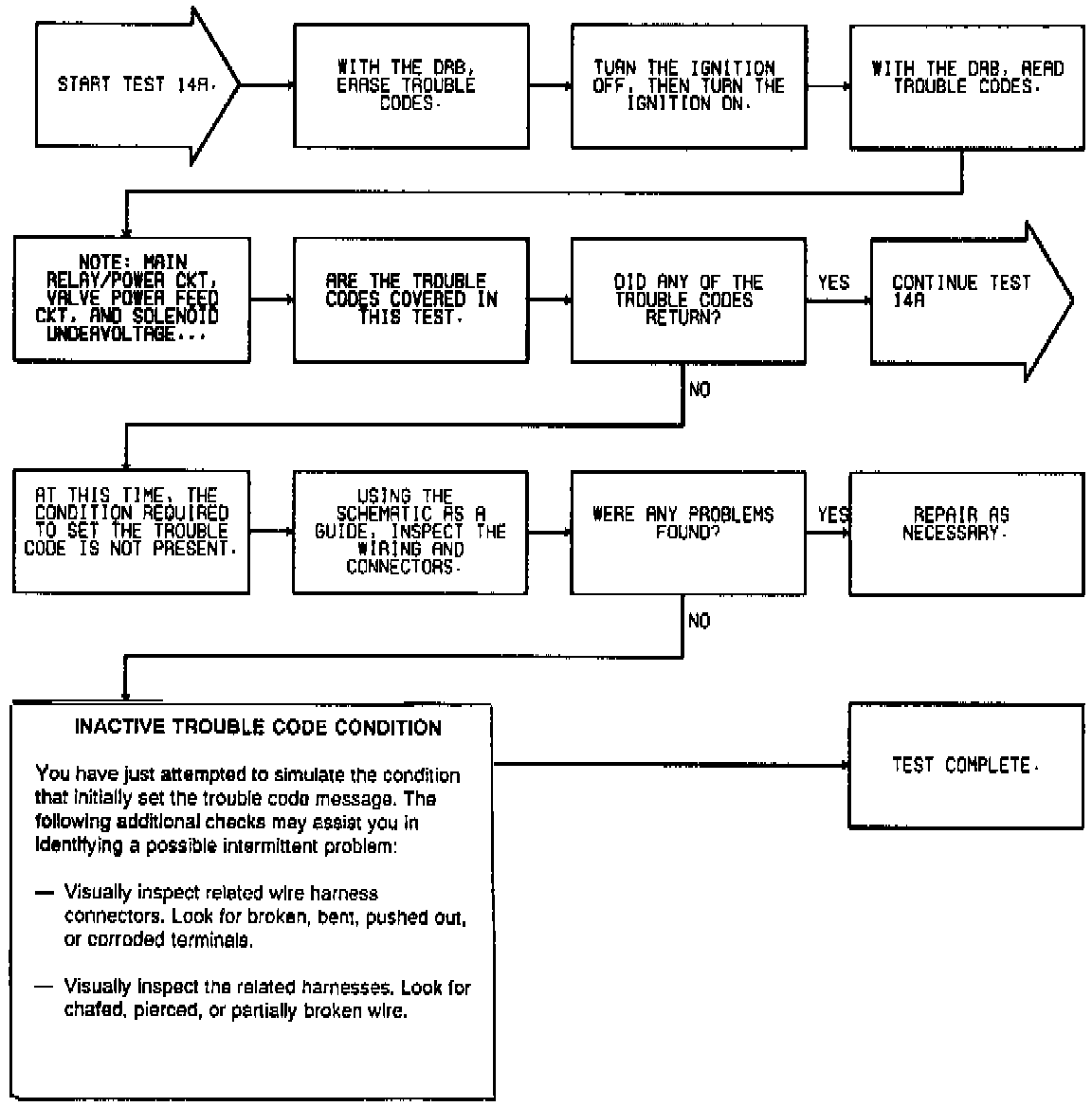

Fig 26 Test 14A: Main Relay/Power Circuit Failure (Part 1 Of 3):

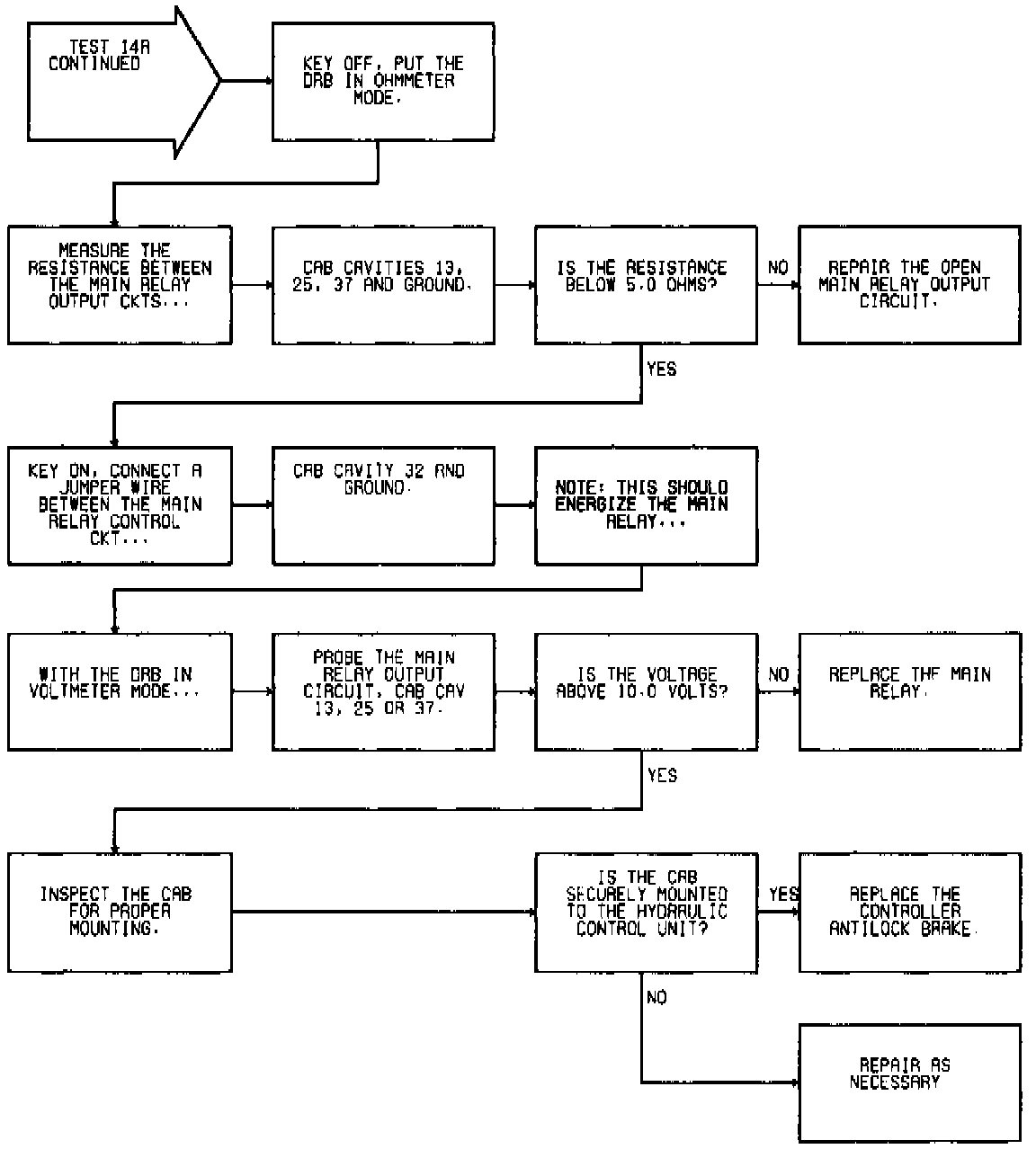

Fig 26 Test 14A: Main Relay/Power Circuit Failure (Part 2 Of 3):



Fig 26 Test 14A: Main Relay/Power Circuit Failure (Part 3 Of 3):
