Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 13A - Left Rear Wheel Speed Sensor

Test 13A - Left Rear Wheel Speed Sensor

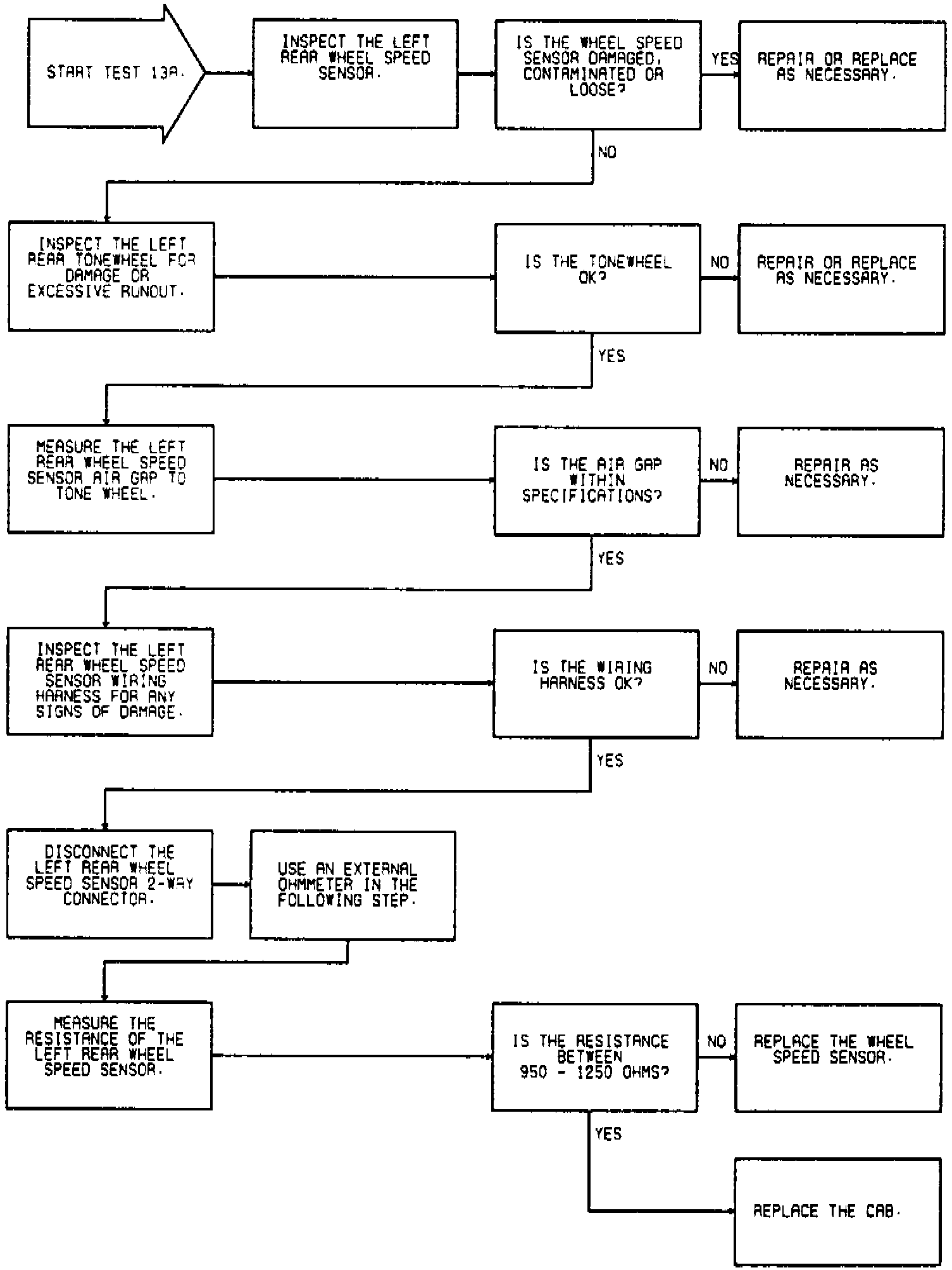

Fig 24 Test 13A: Correcting Left Rear Sensor Faults:
