Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 10A - Left Rear Inlet Valve

Test 10A - Left Rear Inlet Valve

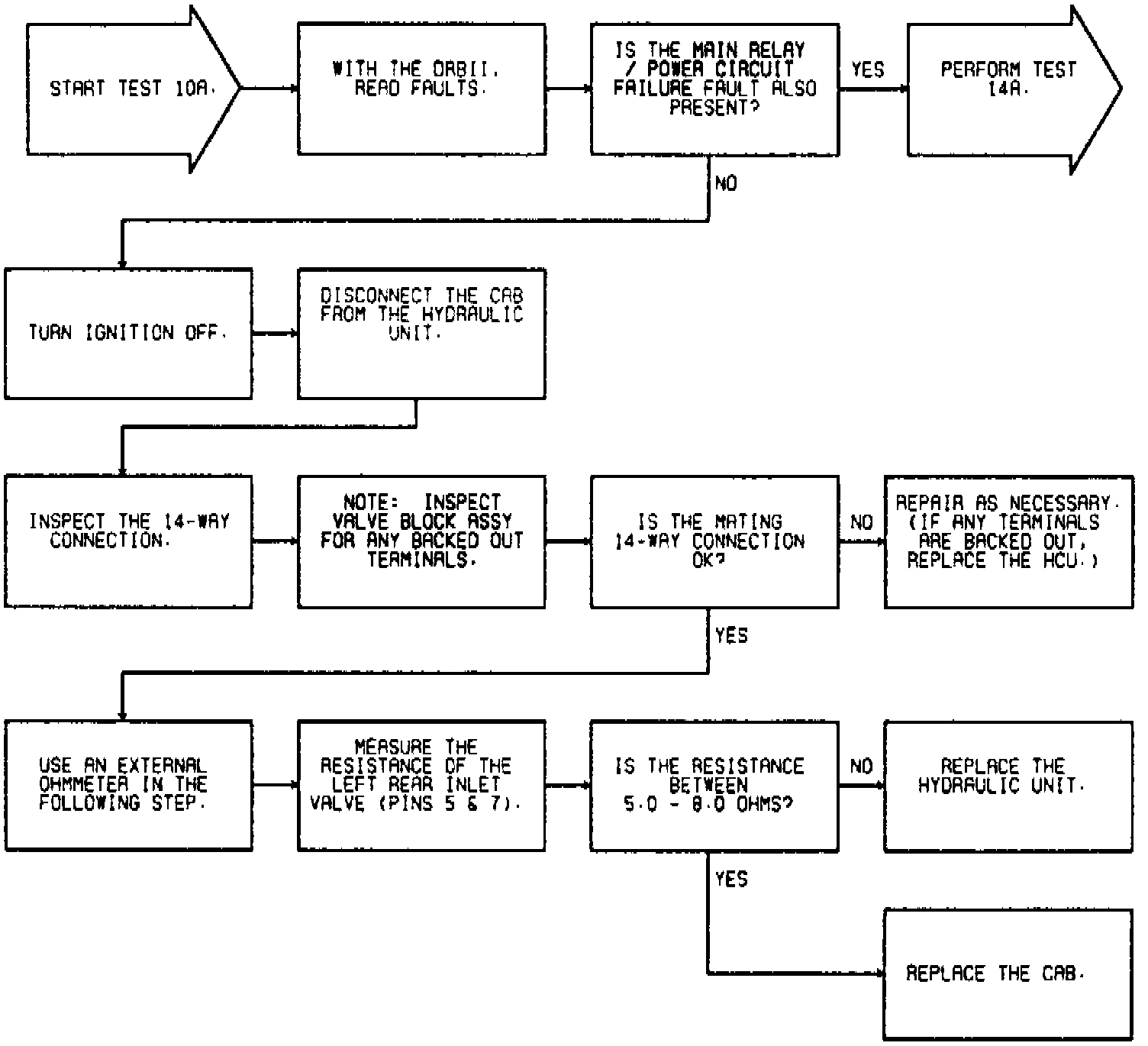

Fig 21 Test 10A: Left Rear Inlet Valve Fault:
