Generator Replacement

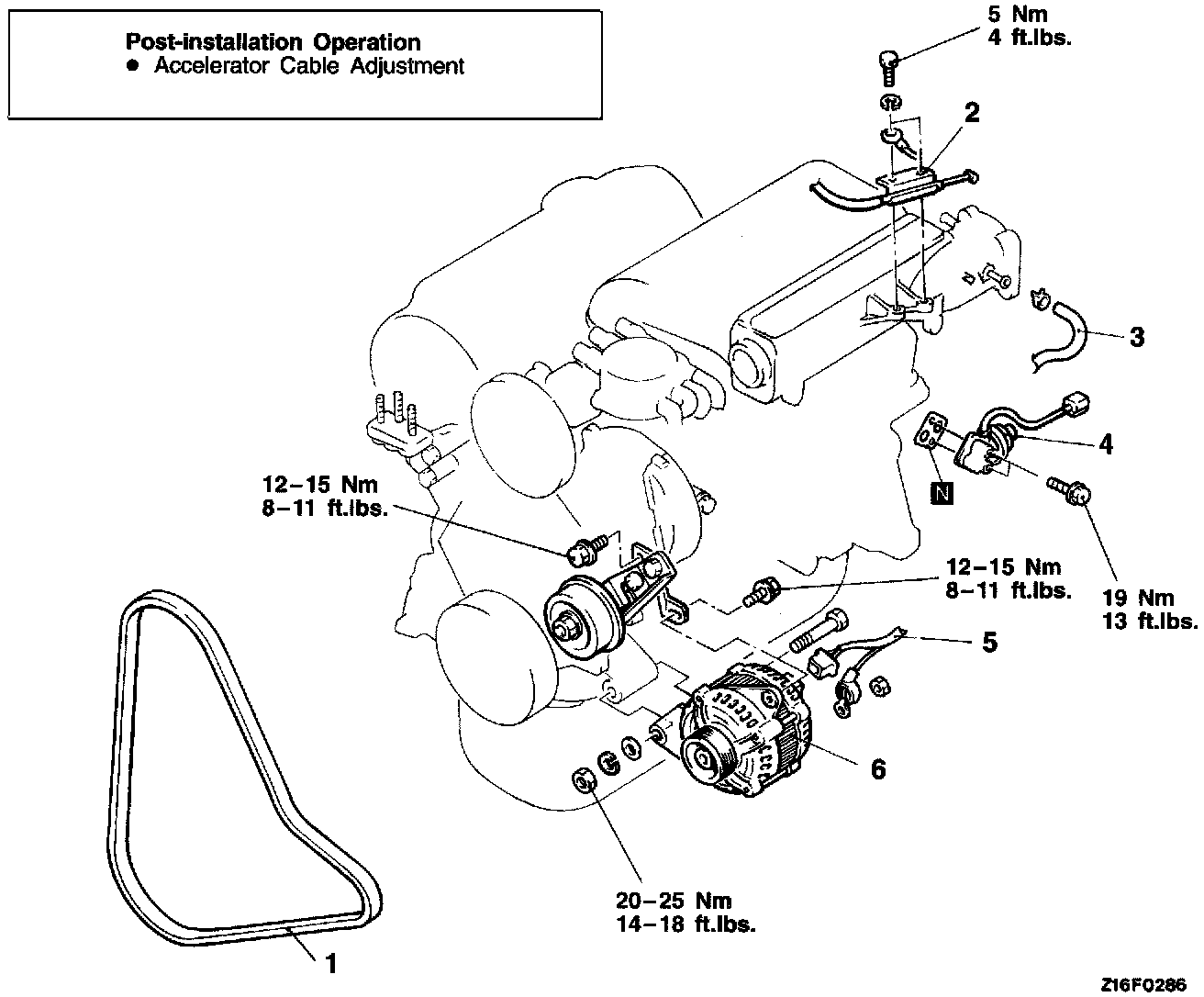

Generator - Removal And Installation:

REMOVE
1. Drive belt
2. Accelerator cable
3. Brake booster vacuum hose connection
4. EGR valve
5. Generator connector connection
6. Generator

INSTALL
1. Generator
2. Generator connector connection
3. EGR valve
4. Brake booster vacuum hose connection
5. Accelerator cable
6. Drive belt

Post Installation
- Accelerator Cable Adjustment
