Alternator: Service and Repair

1. Disconnect and isolate battery ground cable.

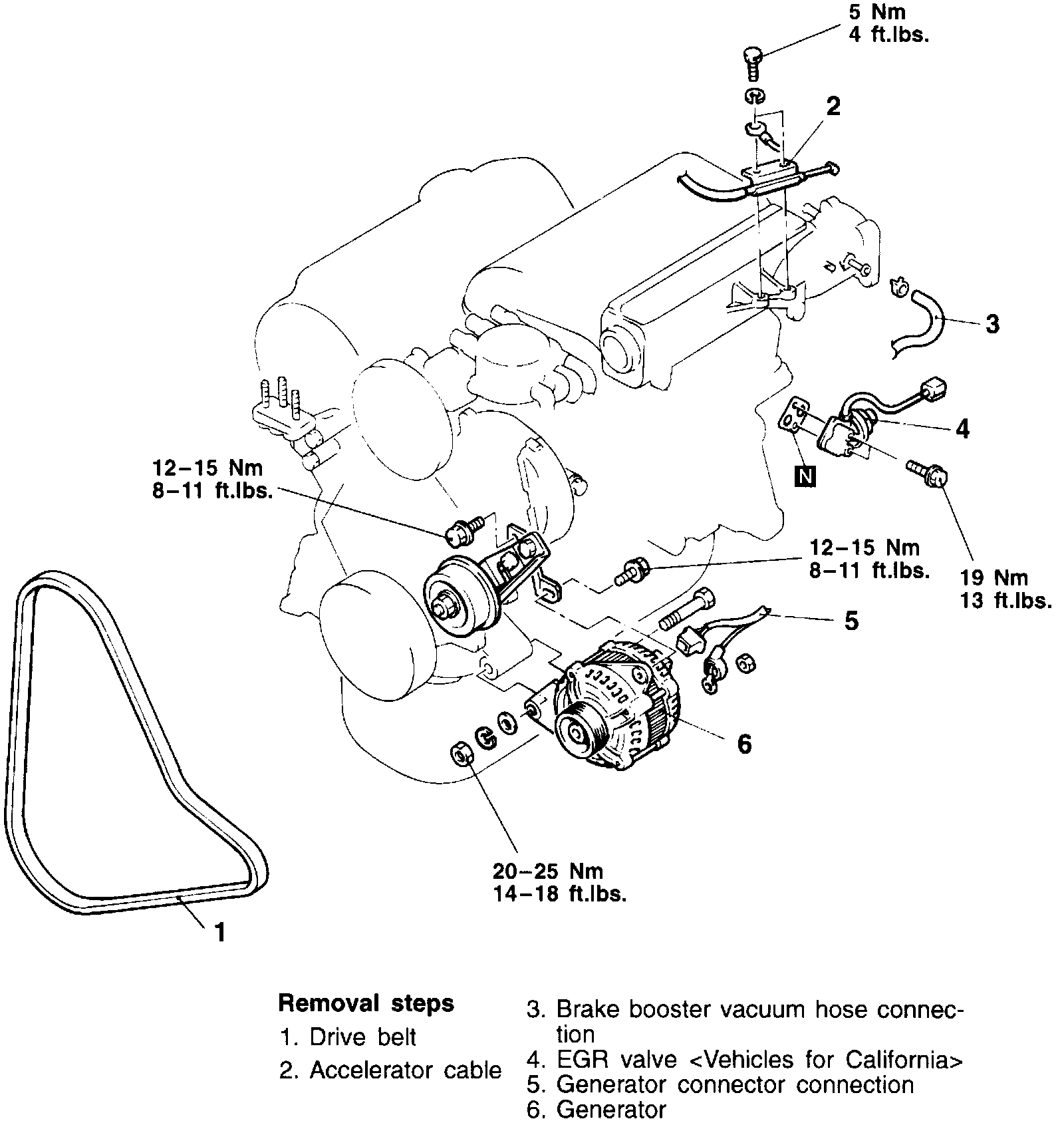

Fig. 2 Alternator Removal:

2. Remove or disconnect all items shown.

Removal Of Generator:

3. Take out the generator from behind the surge tank at the center of the vehicle.

4. Reverse procedure to install
