Wiring Callouts - Service Manual Corrections

NO: 08-63-94

GROUP: Electrical

DATE: Nov. 4, 1994

SUBJECT:
Service Manual Revision - Wiring Callouts Corrected

MODELS:
1992 - 1994 (B7) Stealth
1992 - 1993 (B8) Colt Vista/Summit Wagon

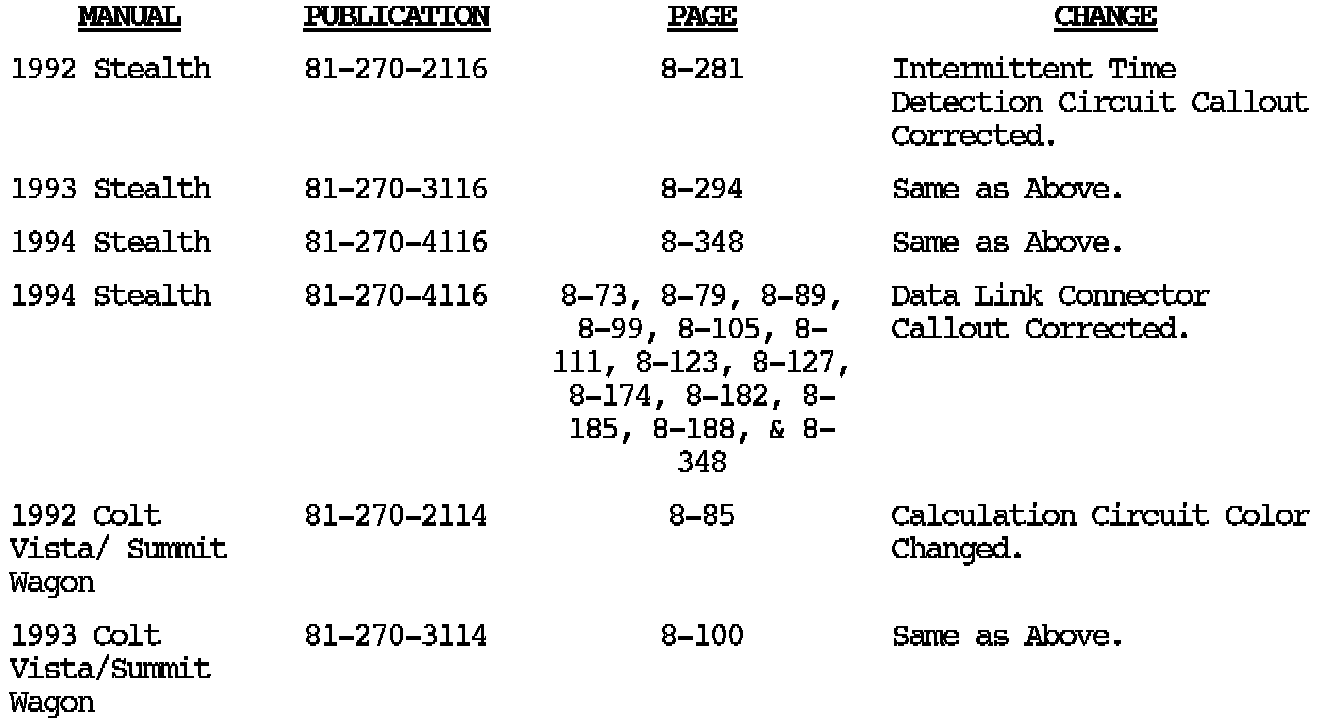

This Technical Service Bulletin contains revised Service Manual Pages. The revisions are highlighted with **ASTERISKS**.





Please insert these pages into the appropriate Service Manual.

POLICY: Information Only





8-281

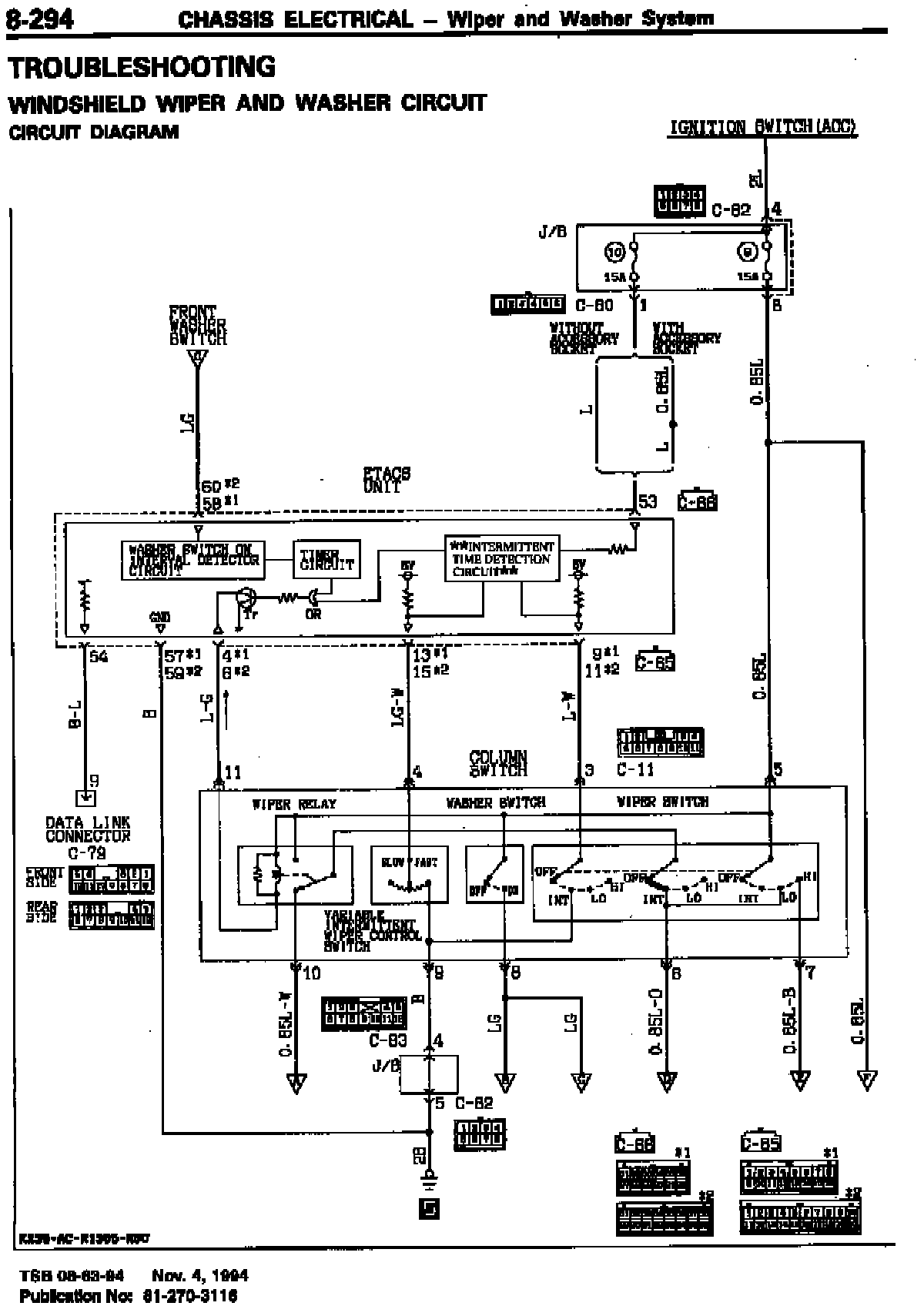

8-294

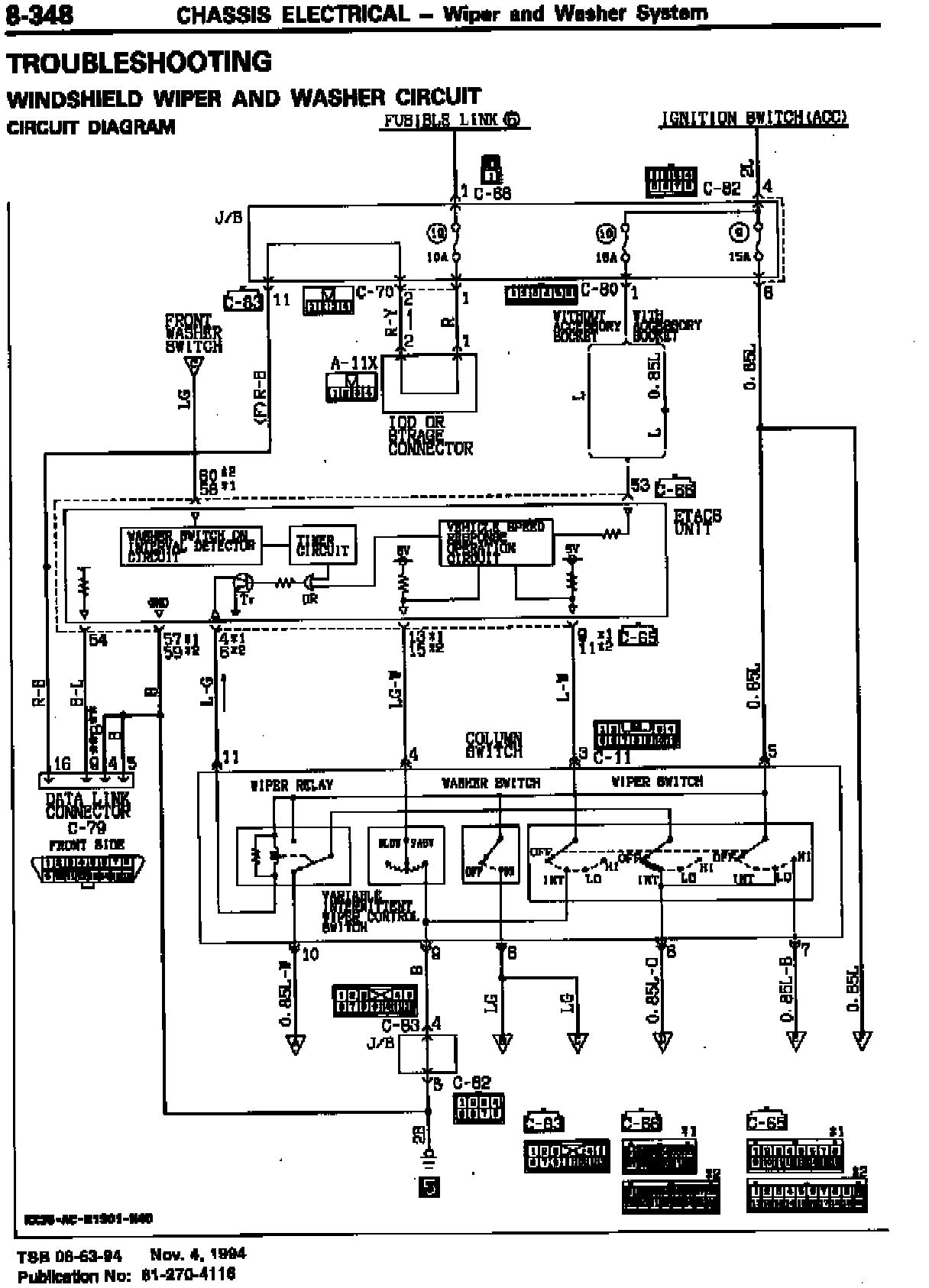

8-348





8-73

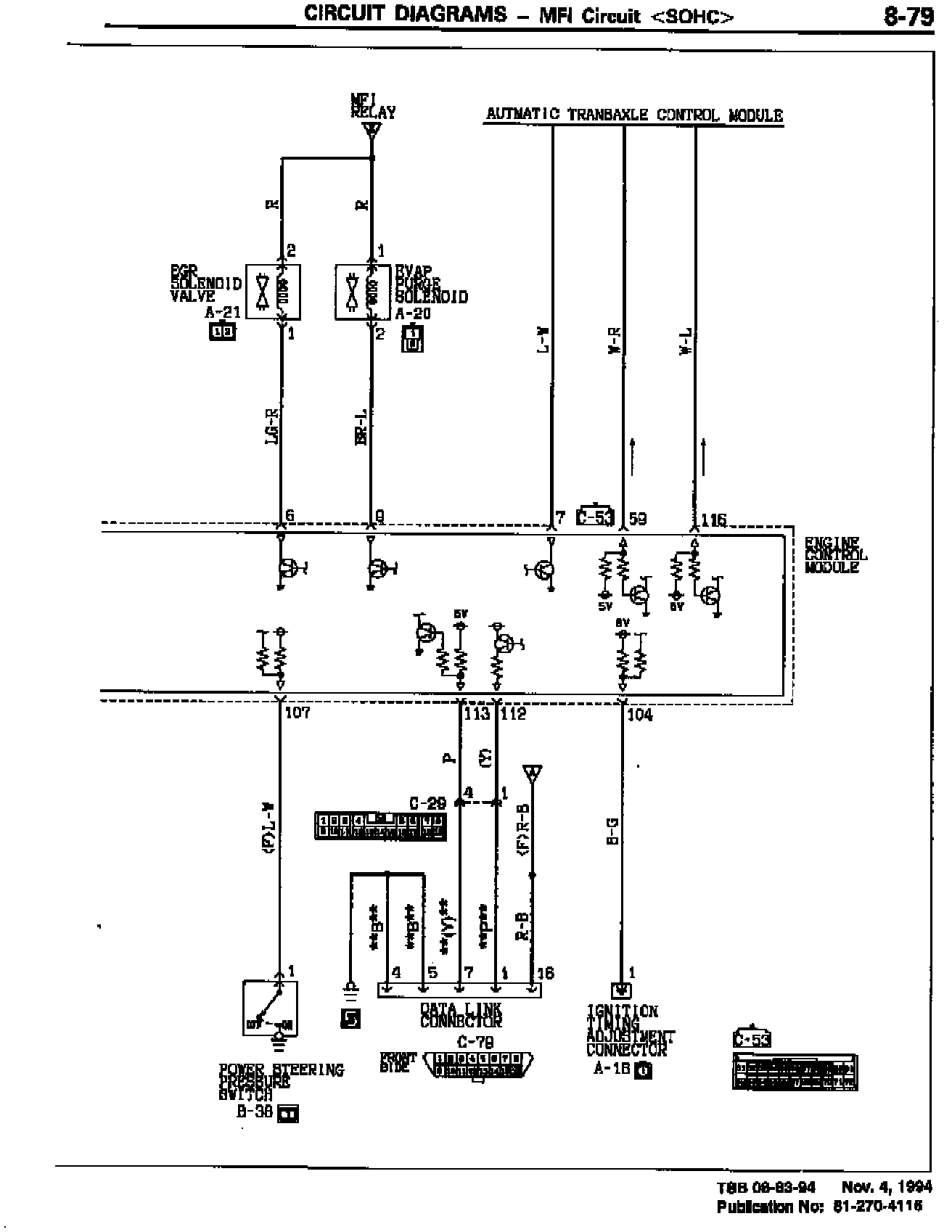

8-79





8-89

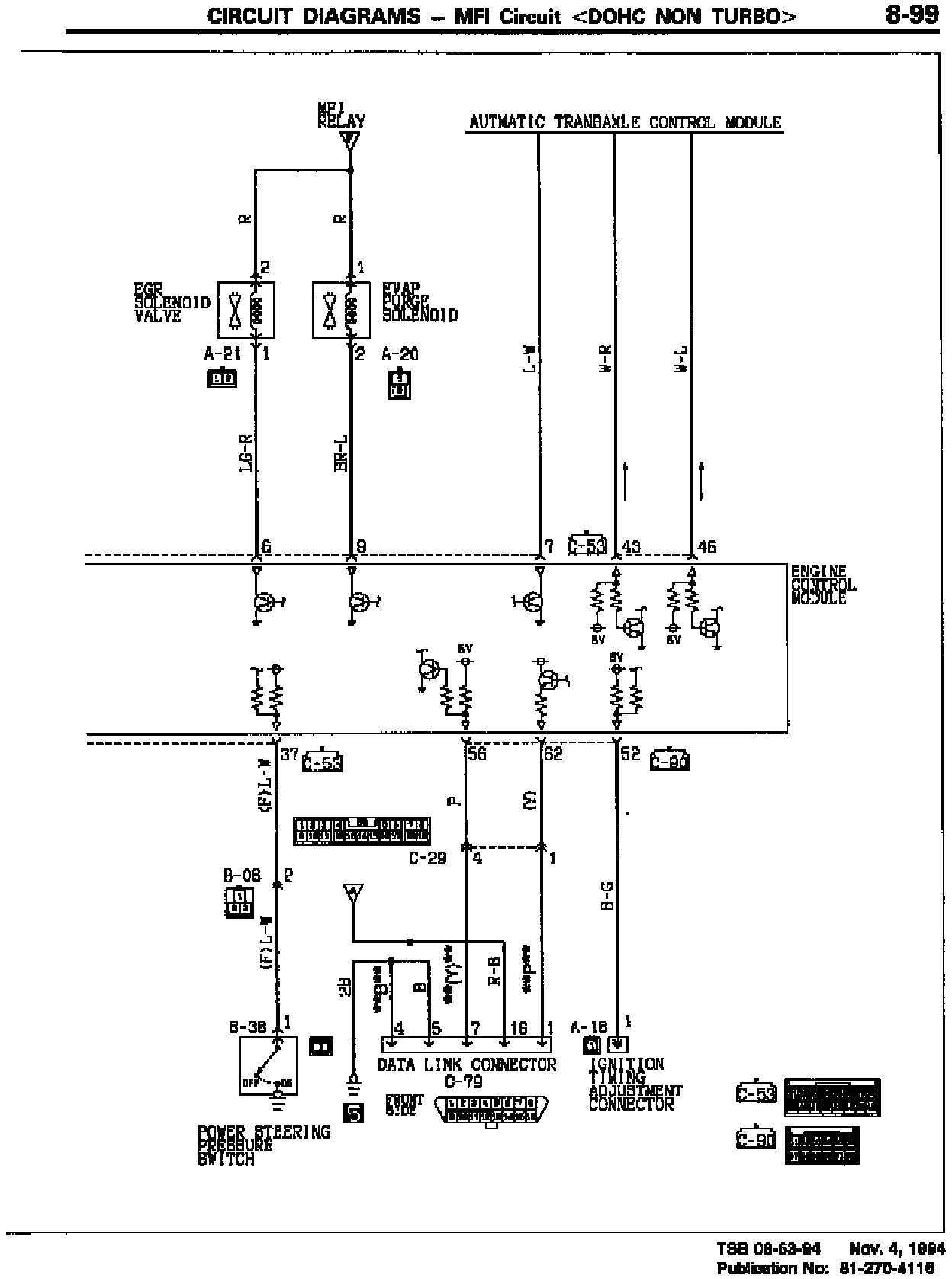

8-99

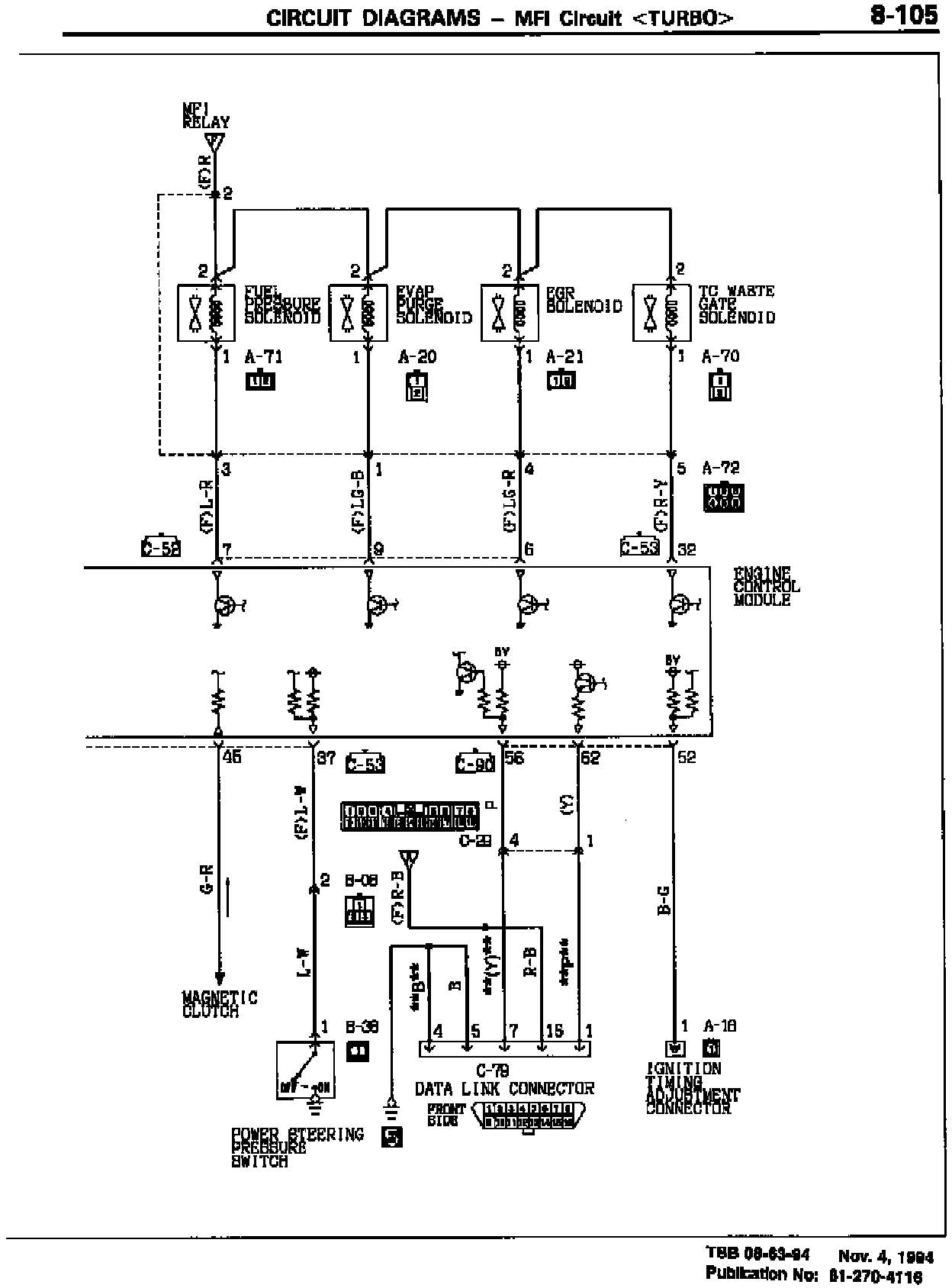

8-105

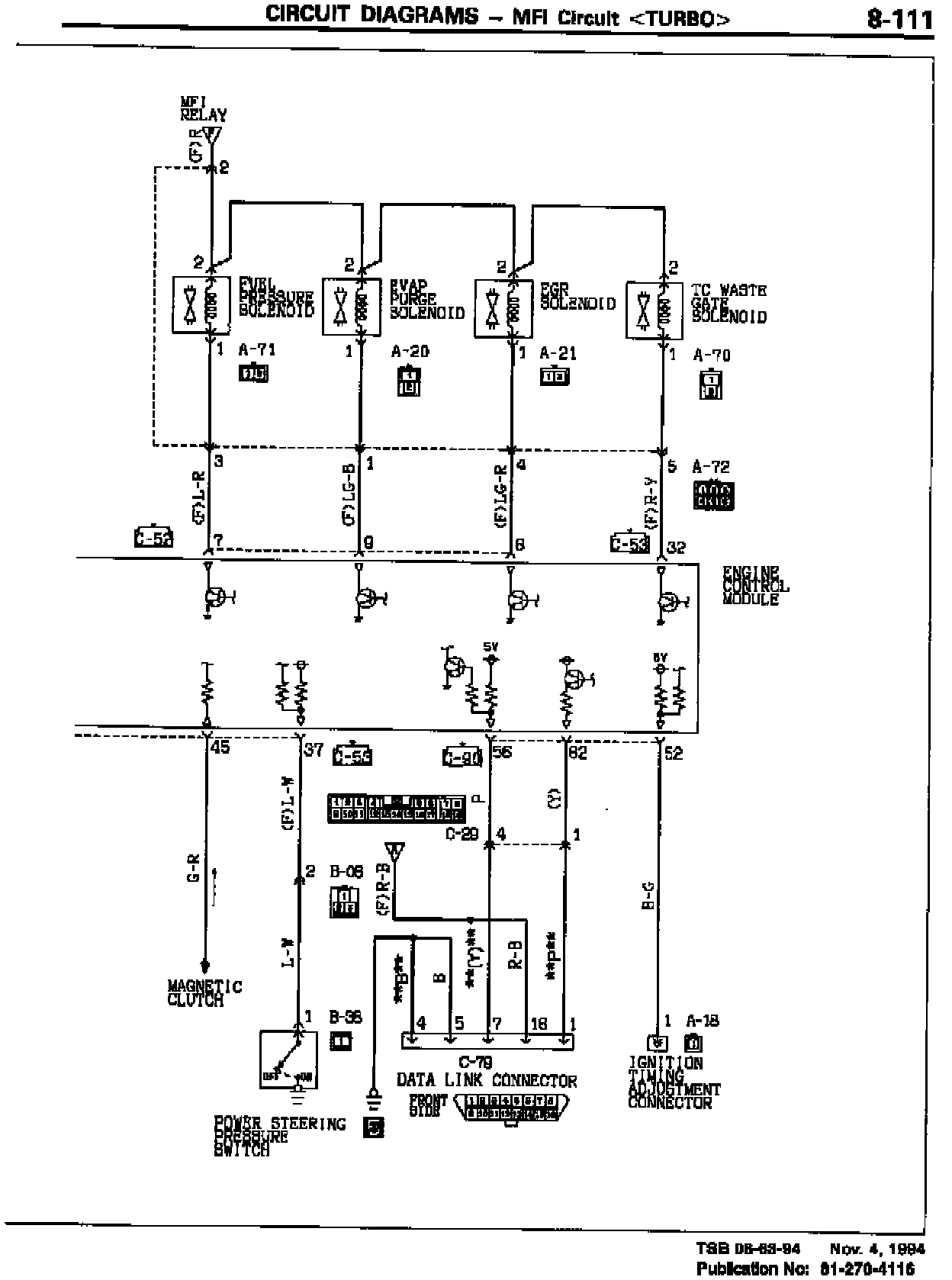

8-111

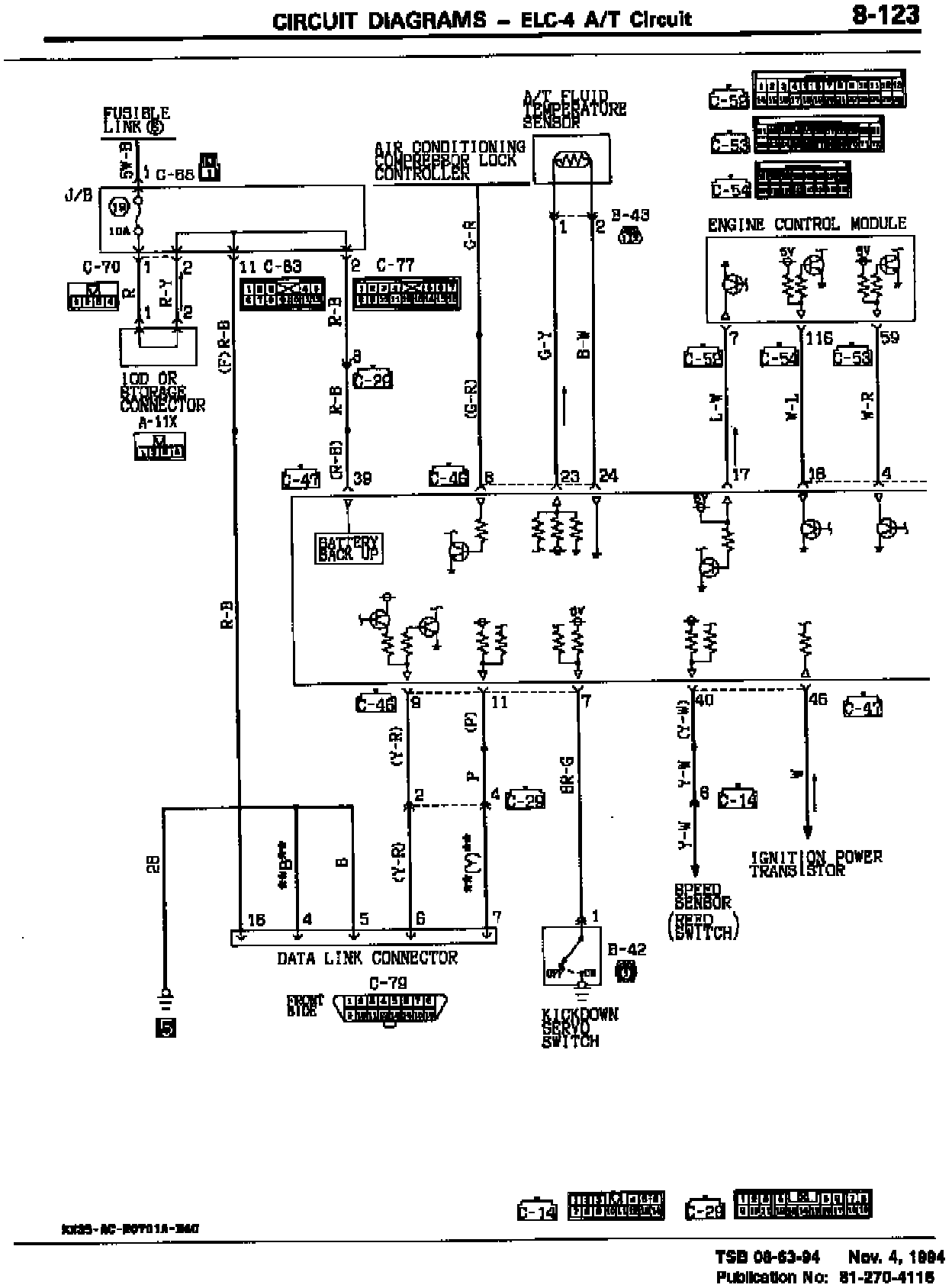

8-123





8-127





8-174





8-182





8-185

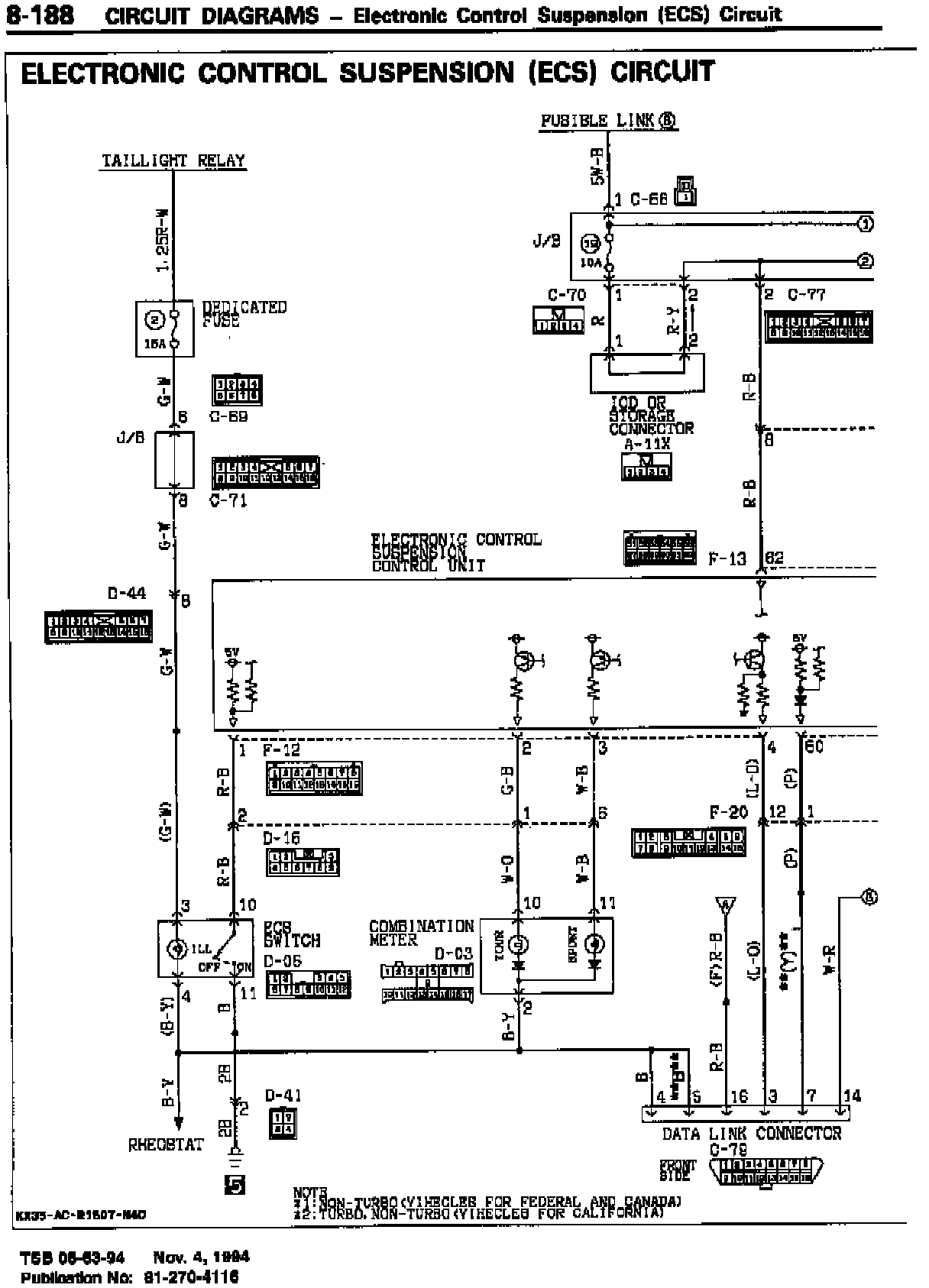

8-188





8-348

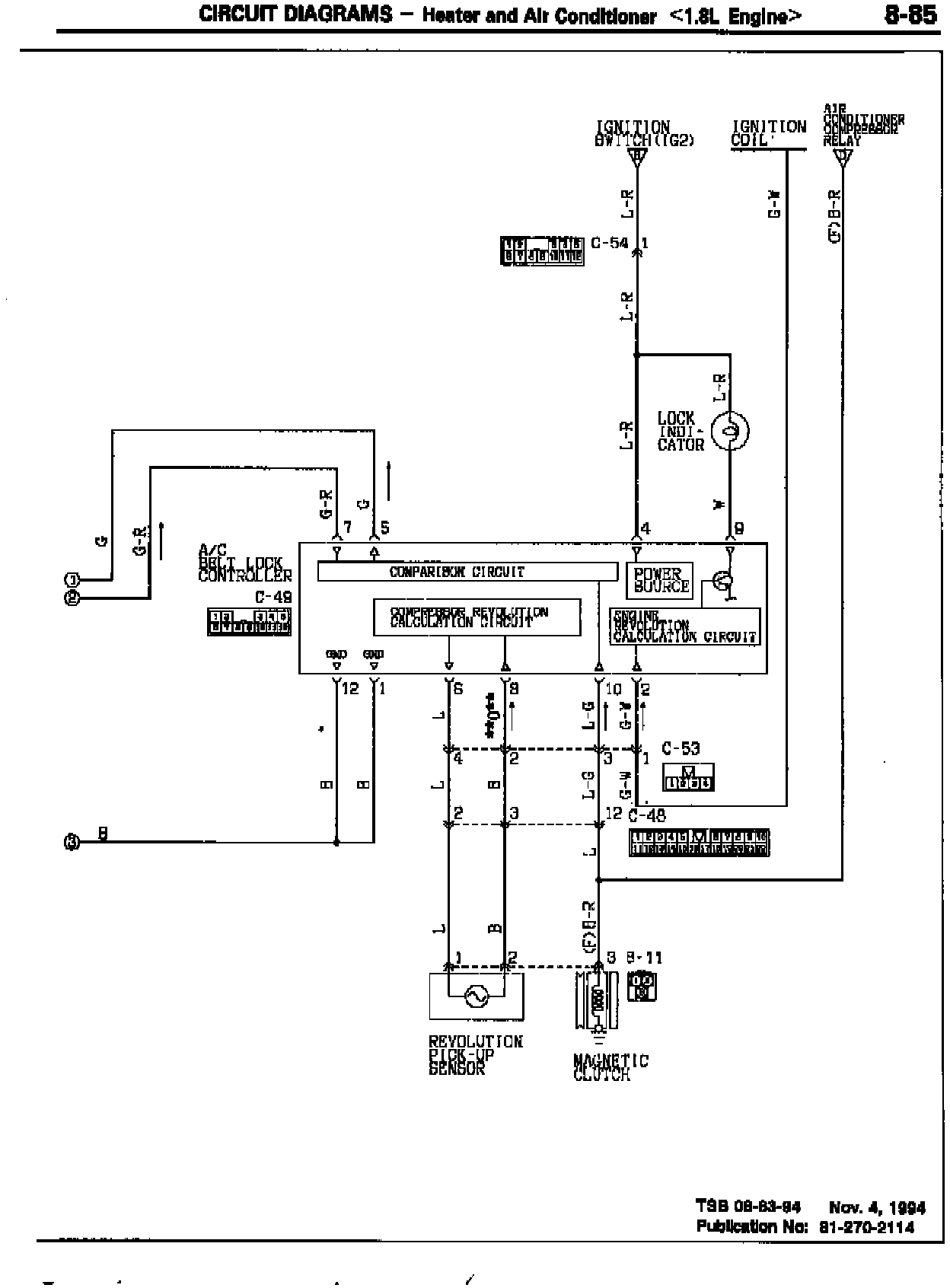

8-85





8-100
