Generator Replacement

1. Disconnect and isolate battery ground cable.
2. Proceed as follows:
a. Remove A/C suction hose clamp nut, then position hose out of the way.
b. Remove righthand bank catalytic converter.

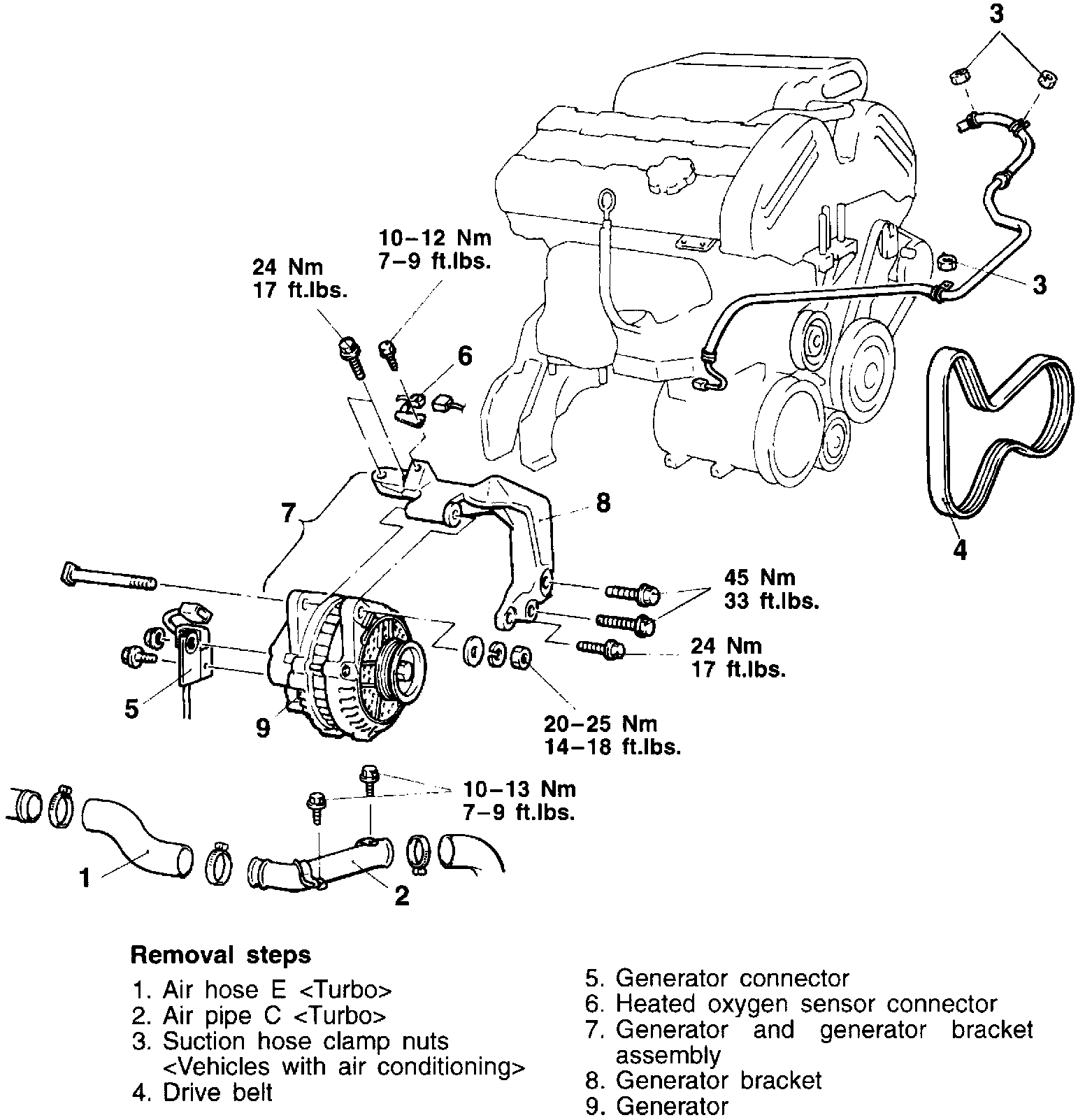

Fig. 1 Alternator Removal:

c. Remove or disconnect all items shown.

3. Take out the generator from behind the surge tank at the center of the vehicle.

4. Reverse procedure to install
