Combination Switch: Service and Repair

Combination Switch Replacement

Steering Column Switch Replacement:

1. Disable airbag as outlined under Maintenance Procedures/Airbag System Disarming.
2. Disconnect battery ground cable.
3. Remove steering wheel as outlined under Steering Wheel Replacement.

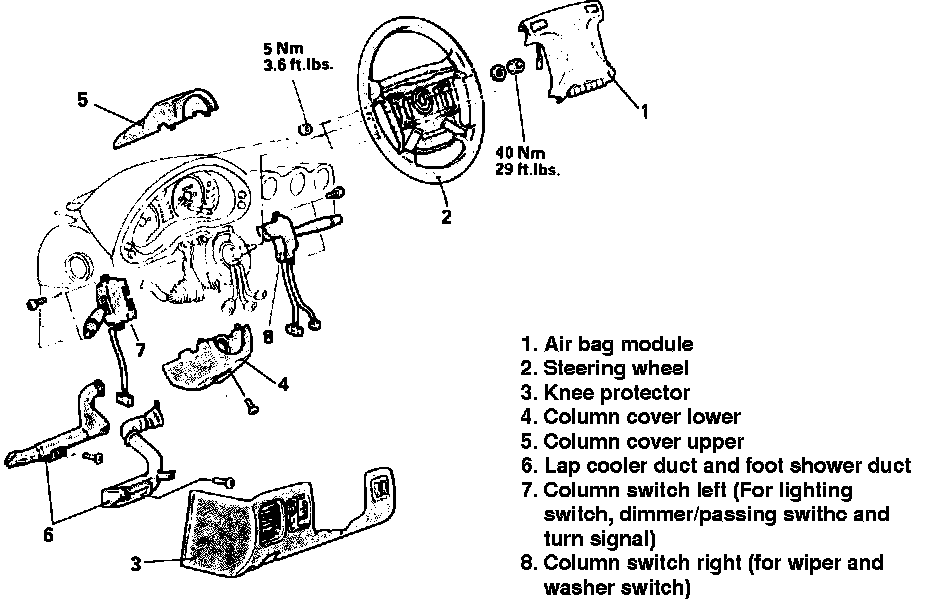

4. Remove turn signal switch as shown, noting the following:
a. Remove steering column cover upper to lower attaching screws, then carefully unsnap upper steering column cover from lower.
5. Reverse procedure to install, enabling airbag as outlined underMaintenance Procedures/Airbag System Disarming.
