Electronic Brake Control Module: Locations

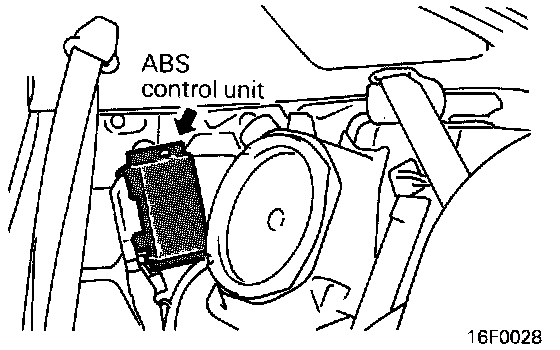

ABS Control Unit:

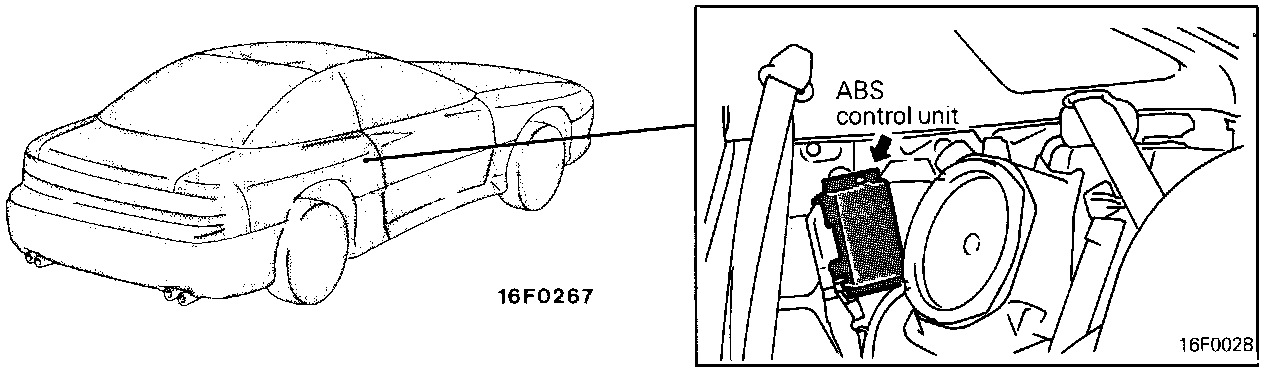

ABS Control Unit:






The ABS Control Module is located in the right rear "B" pillar area, behind the trim panel.
