Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
Spark Plug Cable:
1.
Check cap and coating for cracks.
2.

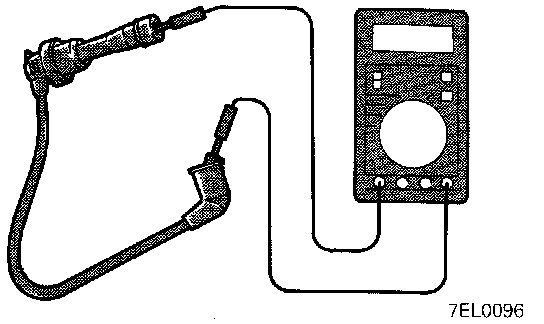

Measure resistance.
Limit: Max. 22 k-Ohms
