NS-9A Repairing A No Crank Condition

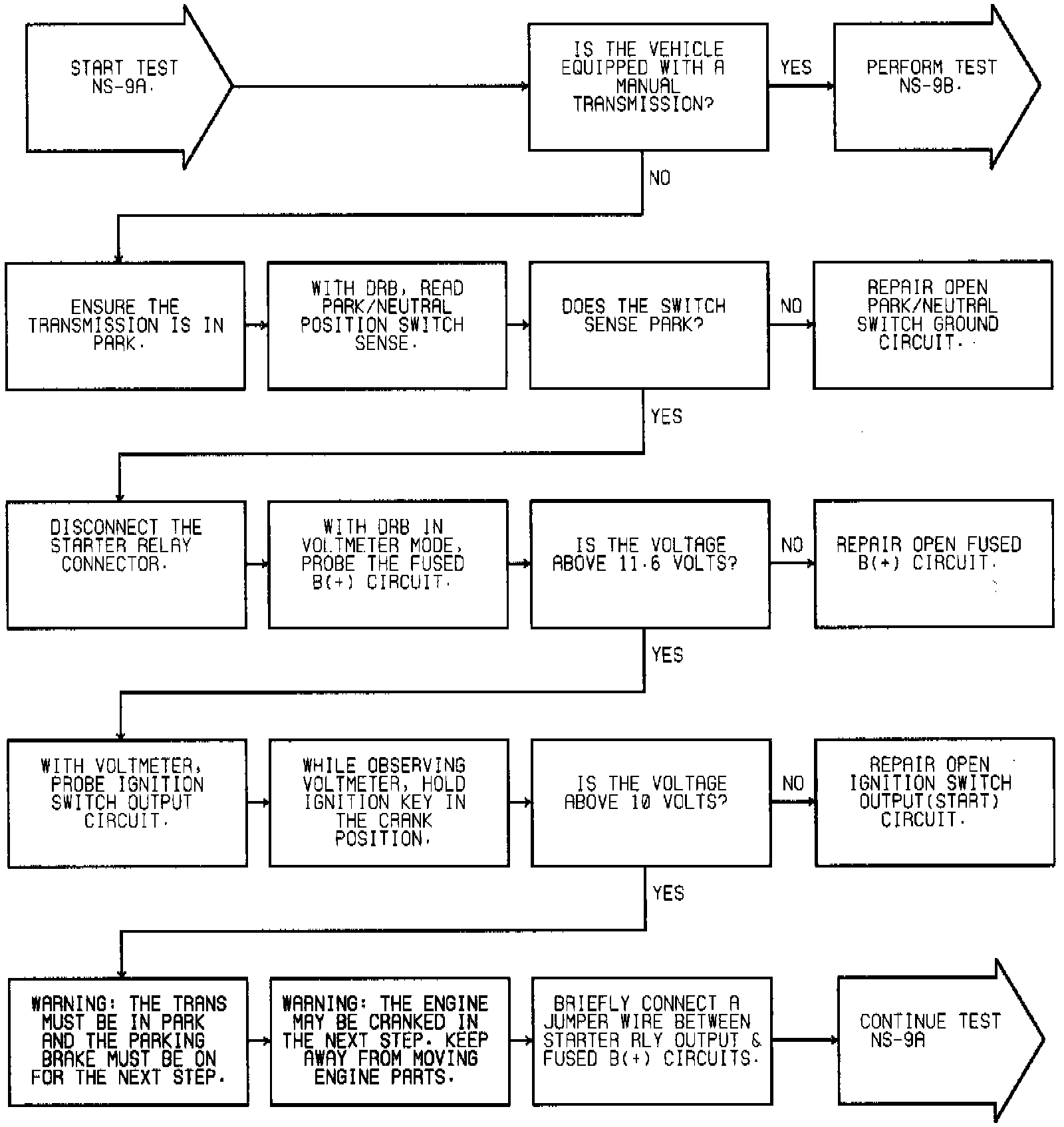

Fig. 57 Test NS-9A: Repairing A No Crank Condition (Part 1 Of 3):

Fig. 57 Test NS-9A: Repairing A No Crank Condition (Part 2 Of 3):

Fig. 57 Test NS-9A: Repairing A No Crank Condition (Part 3 Of 3):
