NS-7A Checking the Idle Air Control Motor Operation

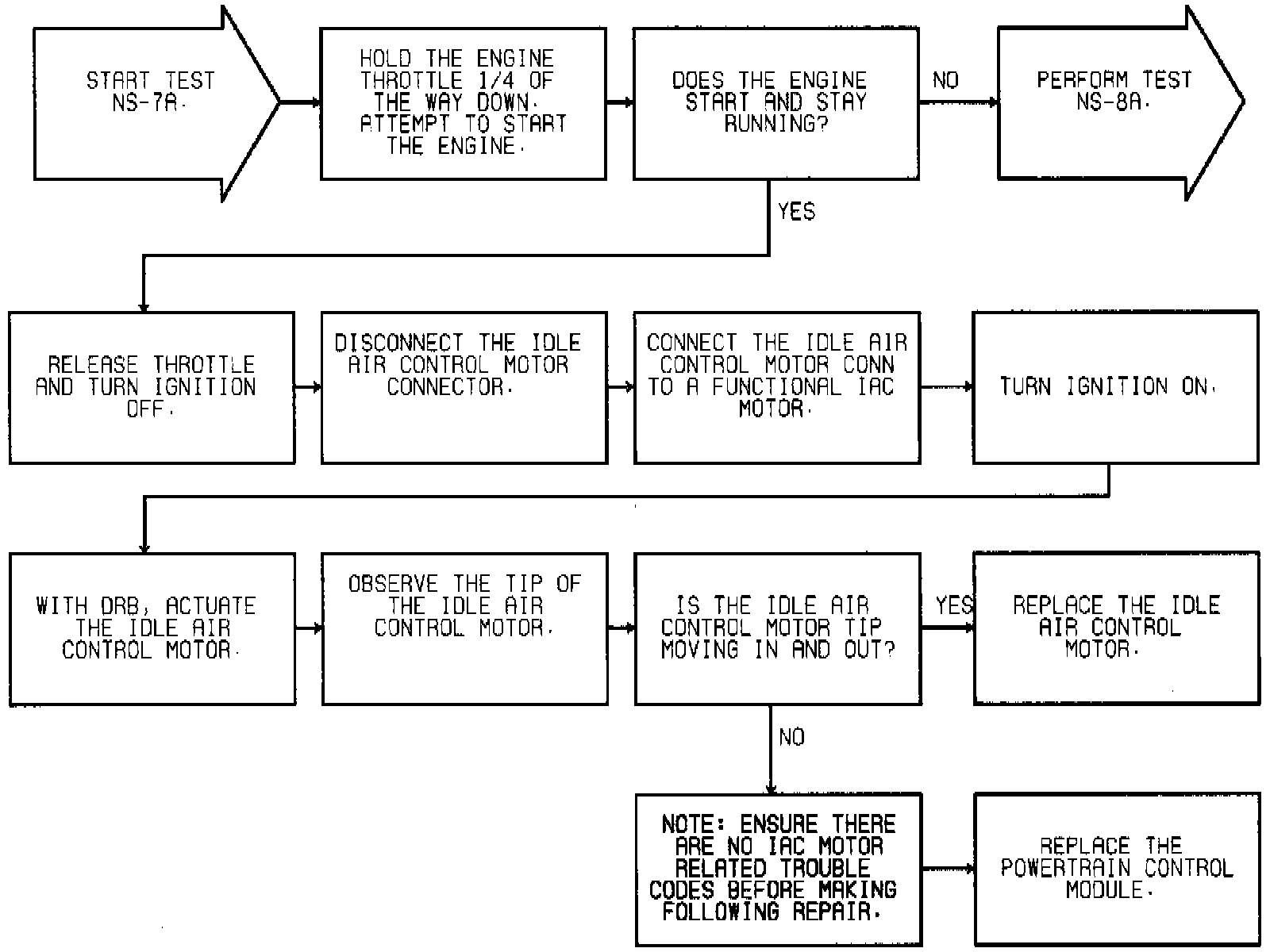

Fig. 55 Test NS-7A: Checking The Idle Air Control Motor Operation:
