NS-5A Checking the Fuel Pump

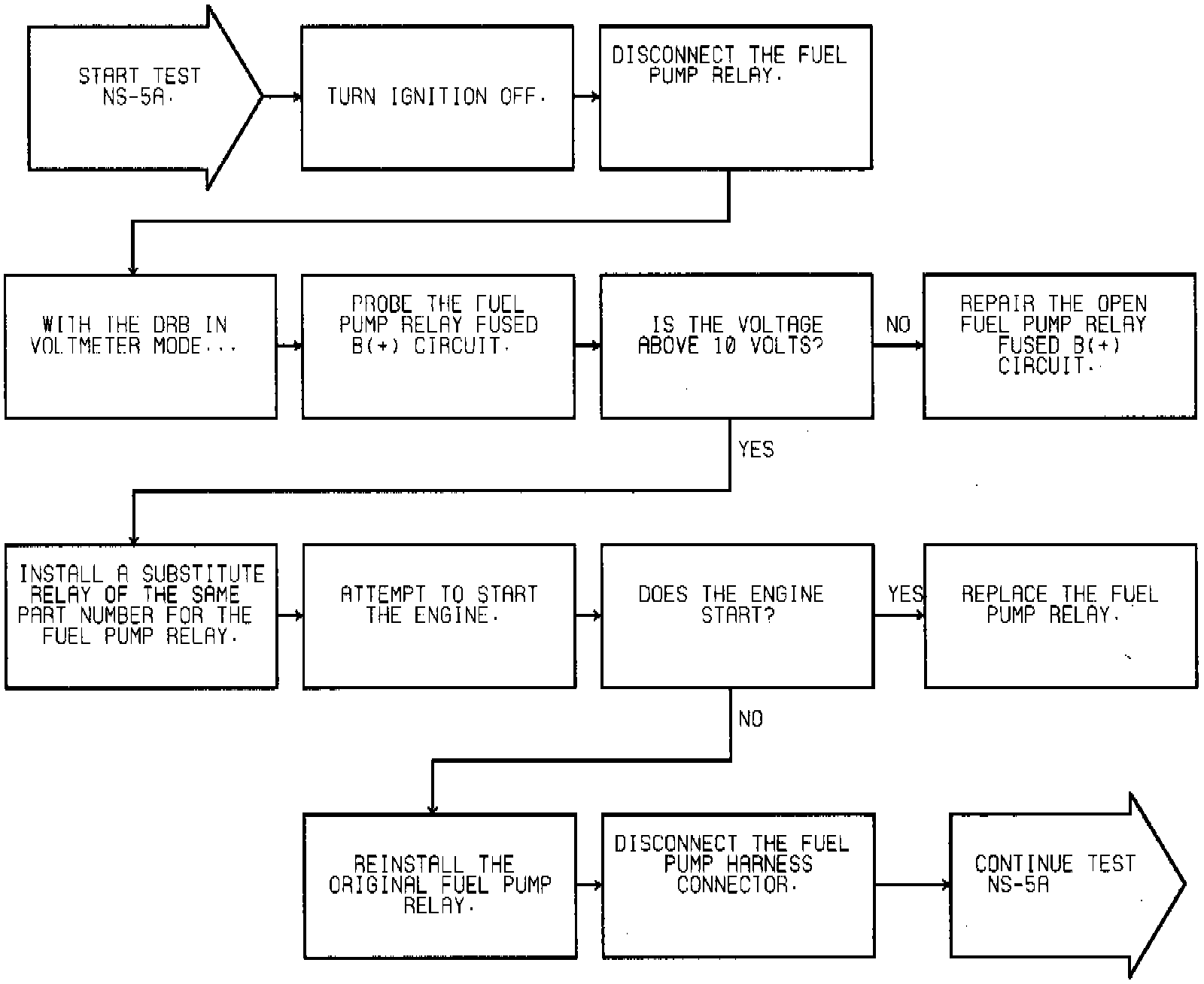

Fig. 51 Test NS-5A: Checking The Fuel Pump (Part 1 Of 2):

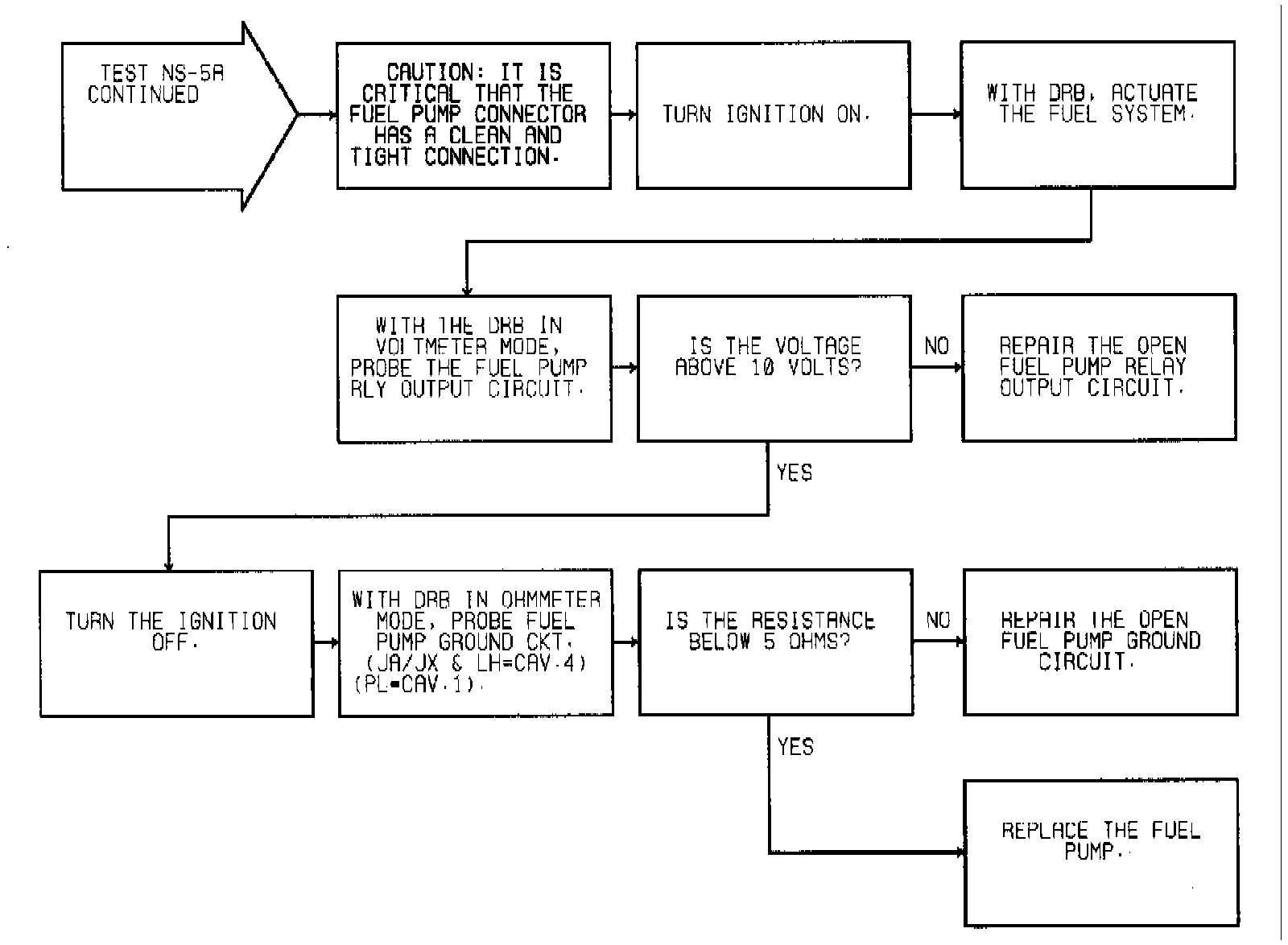

Fig. 51 Test NS-5A: Checking The Fuel Pump (Part 2 Of 2):
