NS-4E Repairing Low Fuel Pressure

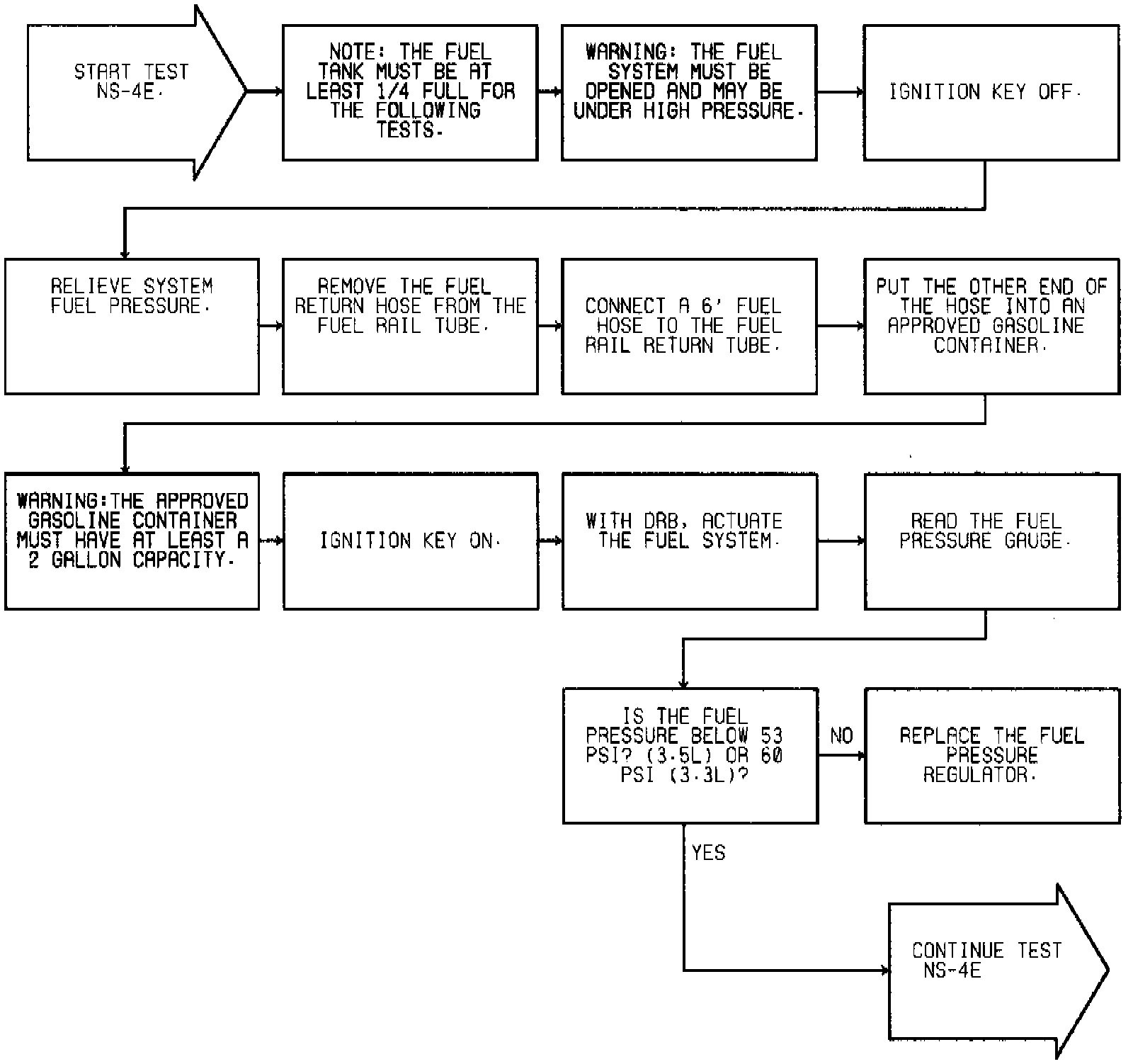

Fig. 50 Test NS-4E: Repairing Low Fuel Pressure (Part 1 Of 2):

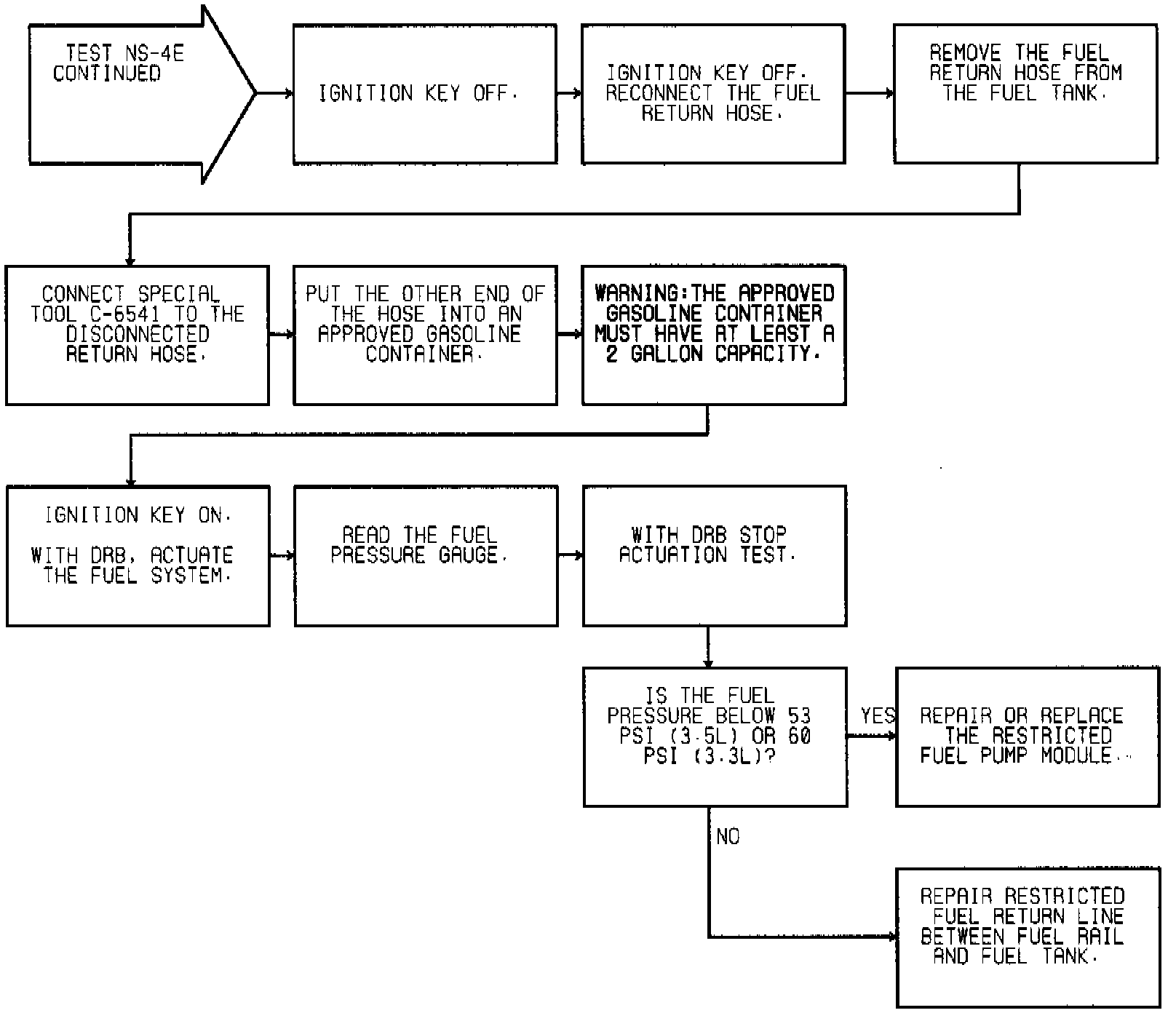

Fig. 50 Test NS-4E: Repairing Low Fuel Pressure (Part 2 Of 2):
