Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-3A Checking the Engine Mechanical Systems

NS-3A Checking the Engine Mechanical Systems

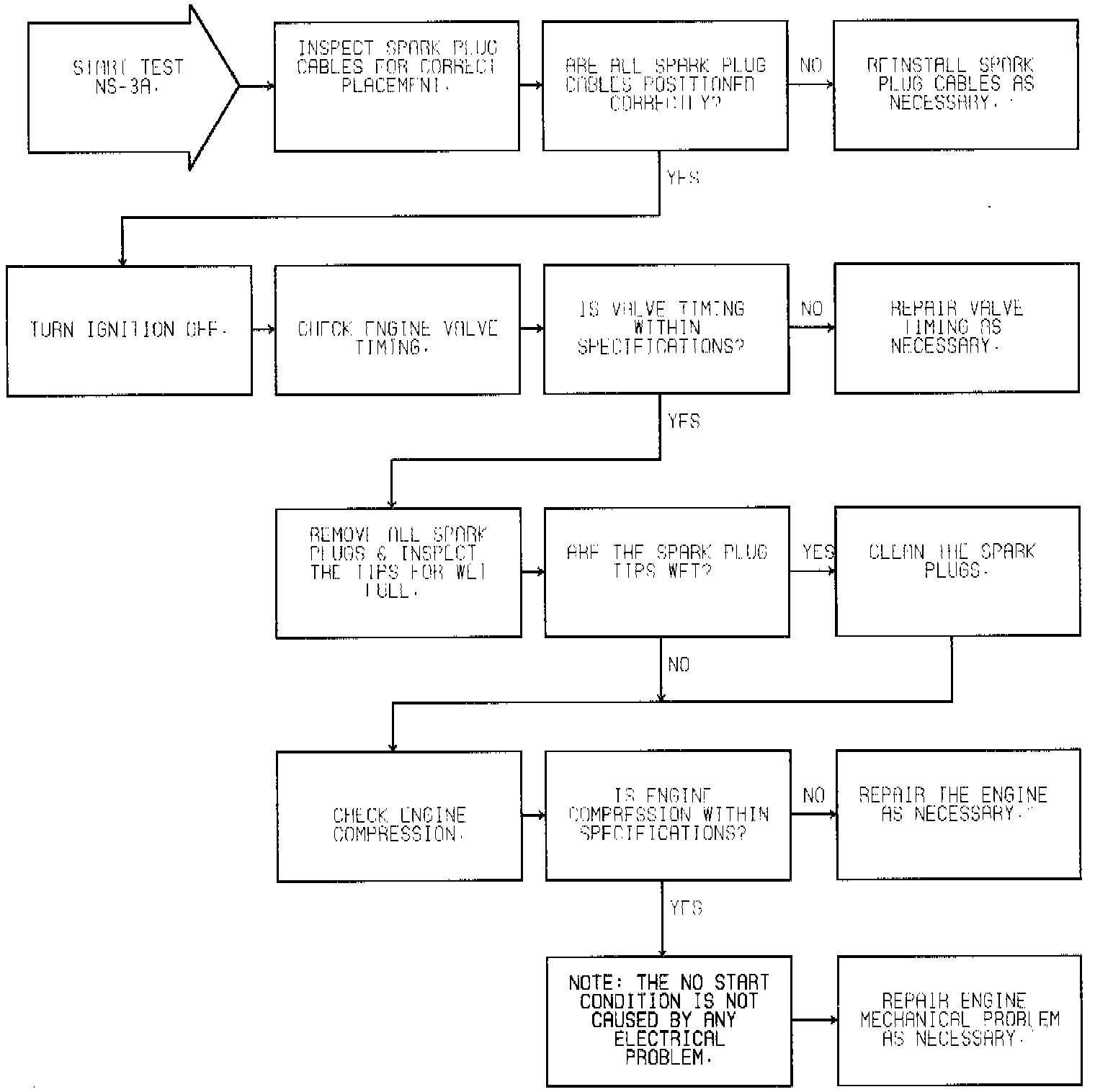

Fig. 45 Test NS-3A: Checking The Engine Mechanical Systems:
