NS-2A Checking Fuel System

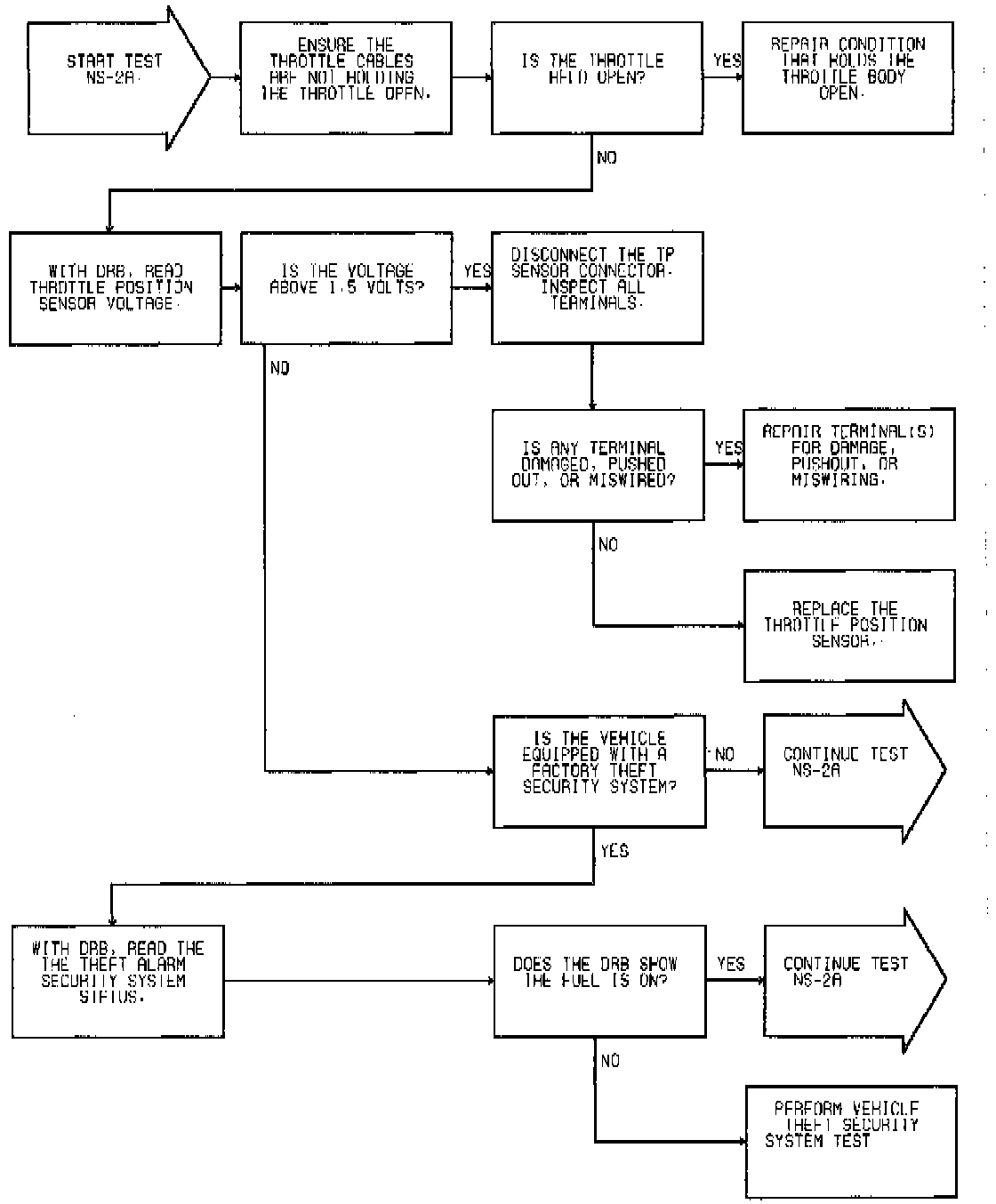

Fig. 44 Test NS-2A: Checking Fuel System (Part 1 Of 2):

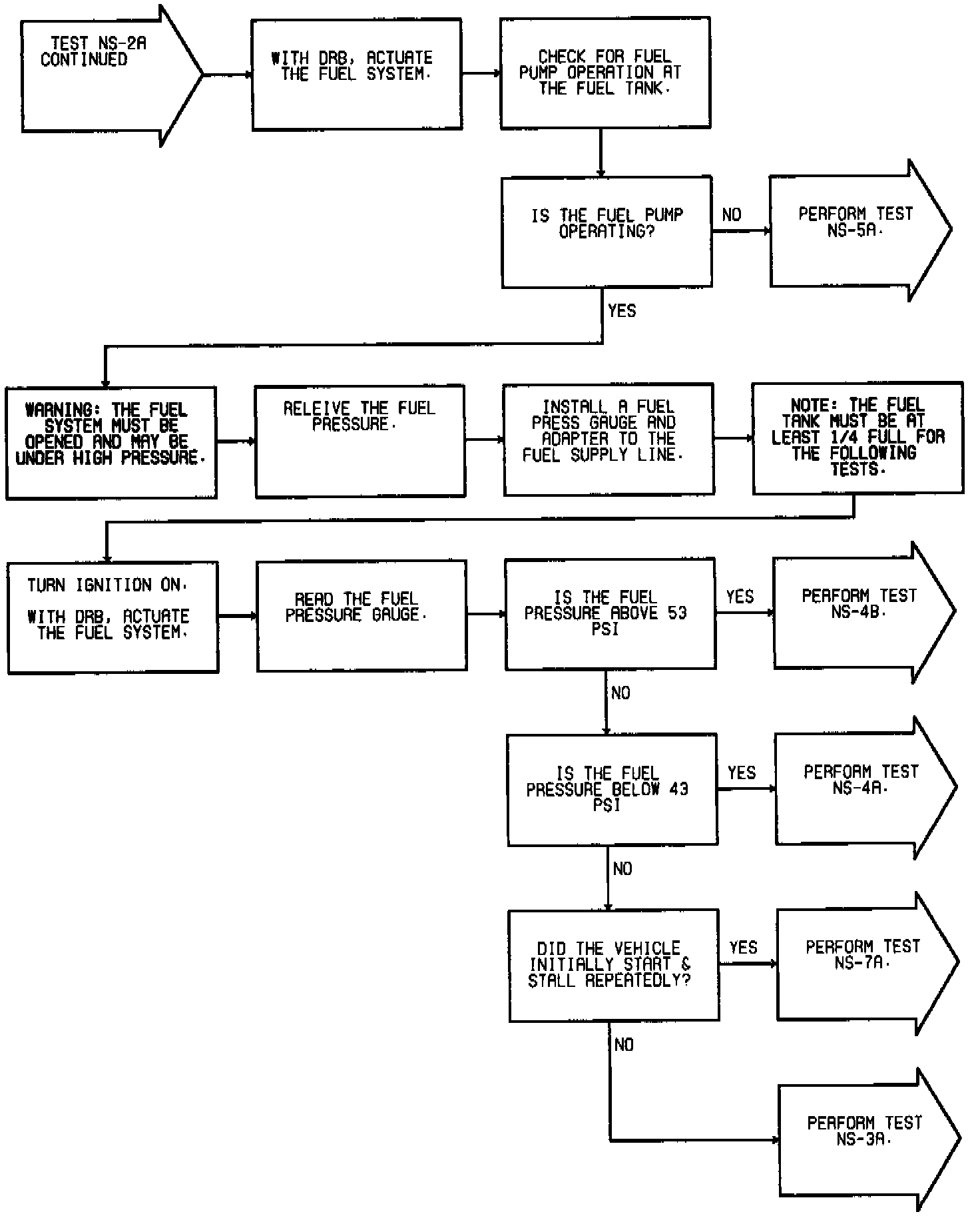

Fig. 44 Test NS-2A: Checking Fuel System (Part 2 Of 2):
