NS-1B Qualifying A No Start Condition

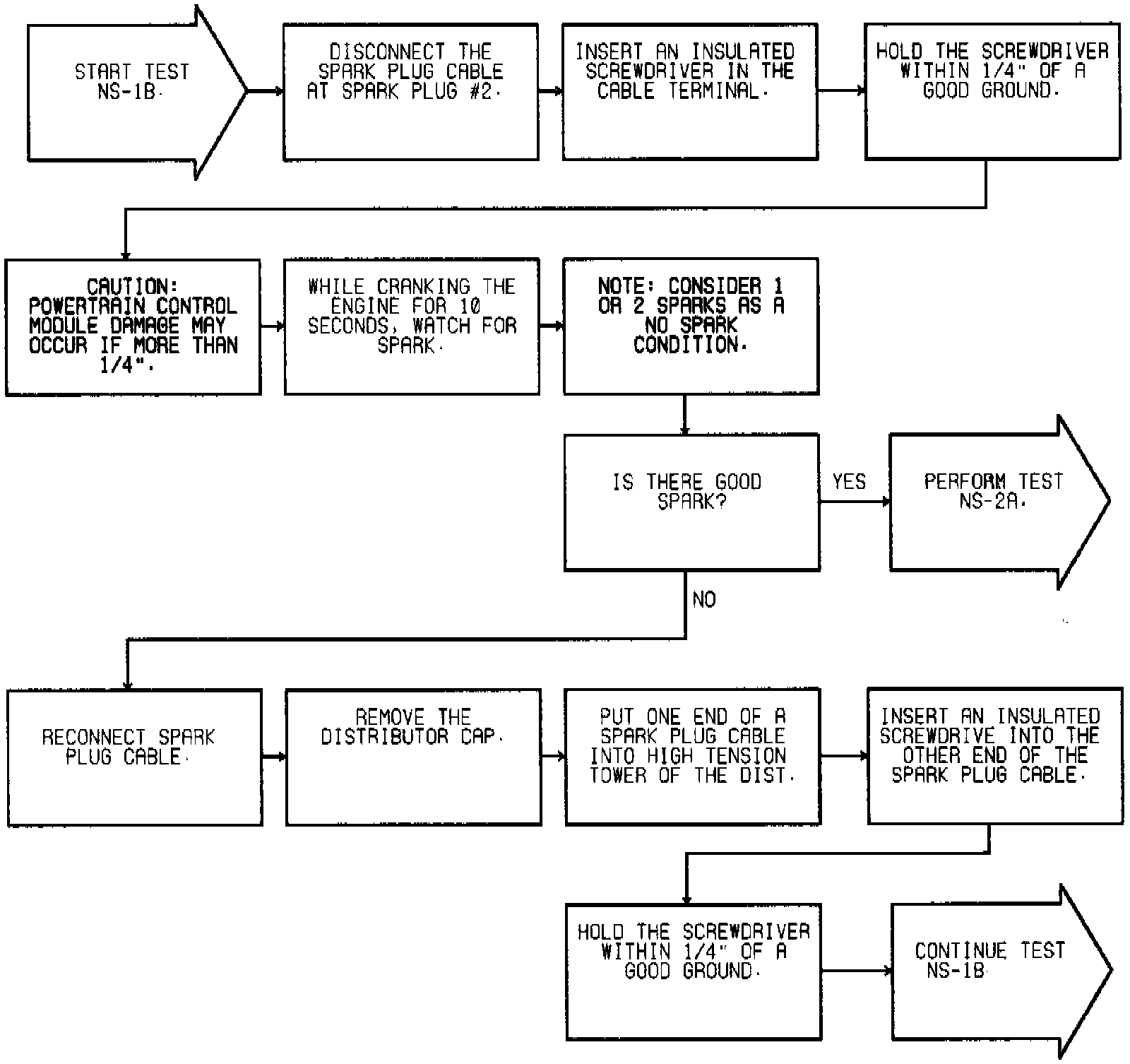

Fig. 43 Test NS-1B: Qualifying A No Start Condition (Part 1 Of 4):

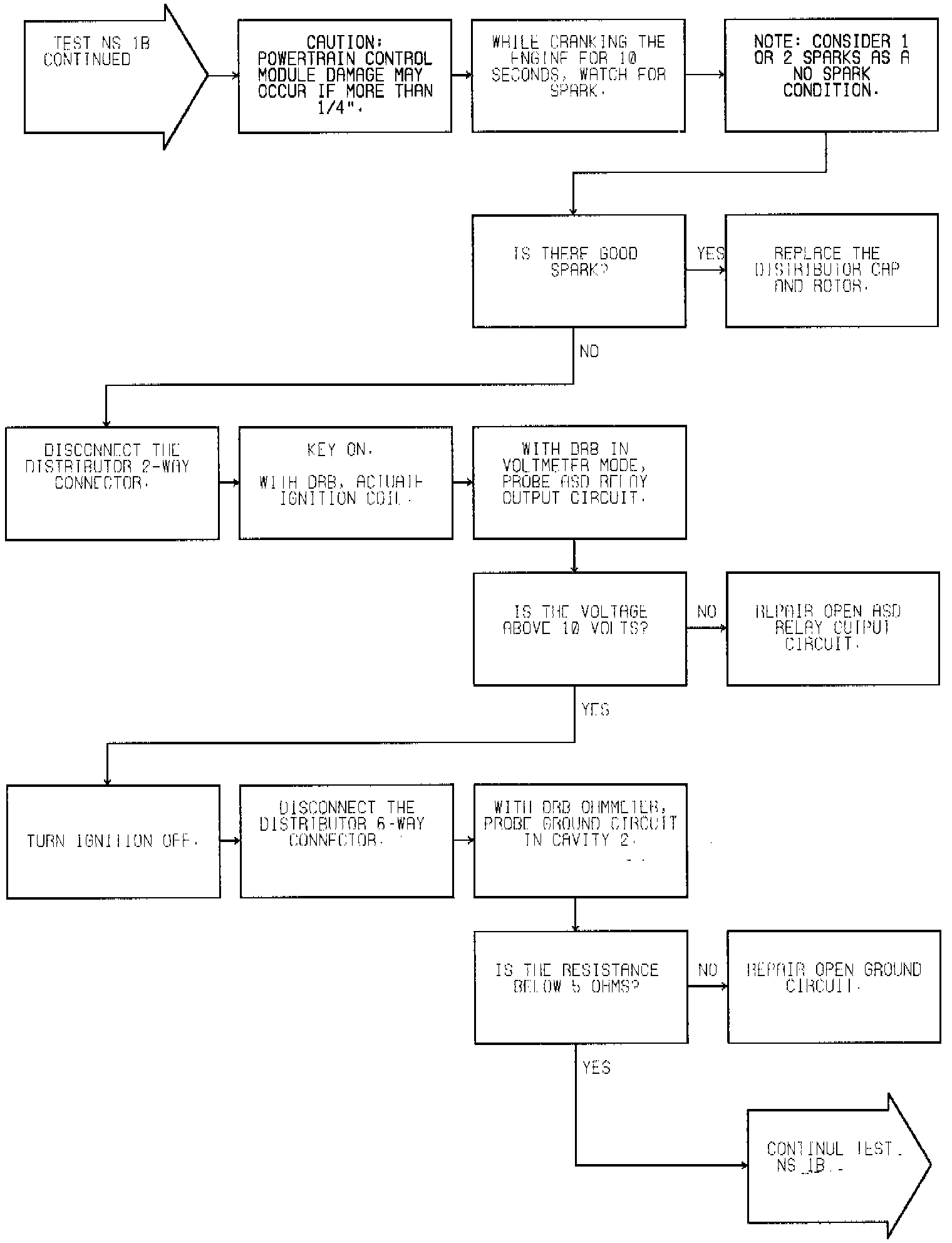

Fig. 43 Test NS-1B: Qualifying A No Start Condition (Part 2 Of 4):

Fig. 43 Test NS-1B: Qualifying A No Start Condition (Part 3 Of 4):

Fig. 43 Test NS-1B: Qualifying A No Start Condition (Part 4 Of 4):
