Vehicle Speed Sensor Inspection

Vehicle Speed Sensor Inspection:

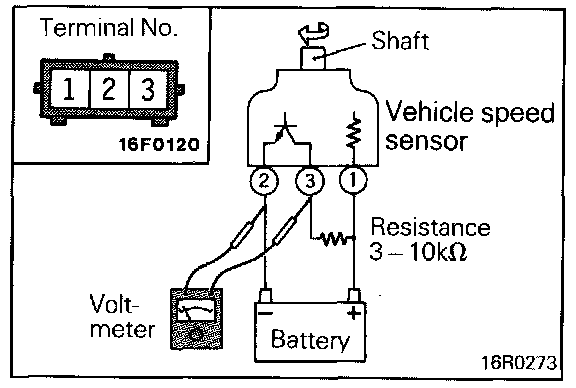

1. Remove the vehicles speed sensor and connect as shown in the illustration, using a 3 - 10 kOhms resistance.

2. Use a voltmeter to check for voltage at terminals 2 and 3 when the pulse generator shaft is turning. (One revolution is four pulses.)
