Engine Coolant Temperature Sensor Description

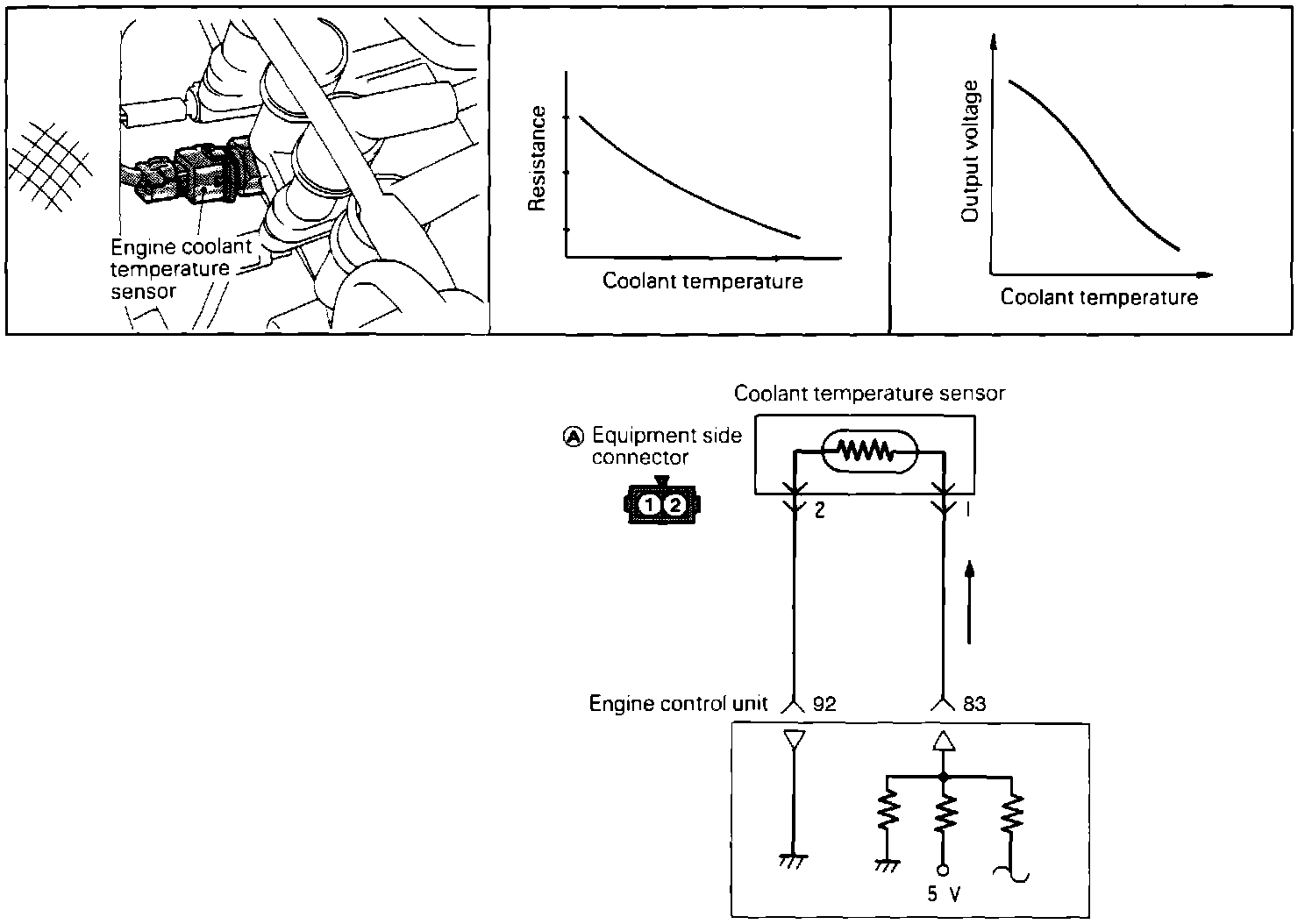

Coolant Temperature Sensor:

CONSTRUCTION
The Coolant Temperature Sensor is a thermistor type sensor.

Engine Coolant Temperature Sensor Circuit:

OPERATION
As engine temperature increases, sensor resistance decreases. The Engine Control Module (ECM) monitors engine temperature by the sensor output voltage and provides optimum fuel enrichment when the engine is cold.
