Keys To Diagrams

How To Read Wiring Diagrams:

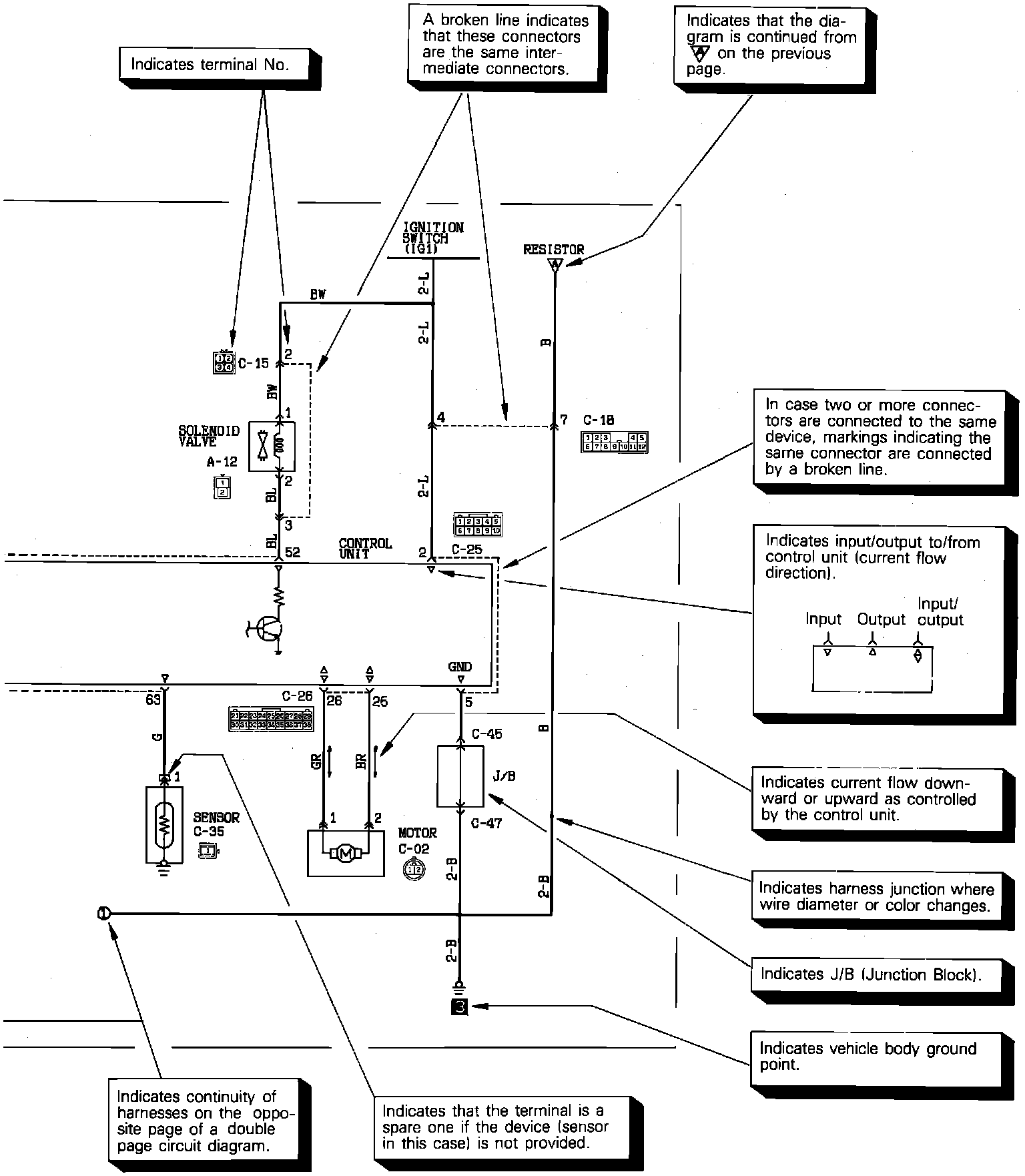

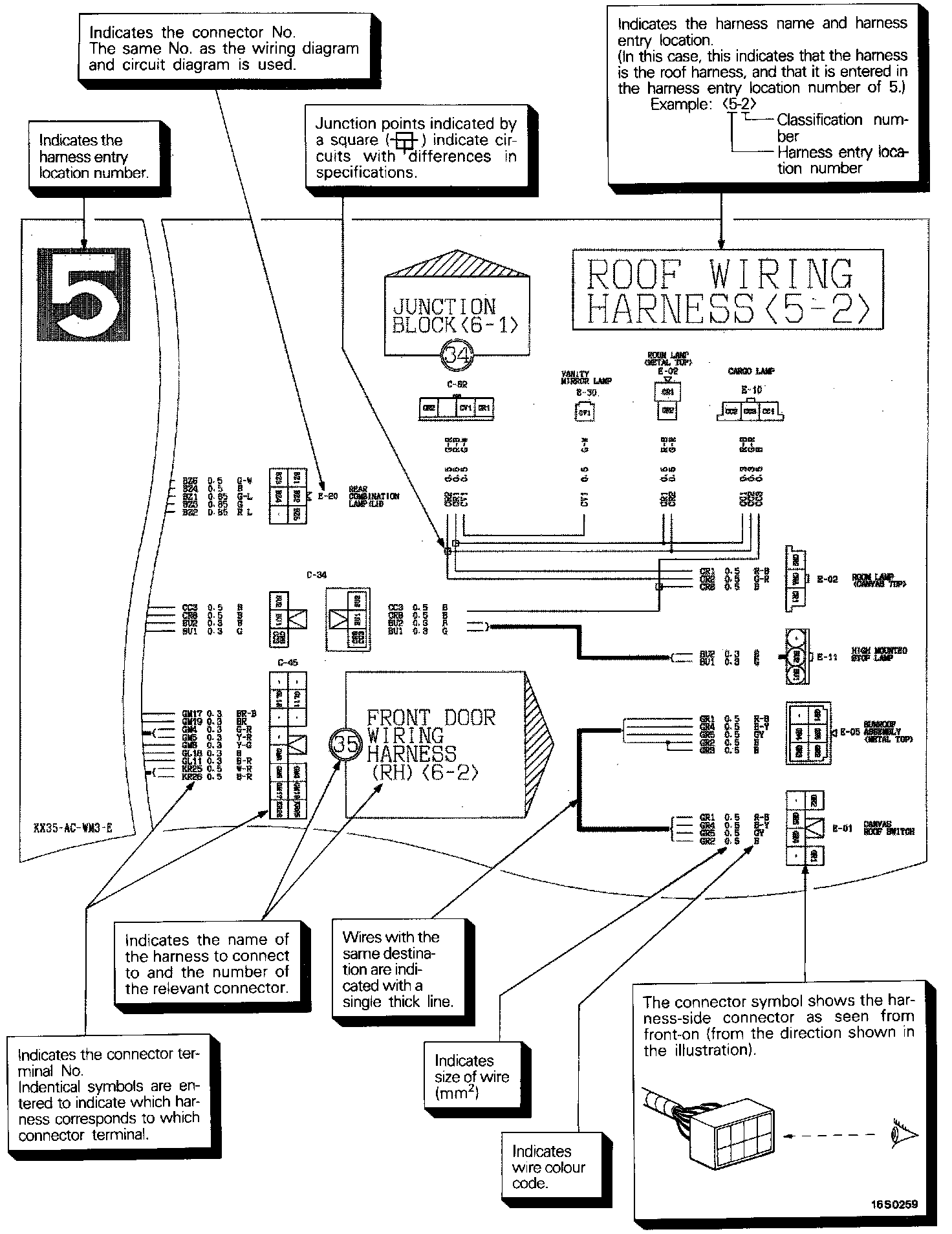

Symbol Identification And Key To Wiring Diagrams:

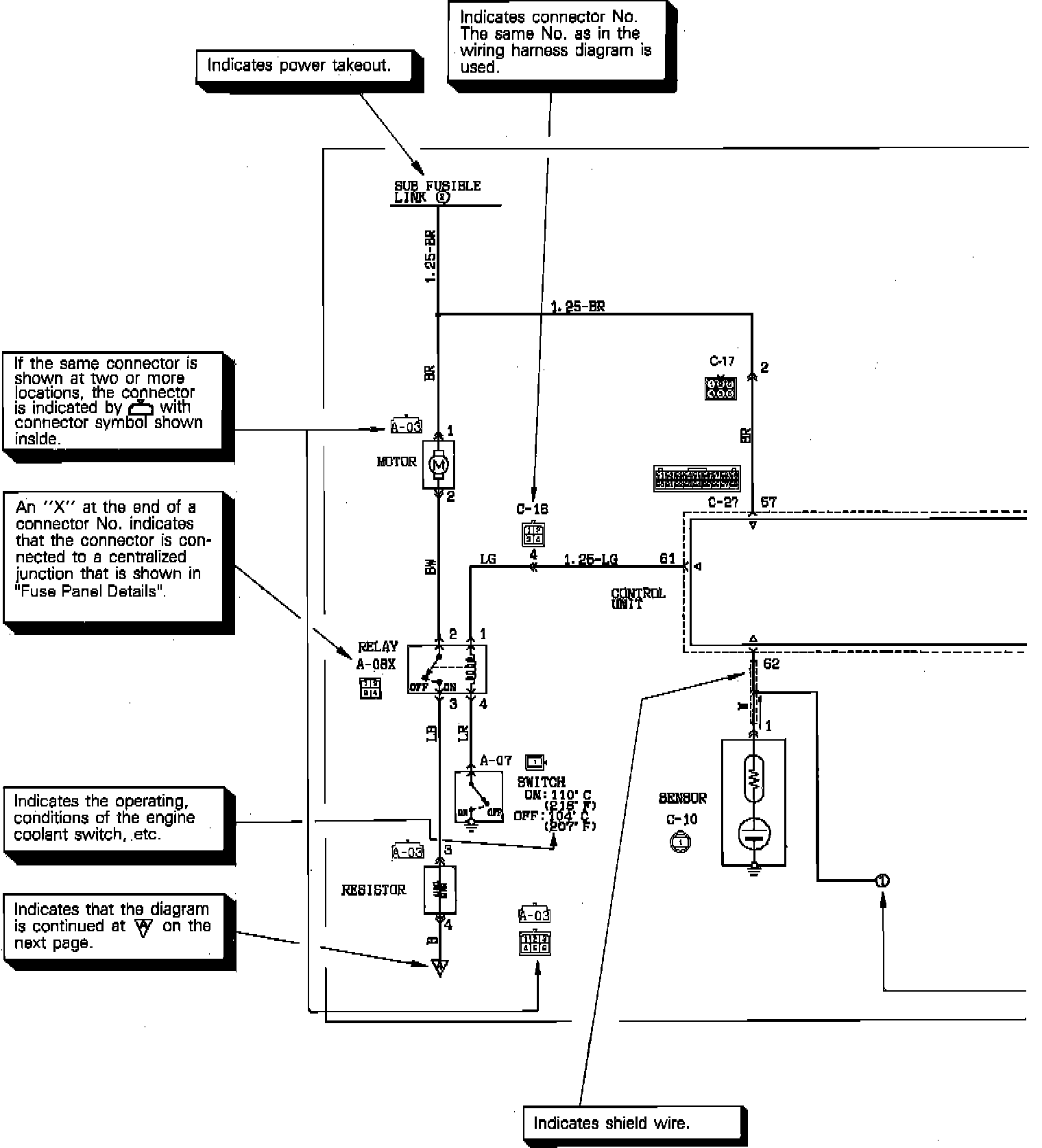

Symbol Identification And Key To Wiring Diagrams:
