Fog/Driving Lamp: Service and Repair

Fog Light Aiming

Fog Light Aiming:

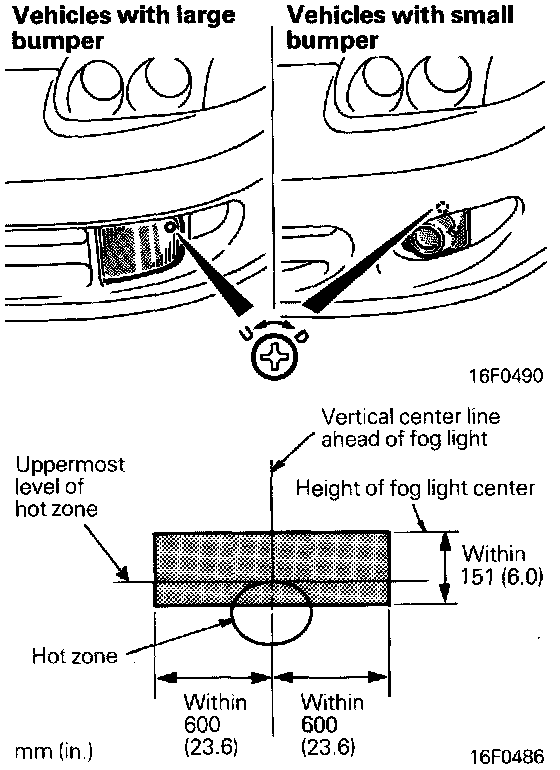

1. Place vehicle on a known level floor 7.6 m (25 feet) from aiming screen or light colored wall.

2. Adjust the adjusting screw so that the top end of high intensity area may come to the same level as the fog light center height.
