Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Exploded Views >> Vehicles With Small Bumper

Vehicles With Small Bumper

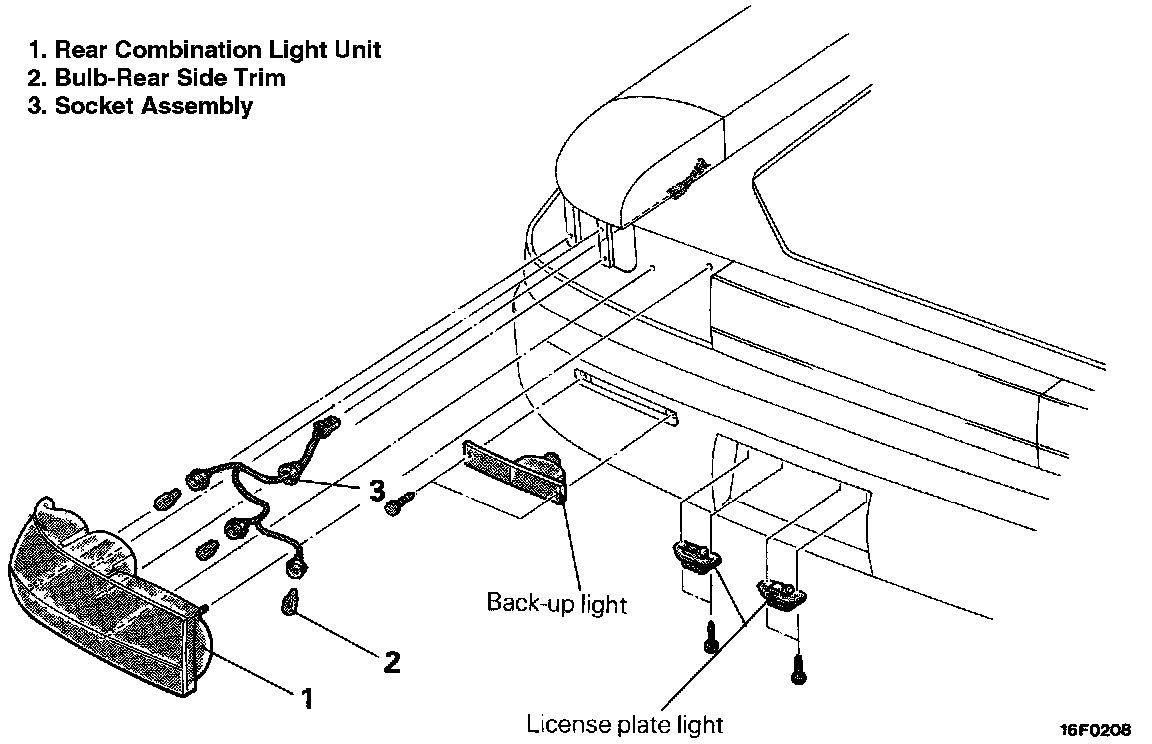

Rear Combination Light: Back-Up Light And License Plate Light <Vehicles With Small Bumper>:
