Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Exploded Views >> Vehicles With Large Bumper

Vehicles With Large Bumper

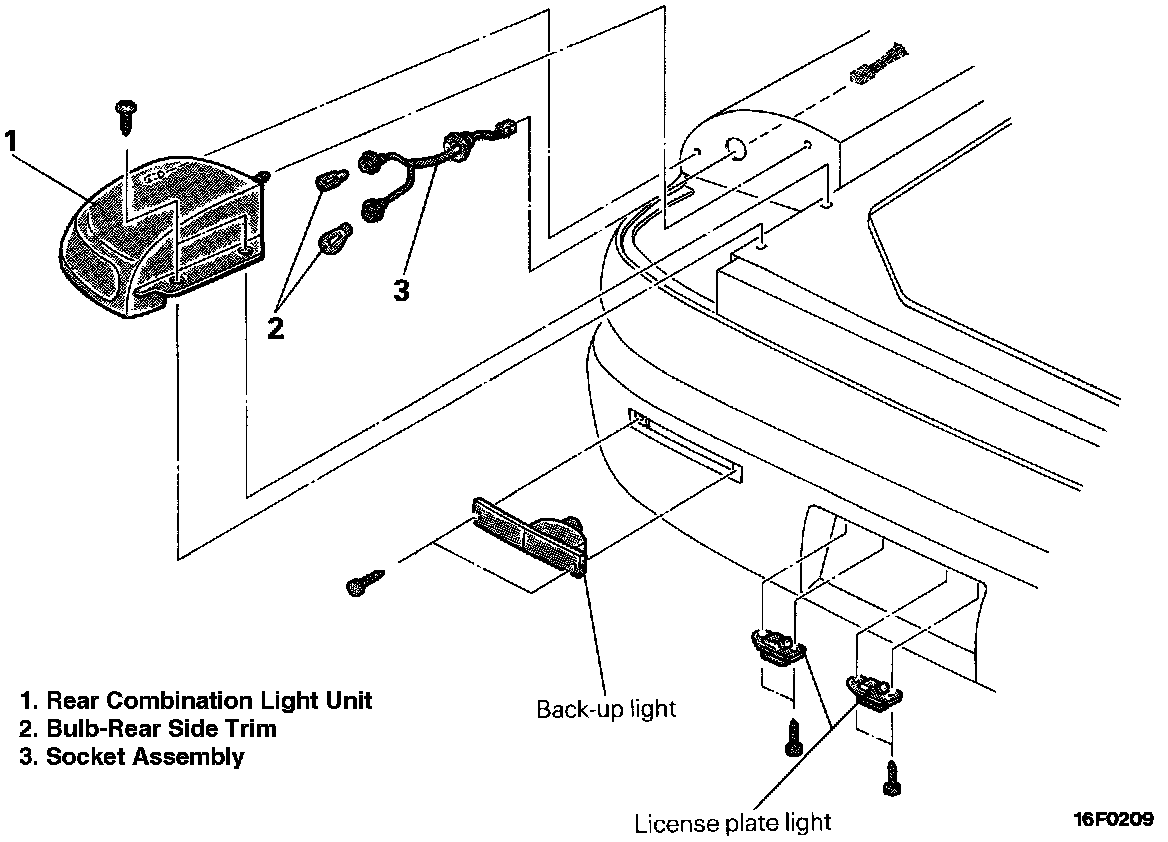

Rear Combination Light: Back-Up Light And License Plate Light <Vehicles With Large Bumper>:
