Unit Inspection

To check, remove engine coolant temperature gauge unit from the thermostat housing of the DOHC engine.

Engine Coolant Temperature Gauge Unit Resistance

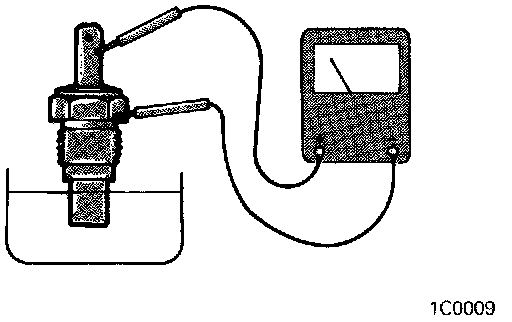

Engine Coolant Temperature Gauge Unit Inspection: Step (1):

1. Immerse unit in 70°C (1 58°F) water to measure resistance.
Standard value: 104 +/- 13.5 Ohms

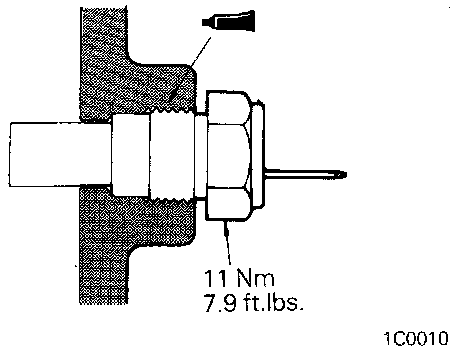

Engine Coolant Temperature Gauge Unit Inspection: Step (2):

2. After checking, apply the specified sealant around the thread of engine coolant temperature gauge unit and install on the thermostat housing of the DOHC engine.
Specified sealant: MOPAR Part No.4318034 or equivalent
