Resistance Inspection

Engine Coolant Temperature Gauge Inspection:

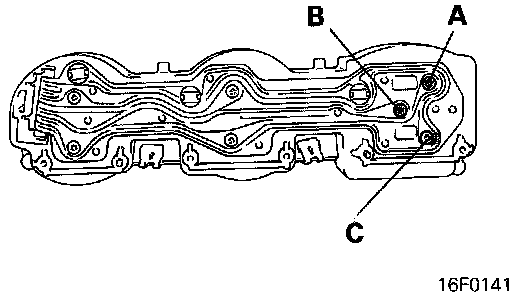

1. Remove the IG terminal screw from area A.

2. Measure resistance between terminals with circuit tester.
CAUTION:
For inspection, use a circuit tester which uses a measurement current of 4mA or less.

Standard value:

A - B Approx. 51 Ohms

A - C Approx. 139 Ohms

B - C Approx. 190 Ohms
