D Connectors - Instrument Panel and Floor Console

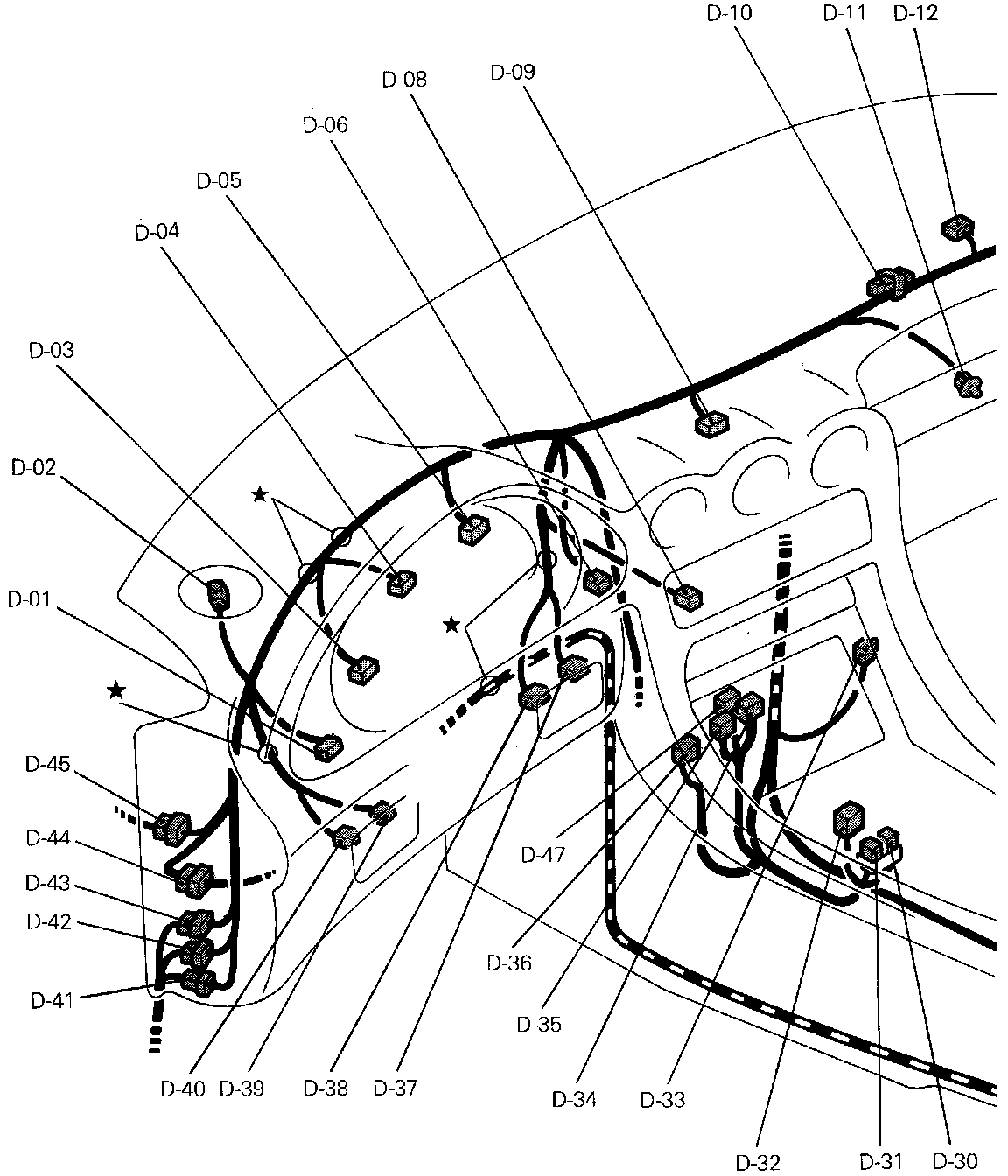

D Connectors - Instrument Panel & Floor Console (Part 1 Of 2):

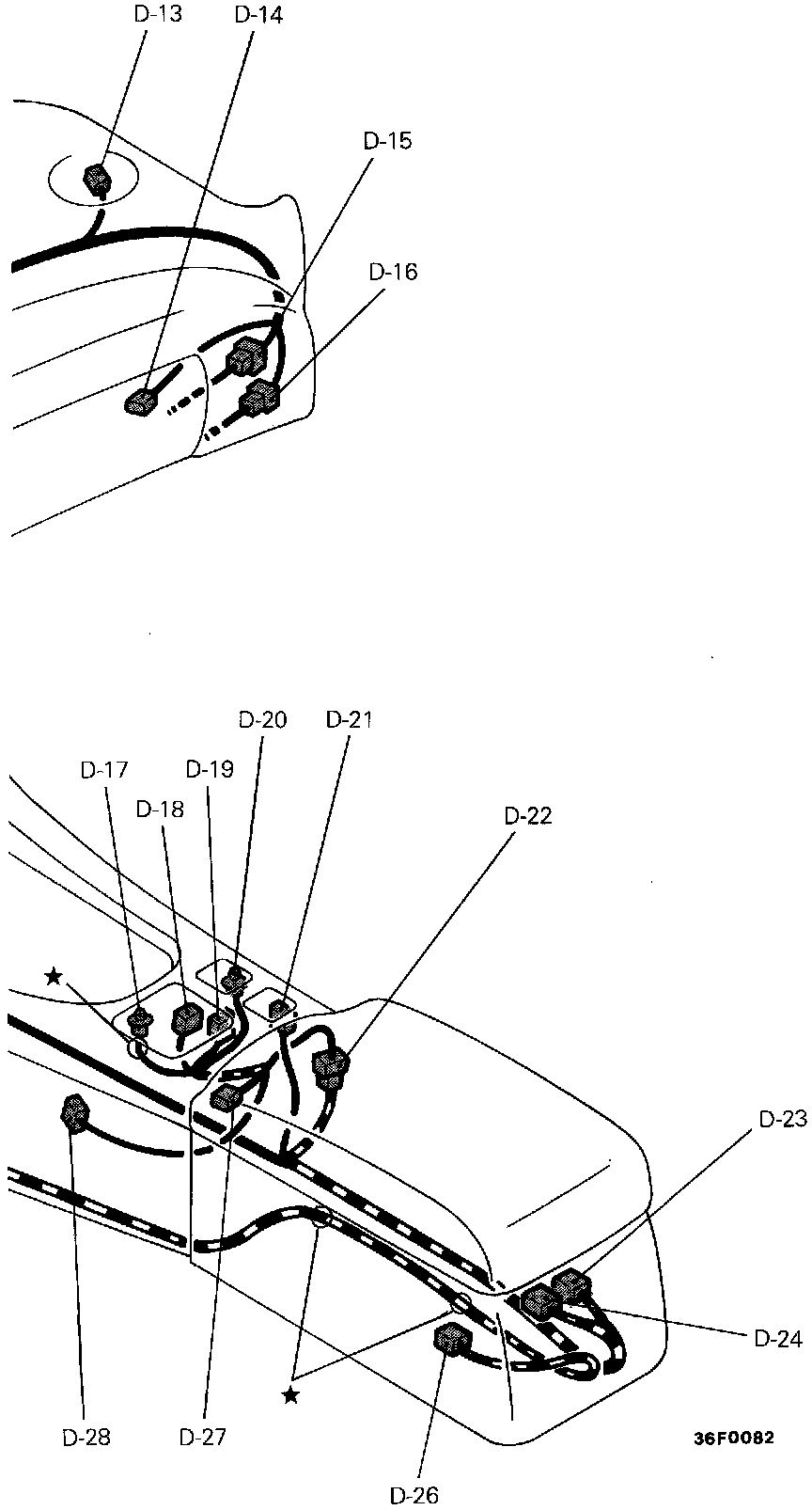

D Connectors - Instrument Panel & Floor Console (Part 2 Of 2):

D-O1 Fog light switch
D-02 Front speaker (LH)
D-03 Combination meter
D-04 Combination meter
D-05 Combination meter
D-06 Defogger switch and ECS switch
D-07 -
D-08 Hazard switch
D-09 Combination gauge
D-10 Diode (for 4WS fluid level warning light circuit)
D-11 Glove box illumination light
D-12 Photo sensor
D-13 Front speaker (RH)
D-14 Glove box illumination light switch
D-15 Instrument panel wiring harness and control wiring harness combination
D-16 Instrument panel wiring harness and body wiring harness (RH) combination
D-17 Ashtray illumination light
D-18 Cigarette lighter
D-19 Cigarette lighter
D-20 Cigarette lighter illumination light
D-21 Power seat switch
D-22 Body wiring harness (LH) and console wiring harness combination
D-23 SRS diagnosis unit
D-24 SRS diagnosis unit
D-25 -
D-26 SRS diagnosis unit
D-27 ABS G sensor
D-28 Parking brake switch
D-29 _
D-30 Accessory socket
D-31 Accessory socket
D-32 Auto-cruise main switch
D-33 Seatbelt warning buzzer
D-34 Radio
D-35 Radio
D-36 Radio
D-37 Rear wiper and washer switch
D-38 Active exhaust switch
D-39 Remote-control mirror switch
D-40 Rheostat
D-41 Instrument panel wiring harness and body wiring harness (LH) combination
D-42 Instrument panel wiring harness and body wiring harness (LH) combination
D-43 Instrument panel wiring harness and body wiring harness (LH) combination
D-44 Instrument panel wiring harness and adapter wiring harness combination
D-45 Instrument panel wiring harness and front wiring harness combination
D-47 Radio

Remarks
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. "-" means that the connector with code-number is not used.
