Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> System Diagram >> Part 3 of 3

Part 3 of 3

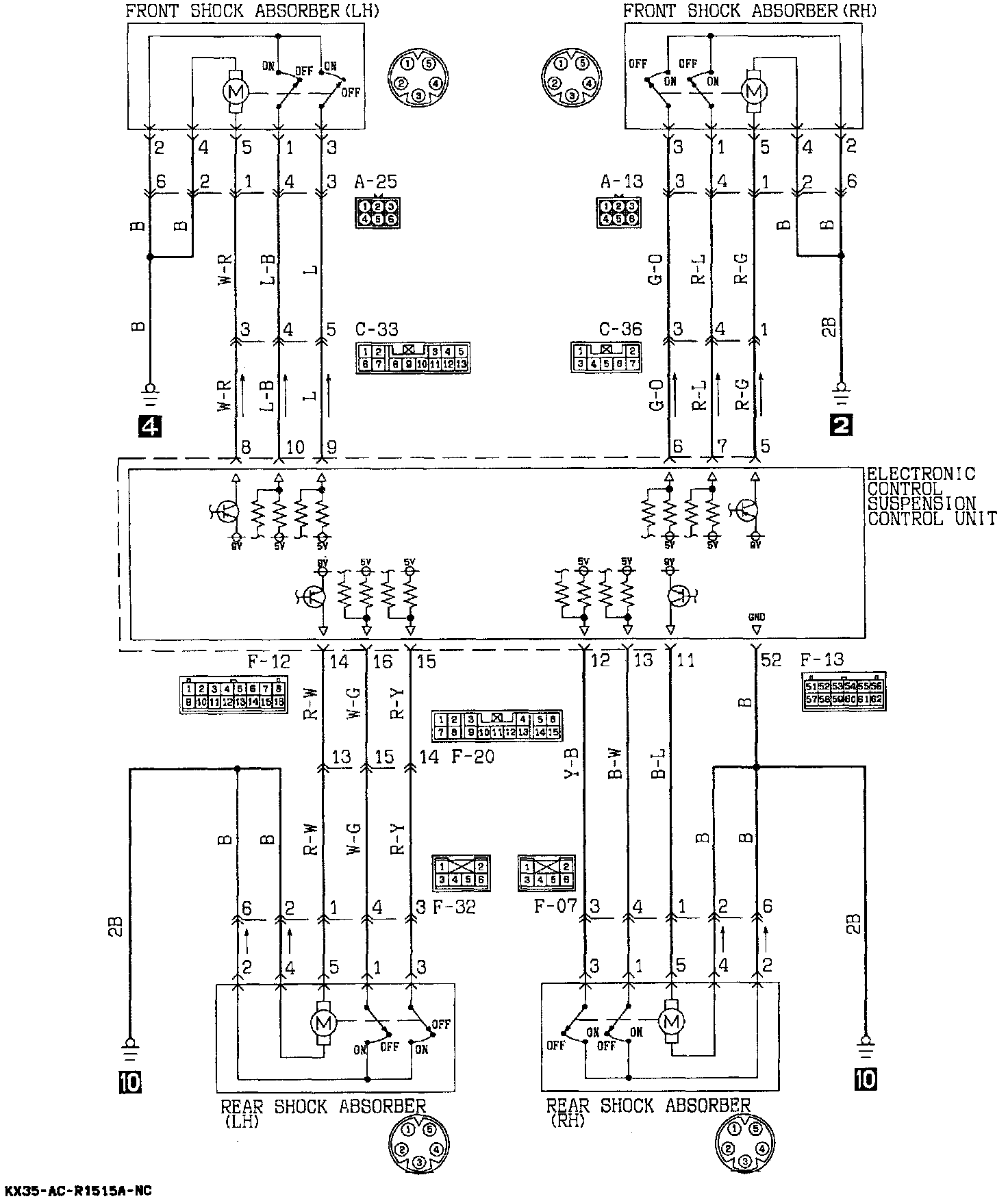

Fig.1 ECS Wiring Diagram 3/3:



Electronic Control Suspension (ECS) Circuit (Part 3 Of 3):
