Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Suspension Control Module >> Federal and Canada >> Part 4 of 4

Part 4 of 4

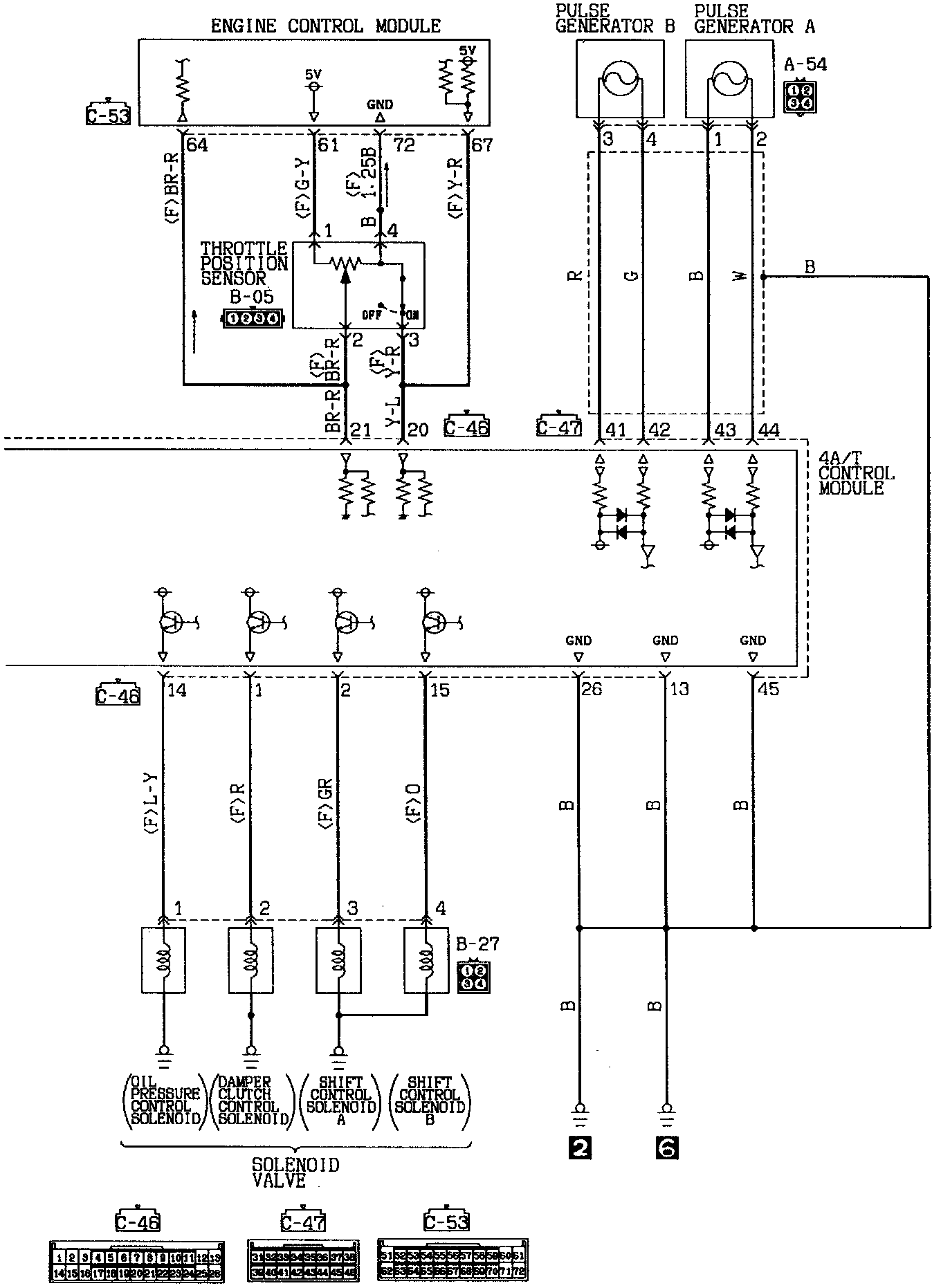

ELC-4 A/T Circuit (Federal & CANADA) (Part 4 Of 4):
