Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Manual A/C

Manual A/C

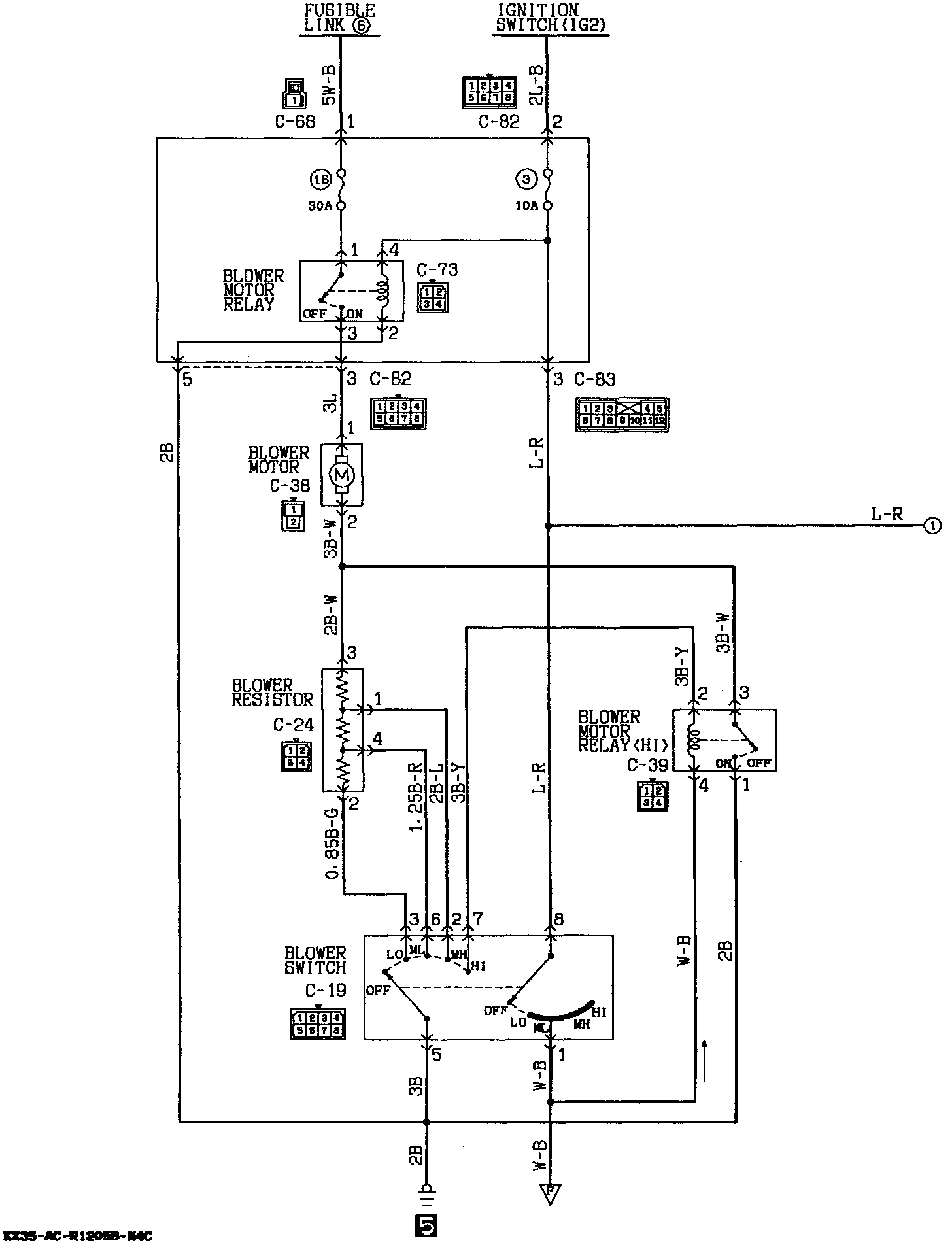

California, Manual A/C, Turbo, DOHC Non-Turbo, Part 1 Of 6:

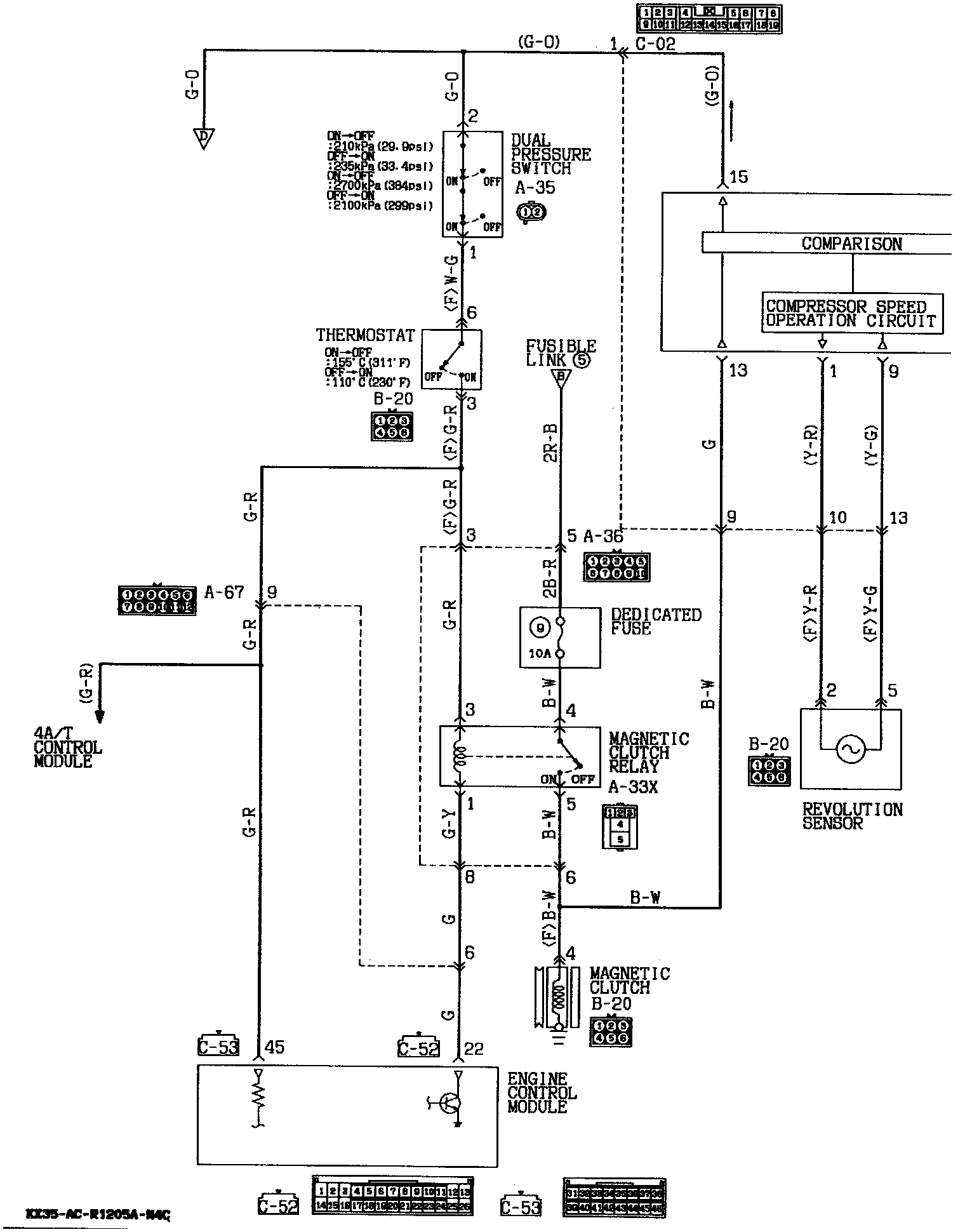

California, Manual A/C, Turbo, DOHC Non-Turbo, Part 2 Of 6:

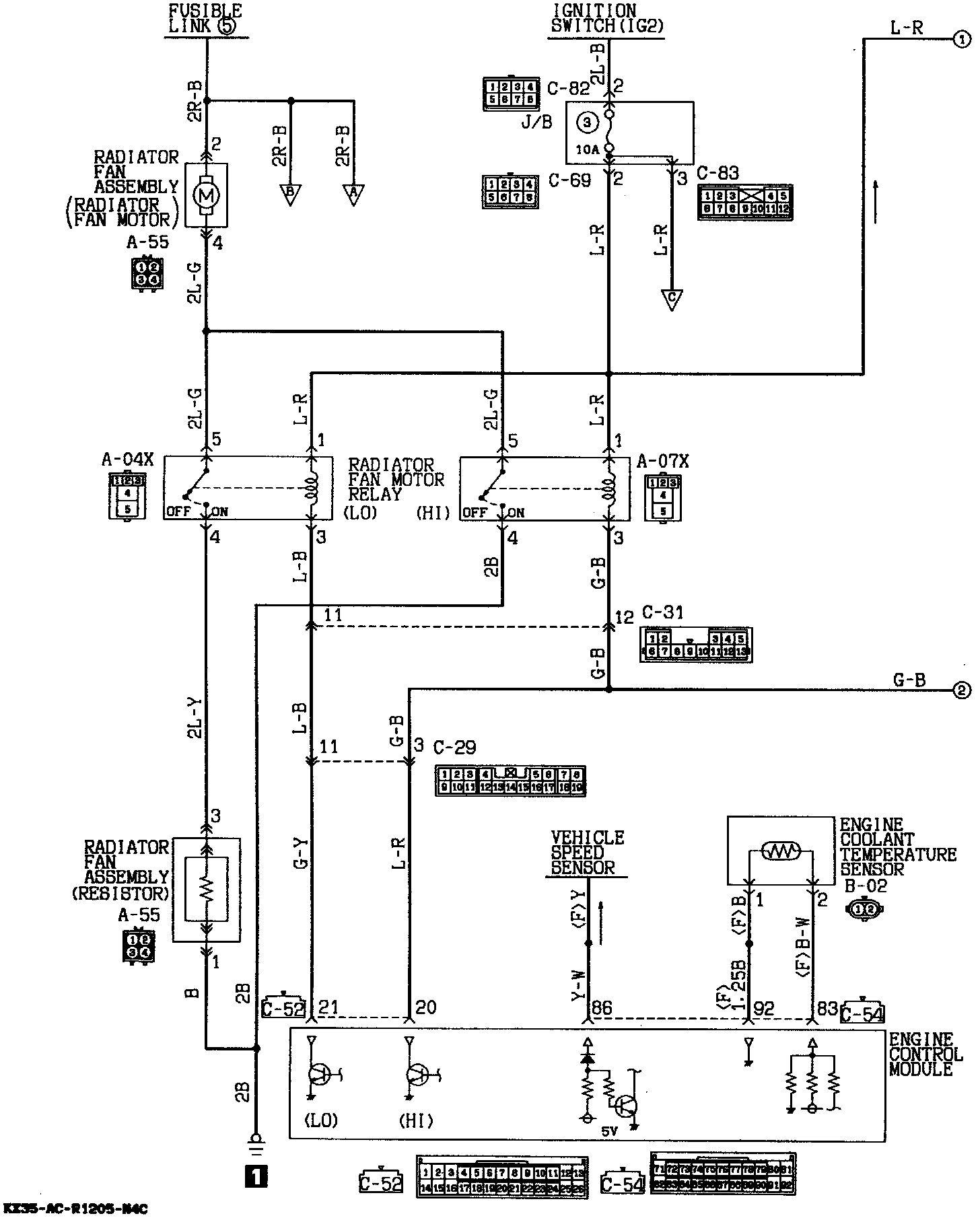

California, Manual A/C, Turbo, DOHC Non-Turbo, Part 3 Of 6:

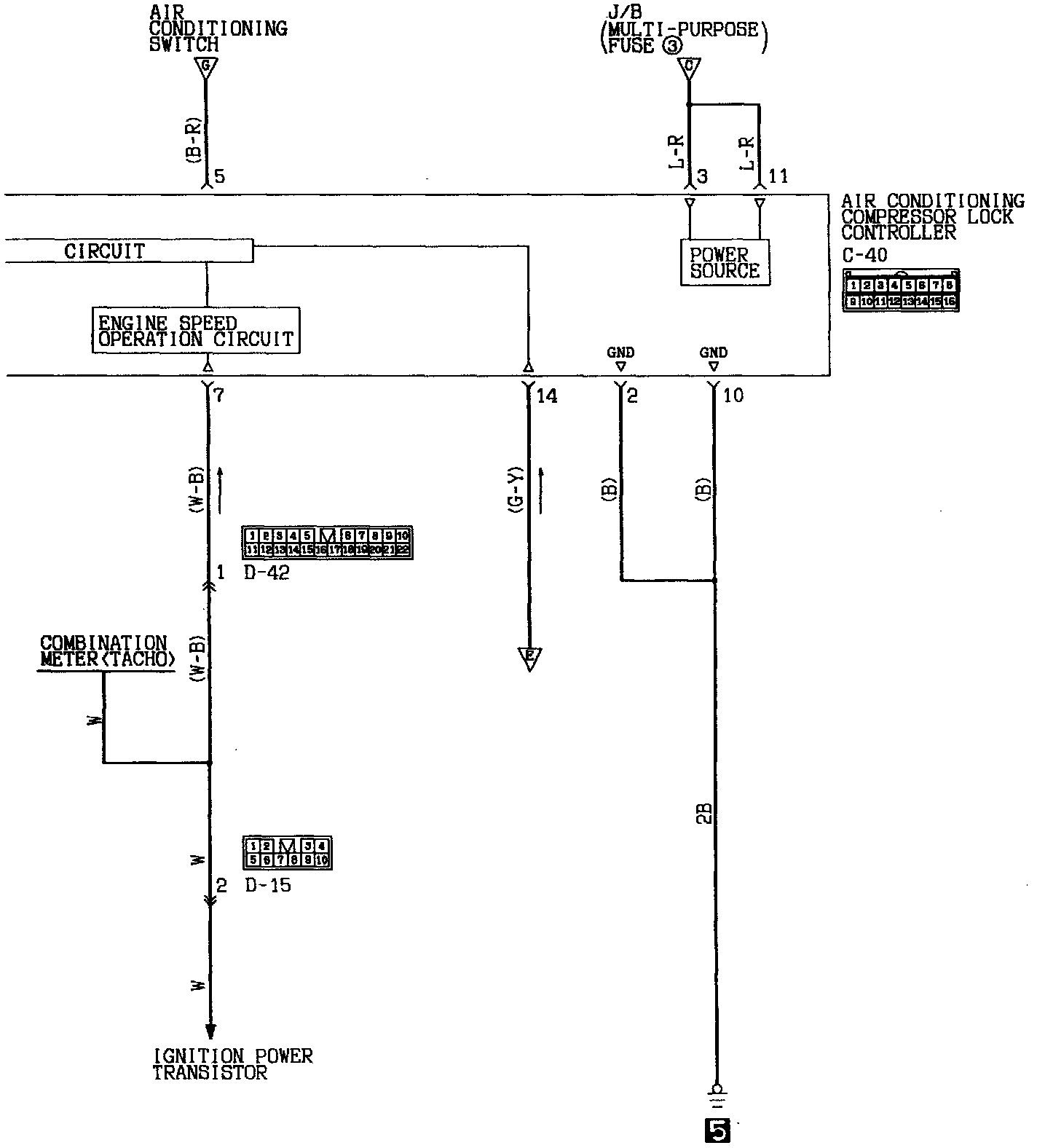

California, Manual A/C, Turbo, DOHC Non-Turbo Part 4 Of 6:

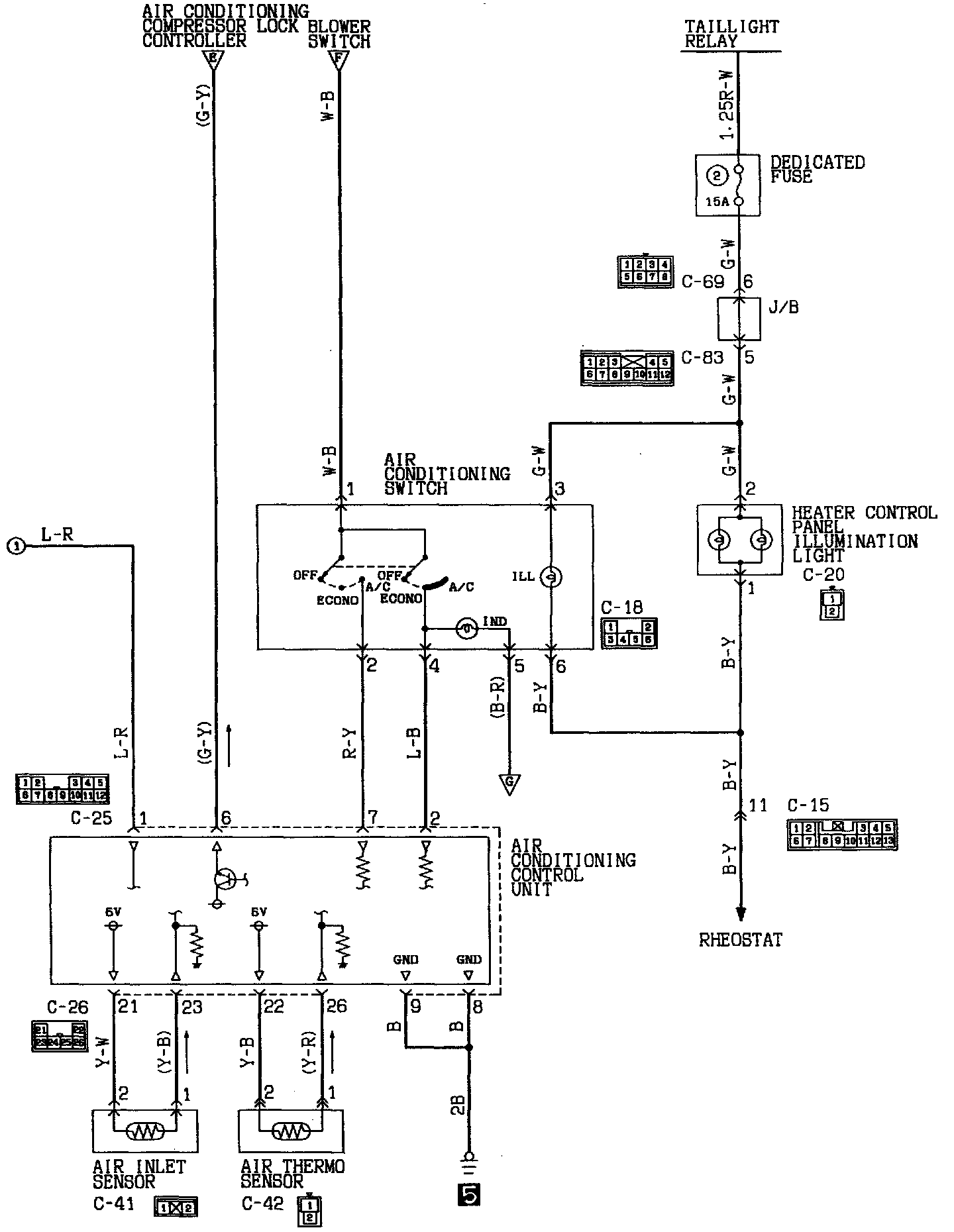

California, Manual A/C, Turbo, DOHC Non-Turbo, Part 5 Of 6:

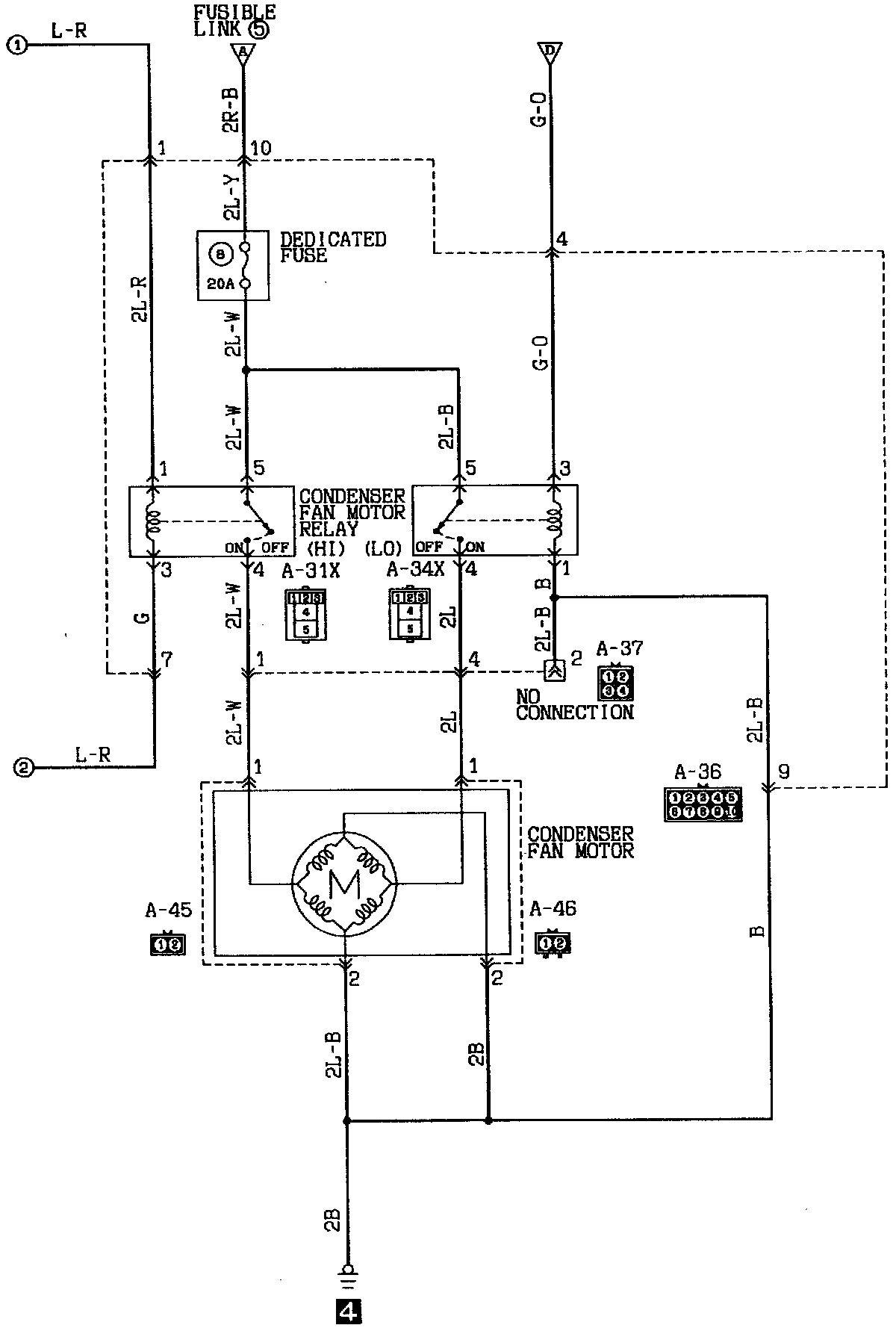

California, Manual A/C, Turbo, DOHC Non-Turbo Part 6 Of 6:
