Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> System Diagram >> Dome Light, Foot Light, Ignition Key Light Circuit

Dome Light, Foot Light, Ignition Key Light Circuit

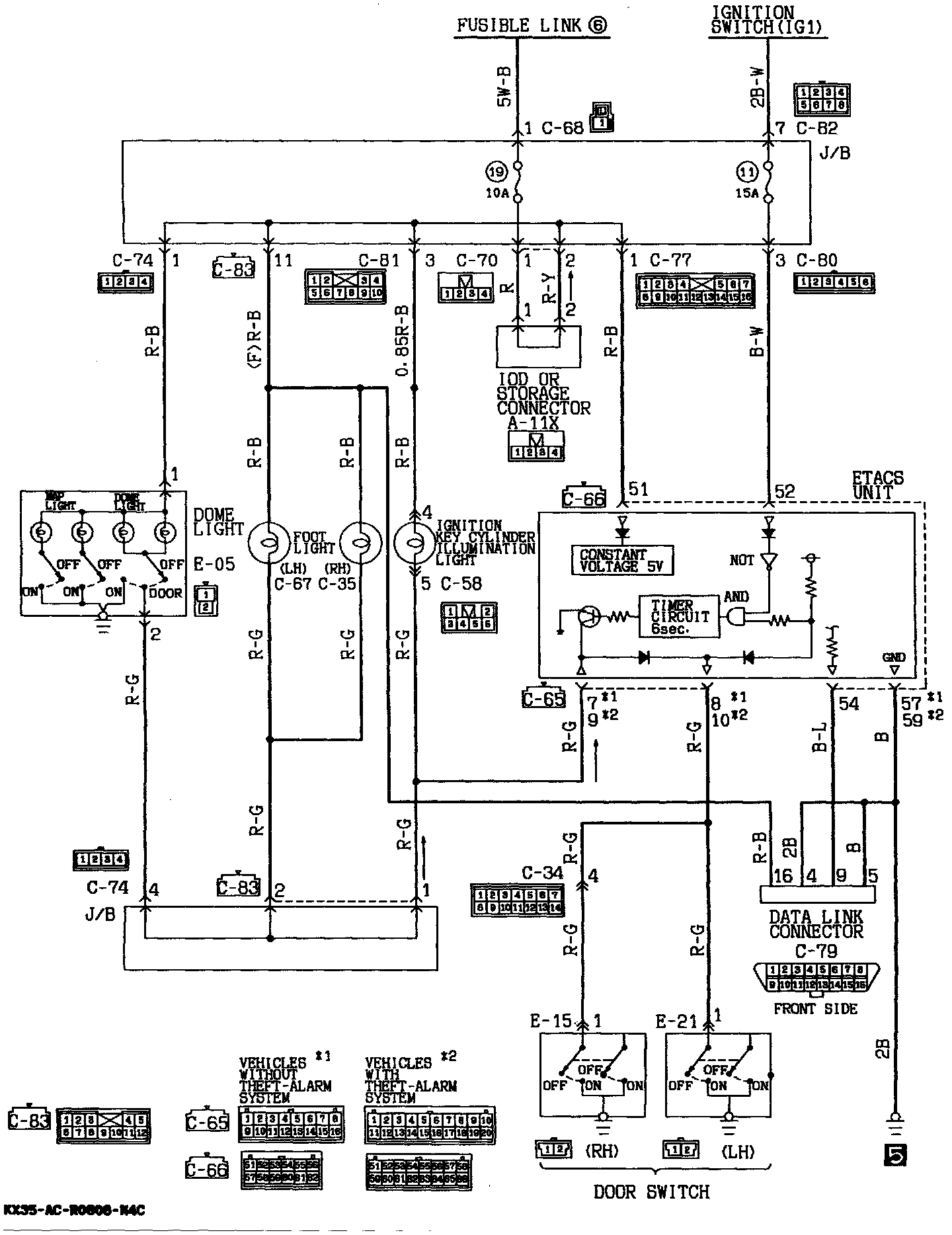

Dome Light, Foot Light, Ignition Key Cylinder Illumination Light Circuit:
